Function
Function
Strong anti loosening ability: The spring washer compensates for the loosening caused by bolt relaxation, thermal deformation, and vibration through its elasticity, thereby enhancing the stability of the connection.
Simple structure and low cost: Compared with some locking devices, stop pins, etc., spring washers have a small volume, easy installation, and low cost.
Good compatibility: When used with standard bolts (such as M12 bolts), it has a high degree of standardization and is easy to replace and repair.
Suitable for harsh environments: In agricultural equipment and construction machinery with high vibration and harsh working conditions, spring washers perform better under vibration loosening conditions.
Easy maintenance: Installation or replacement is relatively fast, no complex tools are required, suitable for on-site maintenance
Technical Parameters

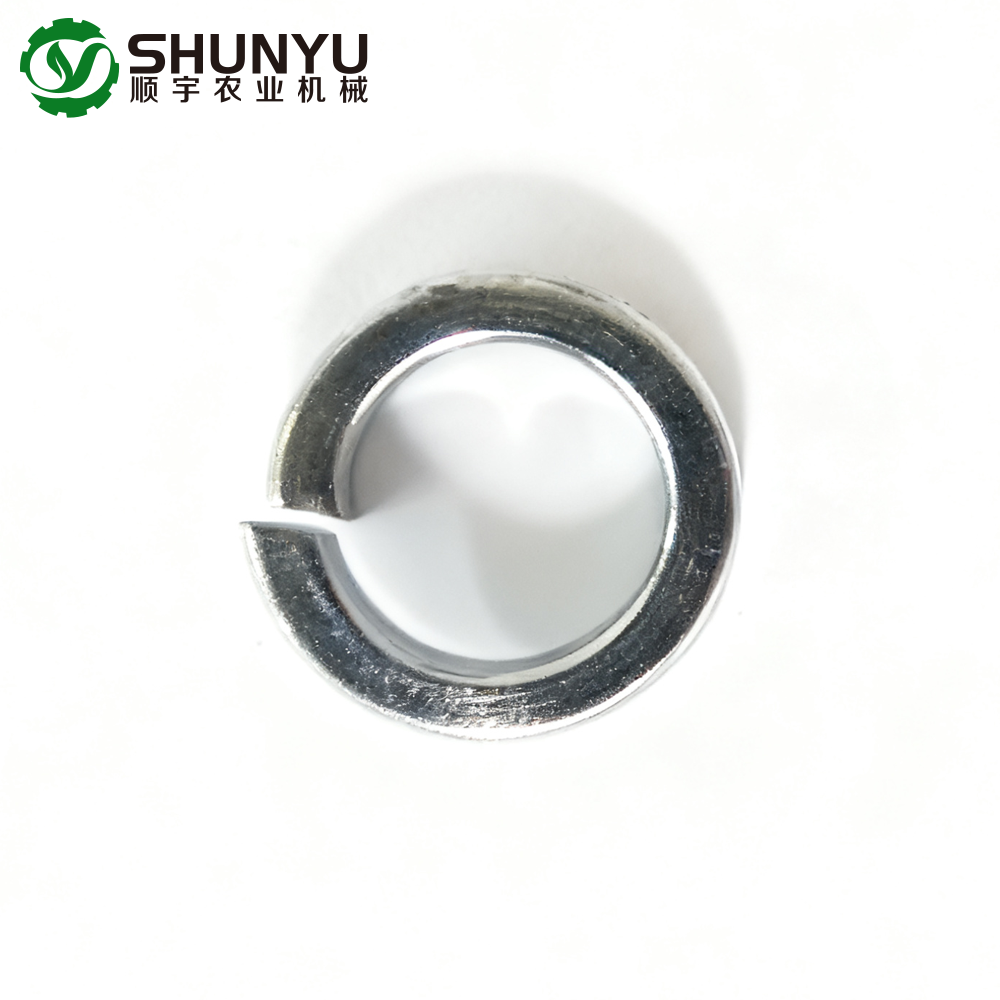

Spring washer
| ITEMS | DESCRIPTION |
| Standard number | GBT93-12-A3L |
| Size(mm) | The inner diameter should be compatible with M12 bolts |
| Application | Suitable for multiple LOVOL models (such as AF108/RG108) |
Product Uses
Spring washers are mainly used at bolt connections as a locking and anti loosening washer. They provide additional elasticity and "clamping force" when the bolt is subjected to vibration, load changes, thermal expansion and contraction, thereby reducing the risk of bolt loosening due to vibration.
In LOVOL's parts list, for example, in half shaft assembly, accessories such as "GBT93-12-A3L Standard Spring WASHER" and "GBT5783-M12 × 30-8.8-A3L hex head bolt" are listed together.
lovol.center
Due to the harsh conditions such as vibration, impact, sediment, and moisture experienced by agricultural machinery equipment (such as AF108/RG108) in the field environment, spring washers are particularly important as anti loosening components
Product Operate Guide
Installation and usage suggestions
During installation, it is recommended to use spring washers in conjunction with M12 bolts (inner diameter matching) to ensure that the surfaces of the bolts, nuts, and washers are clean, rust free, and deformation free.
After tightening the bolt to a certain torque, check whether the spring washer is fully compressed and fits the connection surface to avoid misalignment.
When repairing or replacing bolted connections, replace the spring washers as their elasticity will decrease with use.
If the bolted connection is frequently exposed to water, mud, or corrosive environments, it is recommended to choose spring washers with galvanized or other anti-corrosion treatments.
When replacing, pay attention to the elastic state of the new gasket material, without cracks or deformations; Before installation, a slight visual inspection can be conducted
