Product Advantage

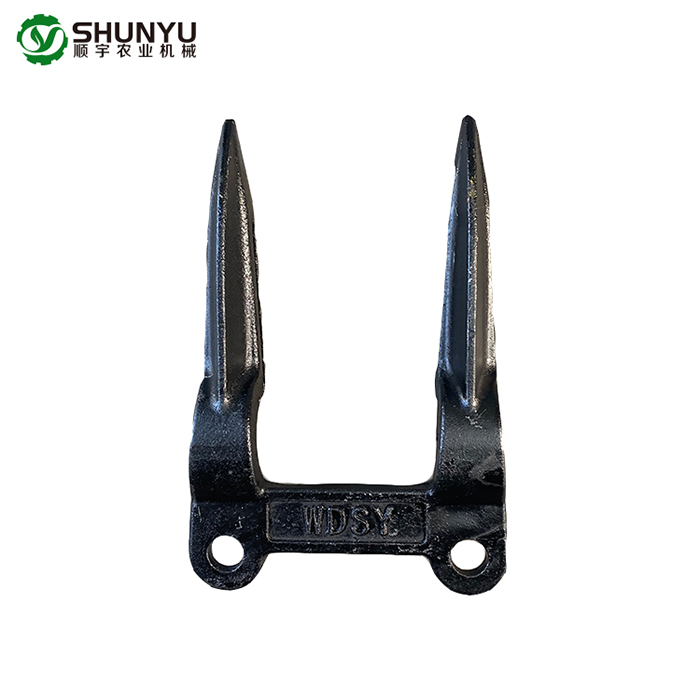

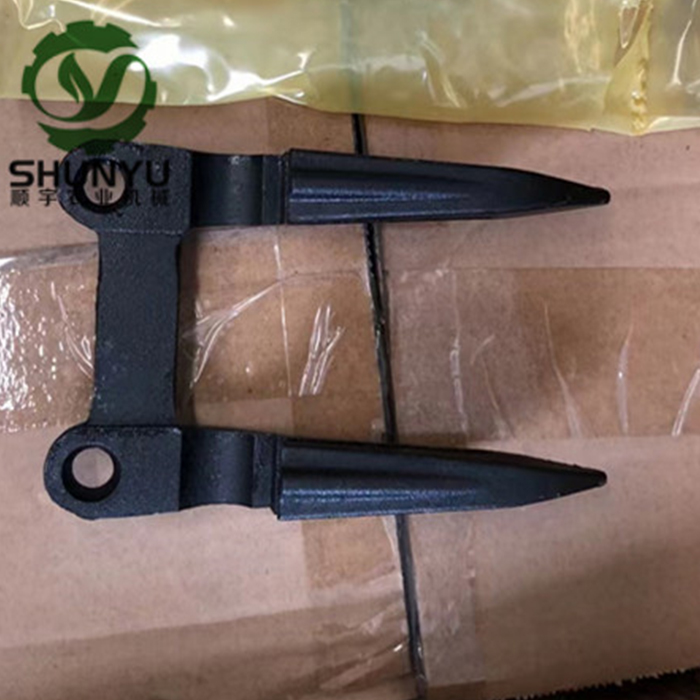

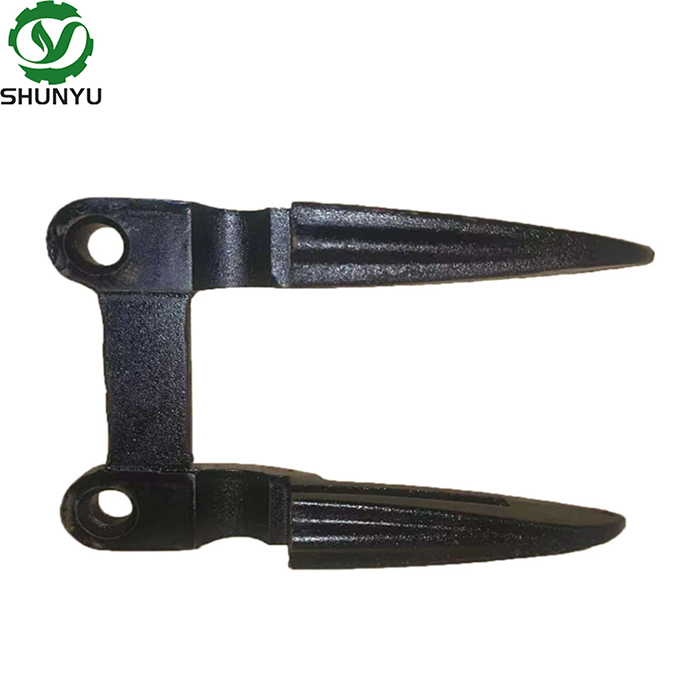

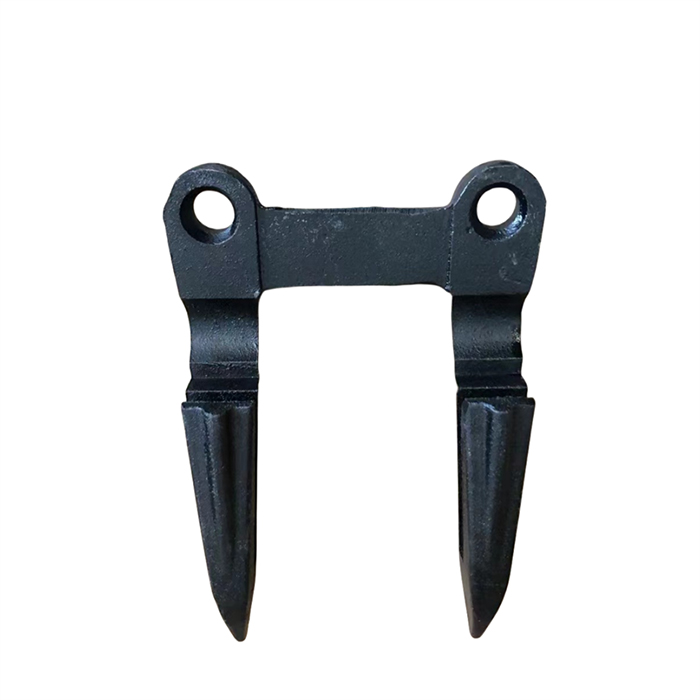

The Wear-Resistant Harvester Blade Guard B is engineered to deliver exceptional mechanical performance and structural reliability for harvester cutting systems. As a critical component in agricultural machinery, its primary role is to ensure the stable and efficient operation of the moving blade. By integrating precise guidance, robust protection, and firm support, this blade guard significantly enhances cutting efficiency while minimizing mechanical failure rates. For purchasing managers and equipment manufacturers, selecting a highly durable blade guard is essential for reducing long-term operational costs, lowering maintenance frequency, and ensuring continuous performance during intensive harvesting operations.
|
|
|
Guidance function Ensure that the moving blade maintains the correct trajectory during the reciprocating cutting process and avoids the blade swinging left and right. Improve the stability and cutting flatness of the cutter. | protective effect Prevent the blades from directly colliding with hard objects such as rocks and soil during crop harvesting. Reduce the wear of blades and tool holders, and extend their service life. | Support and compression Provide support and compression for the blade to prevent it from shaking or lifting during operation. Create a reliable "cutting pair" between the blade, finger guard, and moving blade to improve cutting efficiency. " |
Technical Parameters
The Blade Guard B is a critical harvester cutting system part crafted from high-strength alloy steel and enhanced with wear-resistant treatments, including quenching, to withstand the rigors of agricultural cutting operations. This cutter protection component features a streamlined, precision-engineered design that fits seamlessly between the harvester’s blade and tool holder, ensuring optimal alignment and force distribution. As an authentic WORLD 4LZ-6.0P harvester accessory, it adheres to strict dimensional standards, guaranteeing compatibility with the original equipment without the need for modifications. The blade guard’s robust construction balances durability and lightweight performance, reducing strain on the cutting system while providing reliable protection and guidance.
| ITEMS | DESCRIPTION |
| Code | W2.0-01-01-03G-04 |
| Size(mm) | 155*105*40 |
| Weight(kg) | 0.55 |
Product Uses
Agricultural environments are inherently unpredictable, heavily influenced by seasonal weather changes and varying soil types. The Wear-Resistant Harvester Blade Guard B is engineered to maintain operational stability across these diverse and demanding terrains. Whether navigating through parched, dry fields that generate abrasive dust, or maneuvering in wet, muddy paddies typical of rice cultivation, this component ensures continuous harvesting without interruption. Farmlands often present unexpected obstacles such as hidden rocks, thick soil clumps, and tough, fibrous crop residues. In these challenging conditions, the guard acts as a critical protective barrier, ensuring the harvester operates smoothly and preventing costly downtime caused by sudden impacts with field debris.
Harvesting efficiency heavily relies on the adaptability of the agricultural equipment to different crop conditions and growth stages. This blade guard is highly suitable for collecting staple grains like rice, wheat, and other similar cereal crops. It proves particularly effective when dealing with lodged crops—plants that have bent or fallen over due to harsh winds or heavy rain. Harvesting lodged crops typically requires highly precise blade control to pick up the stalks without missing them or scooping up excess dirt. Additionally, in densely planted fields where the cutting volume is exceptionally high, the guard ensures that the cutting mechanism processes the stalks cleanly and efficiently. By facilitating flat, clean cuts, it helps maximize the overall crop yield and minimizes agricultural waste during the collection process, ensuring every possible grain is successfully harvested.
Designed specifically for direct integration with the WORLD 4LZ-6.0P combine harvester, this guard is an indispensable component for large-scale farming operations and commercial agricultural enterprises. Farmers and agricultural contractors managing extensive tracts of land rely on the WORLD 4LZ-6.0P combine harvester for its reliable daily performance. Equipping this specific machine with the Wear-Resistant Harvester Blade Guard B further elevates its field efficiency and reliability. The optimized compatibility ensures that the harvesting machinery operates at high efficiency, allowing agricultural professionals to complete their seasonal harvesting tasks swiftly, even within tight weather windows before the rainy season begins.
Beyond immediate cutting performance, the integration of this specialized guard delivers substantial long-term economic benefits for farm management. By significantly reducing the rate of blade wear and minimizing the risk of severe damage during intensive field operations, it directly extends the overall service life of the entire cutting system. Agricultural machinery maintenance can be both time-consuming and highly expensive, particularly during the peak harvest season when any equipment downtime translates directly to lost revenue and delayed schedules. Utilizing this durable guard lowers the frequency of emergency part replacements and routine maintenance requirements. Ultimately, this optimizes operational costs, maximizes the return on investment for the machinery, and ensures that the combine harvester remains highly productive throughout the most critical and demanding periods of the farming calendar.
Product Operate Guide
Proper installation of the Wear-Resistant Harvester Blade Guard B is critical for ensuring precise cutting performance and preventing mechanical failure. Follow these step-by-step instructions to securely mount and align the component:
Preparation: Before beginning the installation, ensure the harvester engine is completely turned off, the key is removed, and the cutting header is safely supported. Clean the mounting area on the tool holder to remove any dirt or old crop residue.
Mounting the Guard: Position the Blade Guard B securely onto the tool holder or finger guard. Insert the appropriate mounting bolts and hand-tighten them initially. Ensure the guard aligns perfectly with the moving blade to form a correct and efficient “cutting pair.”
Gap Adjustment: The clearance between the guard and the knife section must be adjusted to the optimal range specified for your machine. If the gap is too large, crop stalks may fold instead of being cut, compromising precision. Conversely, a gap that is too tight will cause excessive friction, leading to overheating, accelerated wear, and potential jamming of the cutter bar.
Final Verification: Use standard feeler gauges to verify the clearance across the entire length of the guard. Once the correct gap is set, tighten all bolts to the recommended torque specifications. Manually rotate the drive mechanism to move the blade back and forth; the movement should be smooth and completely unobstructed without any binding.
Implementing a strict maintenance schedule for the Blade Guard B will help prevent unexpected downtime during critical harvesting windows. Incorporate the following practices into your daily and weekly routines:
Visual Inspections: Conduct a thorough visual check of the guard before each shift. Look closely for signs of severe wear on the ledger plates, structural deformation, or hairline cracks caused by impact. If any structural damage is detected, replace the guard immediately to prevent secondary damage to the knife sections or cutter bar drive.
Cleaning Procedures: At the end of each working day, clean the guard and the surrounding cutting assembly. Remove accumulated weeds, sticky crop sap, hard residue, and mud. Material buildup can force the blade away from the guard, altering the cutting gap and increasing the load on the drive system.
Lubrication: Apply appropriate agricultural-grade lubrication to the contact points between the blade and the guard as required by operating conditions. Proper lubrication reduces metal-on-metal friction, minimizes heat generation, and ensures smooth linear movement during extended harvesting sessions.
Hardware Checks: Regularly check the tightness of all mounting bolts and nuts. The constant vibration of the harvester can cause hardware to loosen over time, which may lead to misalignment and poor cutting performance.
To maximize the effectiveness of the Blade Guard B and extend the service life of the entire cutting assembly, operators should adhere to specific field practices:
Active Monitoring: While harvesting, continuously monitor the cutting system. Listen for unusual grinding noises or excessive vibrations, which are often the first indicators of misalignment, a loose guard, or a bent blade.
Obstacle Avoidance: Avoid forcing the harvester header through dense, woody debris, large rocks, or uneven ground mounds. Direct impacts with solid obstacles can permanently bend or break the guard. If an impact occurs, stop the machine immediately and inspect the component before resuming work.
Speed Adjustment: Adjust the forward ground speed of the harvester according to crop density, moisture levels, and field conditions. Pushing the machine too fast through heavy or lodged crops can overload the cutting system, causing the blades to jam against the guards.
Emergency Protocols: If you detect a sudden drop in cutting efficiency or notice crop bunching at the cutter bar, halt operation promptly. Disengage the header drive, turn off the engine, and investigate the issue. Clearing blockages or realigning a shifted guard immediately prevents more extensive mechanical failures.
