Function
Function
|
|
|
|
In walking tracks or support wheel structures, one or both ends of the support wheel axle/hub are often equipped with "end caps" for: | Seal the interior of the wheel hub bearing compartment or wheel shell to prevent soil, water, and rice straw residue from entering. | Support or fix the bearing and hub structure to ensure the correct fit and positioning of the supporting wheel on the shaft. | Cooperate with oil seals, bushings, bearings and other components to form a complete load-bearing wheel assembly |
Technical Parameters

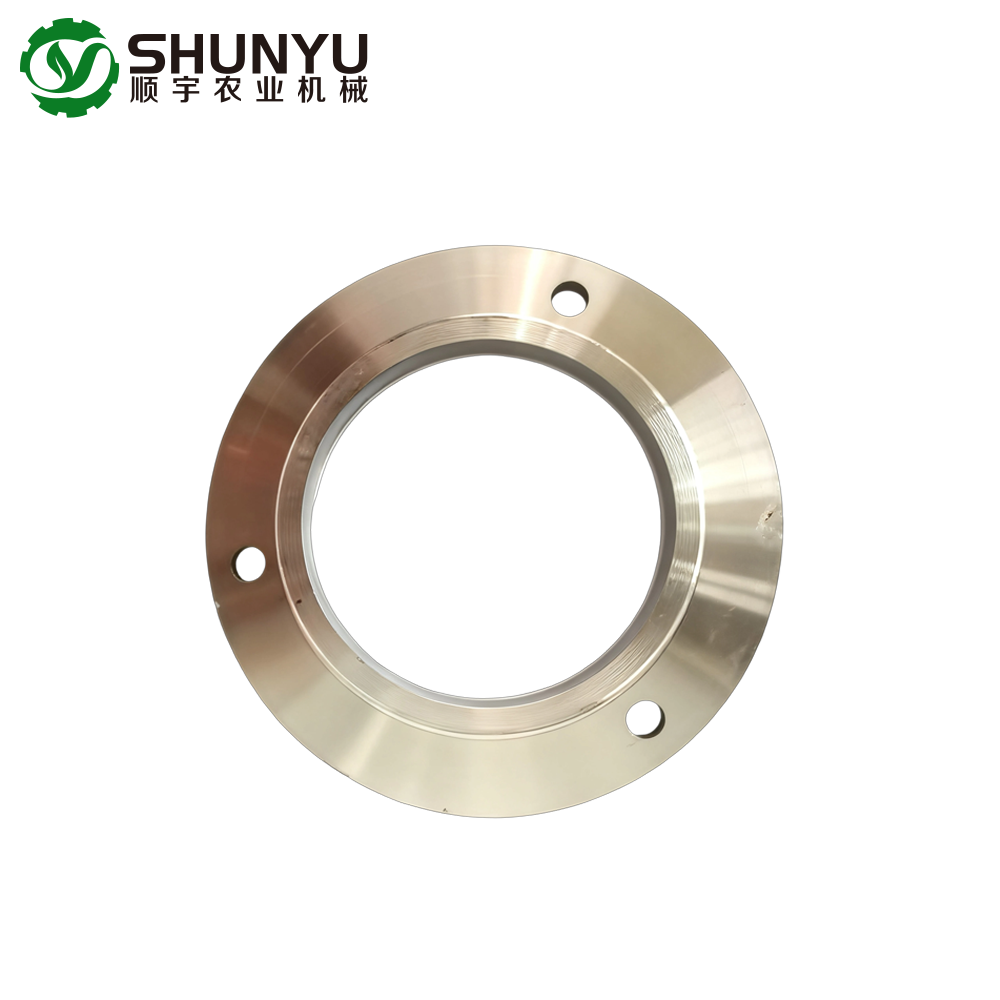

Supporting Wheel End Cover
| ITEMS | DESCRIPTION |
| Code | RVO1401090004 |
| Size(mm) | 72mm |
| Application | LOVOL AF108/RG108 series harvester |
Product Uses
The walking system (track chassis part) of the Lovol tracked harvester AF108/RG108.
It is an important protective component installed at both ends of the supporting wheel (also known as the load-bearing wheel or support wheel)
Product Operate Guide
Installation inspection: After installing the end cap, check for slight bearing runout, excessive clearance, debris on the sealing surface of the end cap, and abnormal clearance between the outer shell and the wheel housing mating surface. If any abnormalities are found, they should be dealt with promptly
