Product Advantage

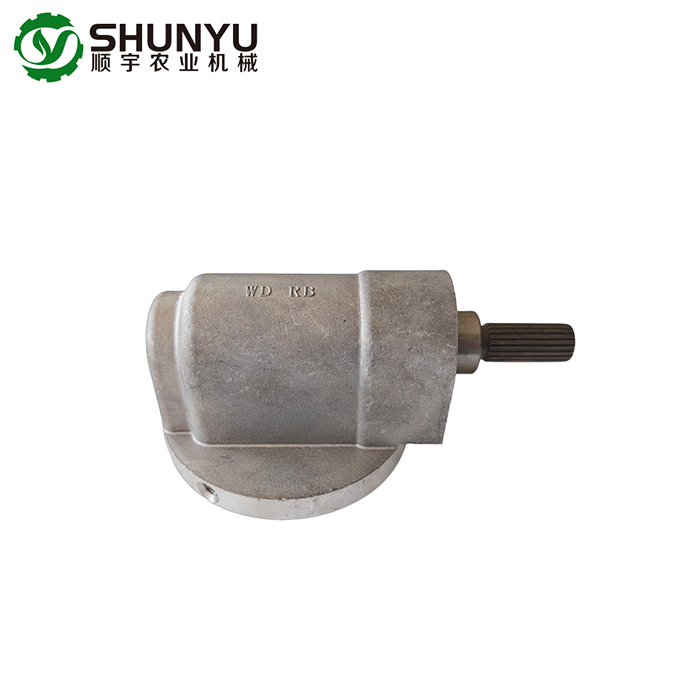

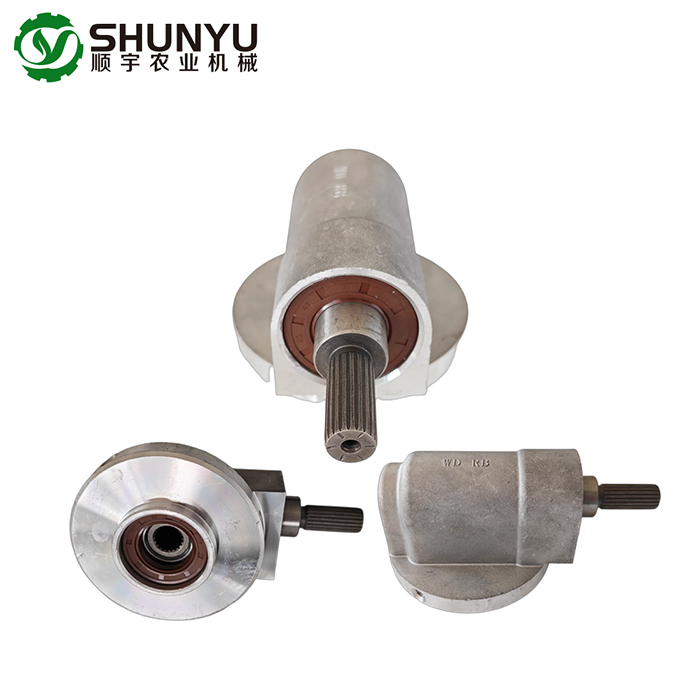

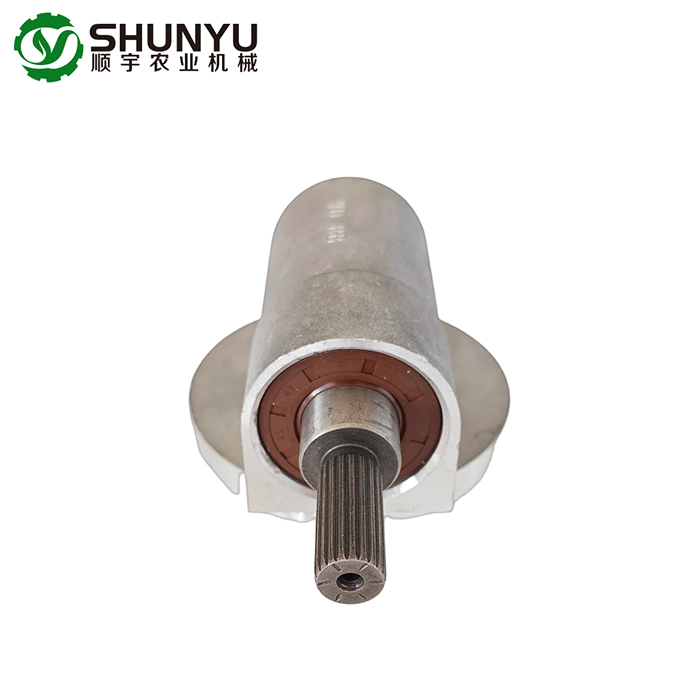

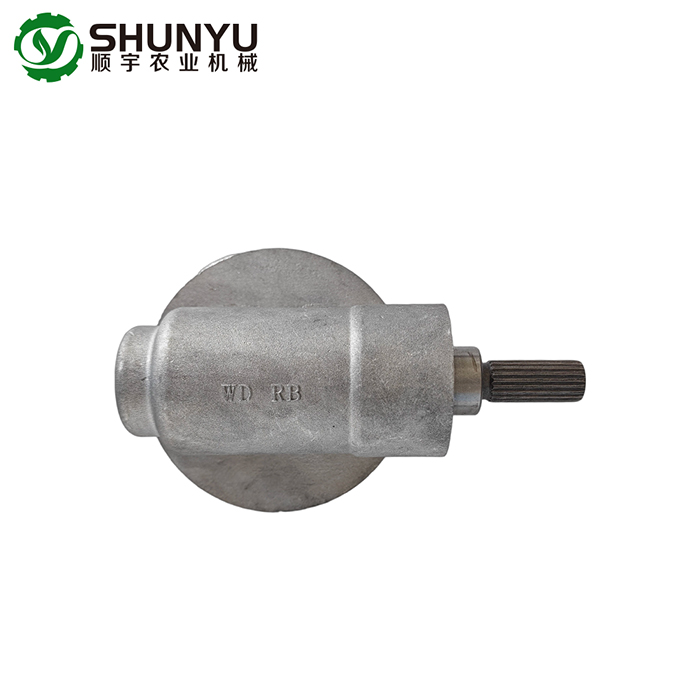

The Impurity Gearbox Assy W2.5-02-02-11-01-09-00 is a precision-engineered harvester gearbox designed for FM WORLD harvesters. As a key component of grain harvester cleaning systems, this impurity gearbox assy transmits power to impurity removal mechanisms, ensuring efficient separation of grains from debris. It is an essential combine harvester part that enhances crop quality and reduces grain loss during harvesting.
|
Specifically, in the models of the Wode, the main functions of the Impurity Gearbox include Receive torque from the main power output or auxiliary output (possibly from the harvester's main gearbox or power output shaft) Allocate this power to the vibrating mechanism of the cleaning screen, the impurity removal screw, the fan or the conveying mechanism, in order to separate/discharge impurities (grass, straw tails, dust, crushed stones) and grains in the grain Ensure stable speed and torque of the cleaning system under different operating conditions, thereby improving impurity removal efficiency, reducing grain loss, and ensuring the quality of grain cleaning In terms of design, it is necessary to adapt to the field environment: frequent vibration, dust, humidity, and particle impact may all pose challenges to the gearbox“ |
Technical Parameters
This cleaning system gearbox features a compact, lightweight design optimized for integration into FM WORLD harvesters’ cleaning and impurity removal subsystems. It is constructed with high-strength materials that resist wear, vibration, and corrosion—critical for withstanding the harsh conditions of agricultural operations. The gearbox incorporates precision-machined gears that ensure smooth power transmission, with a design that allocates torque to vibrating screens, impurity removal screws, and centrifugal fans. It includes sealed bearings and robust seals to prevent lubricant leakage and protect internal components from dust, moisture, and crop residues. The gearbox’s modular structure allows for easy installation and maintenance, with compatibility with existing harvester power output systems. It operates at stable speeds under varying loads, ensuring consistent impurity removal performance across different harvesting scenarios.
| ITEMS | DESCRIPTION |
| Code | W2.5-02-02-11-01-09-00 |
| Size(mm) | 160*110*90 |
| Weight(kg) | 1.4 |
Product Uses
Integrated into the cleaning system of combine harvesters, this impurity gearbox assy drives vibrating screens and air selection devices. It separates impurities—such as stems, roots, stones, and dust—from grains, improving the purity of the harvested crop.
Designed specifically for impurity removal subsystems, the gearbox transmits power to impurity removal screws. It ensures efficient discharge of debris, preventing clogs and maintaining the flow of crops through the harvesting process.
Tailored for FM WORLD harvesters, this gearbox assy is a direct replacement for original components. It fits seamlessly into the harvester’s existing power transmission system, ensuring optimal performance without modifications.
In high-yield fields where crop density is high, the impurity gearbox assy delivers consistent performance. It handles increased volumes of crops and debris, preventing system overload and maintaining harvesting efficiency.
By ensuring thorough impurity removal, this gearbox supports green agricultural practices. It reduces waste and improves the quality of grains, making them suitable for direct use or further processing without additional cleaning steps.
Product Operate Guide
Before installing the impurity gearbox assy, inspect the mounting surface to ensure it is flat and free of debris. Check that all mounting bolts are in good condition and compatible with the gearbox. Verify the axial and radial clearance of the gearbox to ensure it meets the harvester’s specifications.
Align the gearbox with the mounting points on the harvester’s cleaning system. Secure the assembly using the recommended bolts, tightening them evenly to ensure a stable fit. After installation, fill the gearbox with the appropriate type of lubricating oil as specified in the harvester’s manual. Check the oil level to ensure it is within the recommended range, avoiding overfilling or underfilling.
During harvesting operations, monitor the gearbox for abnormal noises or vibrations. Unusual sounds may indicate bearing damage, gear meshing issues, or foreign objects entering the component. Keep an eye on the harvester’s cleaning performance—decreased impurity removal efficiency may signal a problem with the gearbox.
Regularly clean the gearbox casing and ventilation holes to remove dust, debris, and crop residues. This ensures proper heat dissipation and prevents buildup that can cause overheating. Inspect the seals regularly to prevent lubricant leakage and protect internal components from moisture and dust. Replace the lubricating oil at the recommended intervals, or after the first use if the gearbox is new or has been replaced. Store spare harvester parts in a dry, clean area to ensure they are ready for quick replacement if needed.
