Function
Function
High strength: 8.8 grade (even 10.9 grade) can withstand large tensile and shear forces, making the connection more reliable.
Fine tooth pitch: Fine teeth with a pitch of 1.5mm have better anti loosening and locking performance than coarse teeth with a pitch of 2.0mm.
Standardized specification: M12 × 1.5 × 25 is a standardized specification that is easy to purchase and replace in the market, ensuring convenient maintenance and replacement.
Good compatibility: Compliant with GB/T 5786 standard, clear specifications, easy to find and identify in the accessory list.
Adapt to harsh environments: In agricultural machinery operations, equipment is greatly affected by vibration, impact, dust, and moisture. These types of bolts can better maintain a tight state and reduce failures.
Convenient maintenance: The standard head form (hexagonal head) is easy to disassemble and assemble using conventional tools, and is suitable for the maintenance site environment.
Technical Parameters

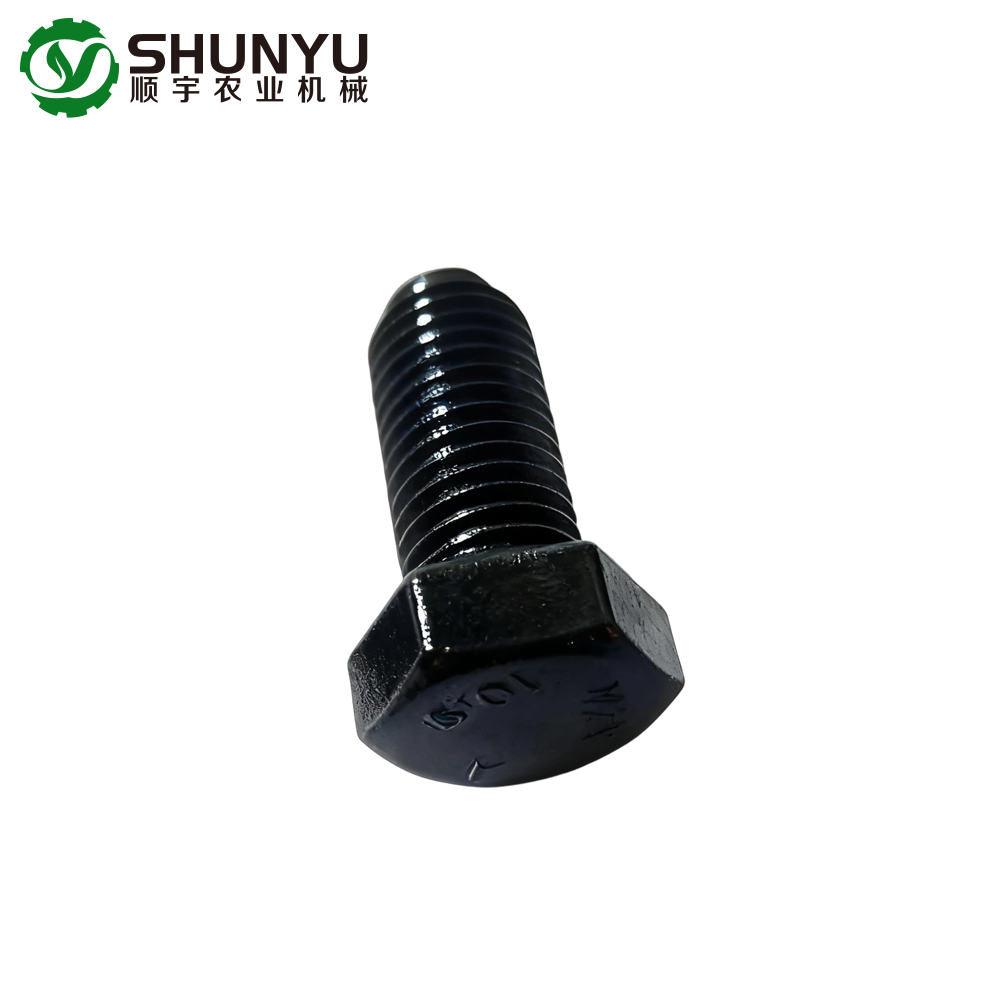

Hexagonal Head Bolt
| ITEMS | DESCRIPTION |
| Standard number | GBT5786-M12X1.5X25 |
| Size(mm) | Thread diameter: M12 (approximately 12 mm) Thread pitch: 1.5 mm (fine thread) Bolt length: 25 mm (from the lower end of the bolt head to the end of the bolt) |
| Head form | Hexagonal head (i.e. outer hexagon, installed with wrench/socket) |
| Application | Suitable for multiple LOVOL models (such as AF108/RG108) |
Product Uses
This type of bolt appears in the LOVOL parts list in the "Wheel system assembly/wheel system assembly" component, used to connect load-bearing structural components
Product Operate Guide
Installation and usage suggestions
Before installation, check the fit between the bolts and screw holes: the threads should be free of damage, mud, and corrosion, and the thread fit should be smooth.
Use appropriate torque: Determine the preload force based on the bolt diameter, grade, material, and connector material. Tightness or insufficient torque can both lead to bolt failure.
Attention to anti-corrosion treatment: If bolts are used in outdoor or humid environments, it is recommended to choose products with anti-corrosion coatings (galvanized, phosphated, or fluorine coated).
Regular inspection: Agricultural machinery has a long operating cycle and frequent vibration, and the pre tightening status, looseness or deformation of key fasteners should be checked regularly.
Replacement suggestion: If there are signs of bolt head peeling, thread damage, or fracture, it should be replaced in a timely manner. It is recommended to use a model that is consistent with the original factory specifications (M12 × 1.5 × 25, grade 8.8 or above, in compliance with GB/T 5786 standard).
The installation sequence and components should follow LOVOL's maintenance manual to ensure correct structural connections and reasonable load distribution
