Product Advantage

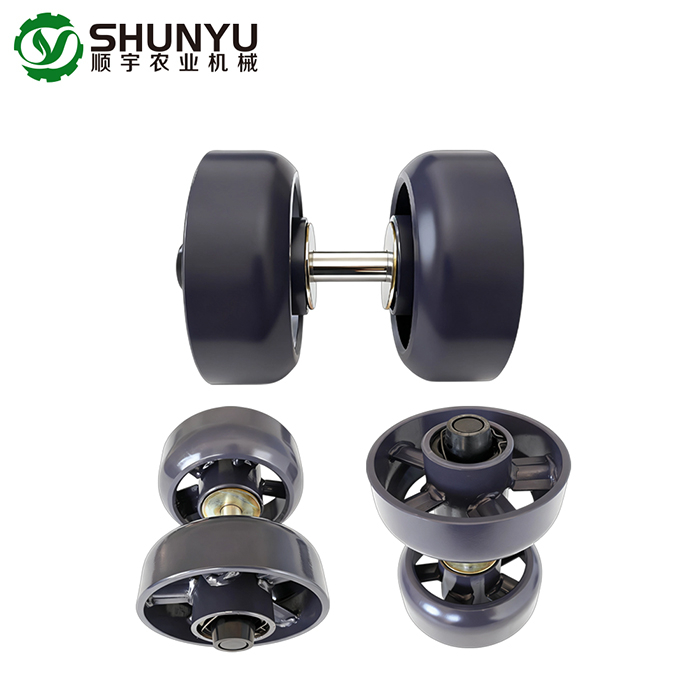

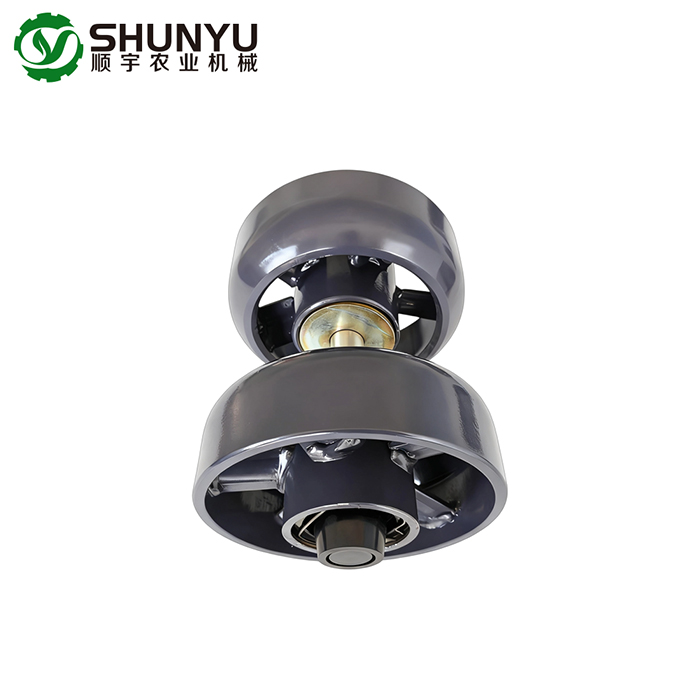

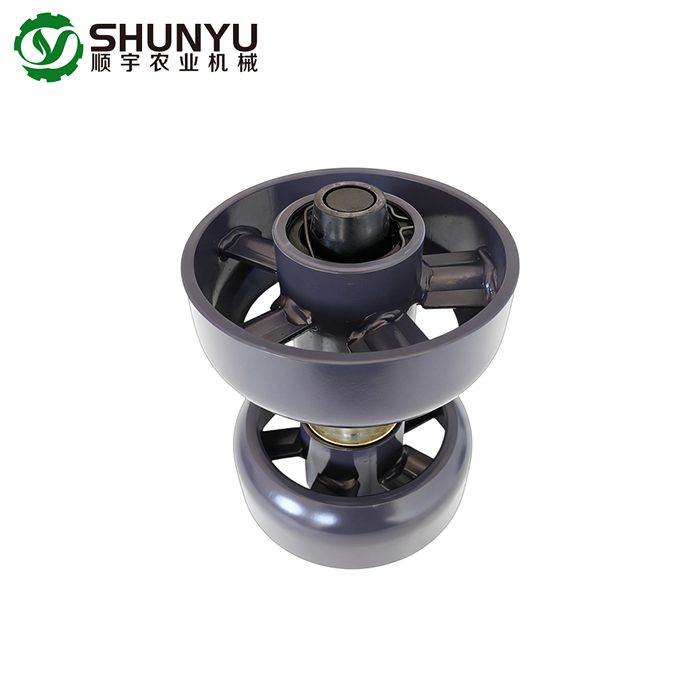

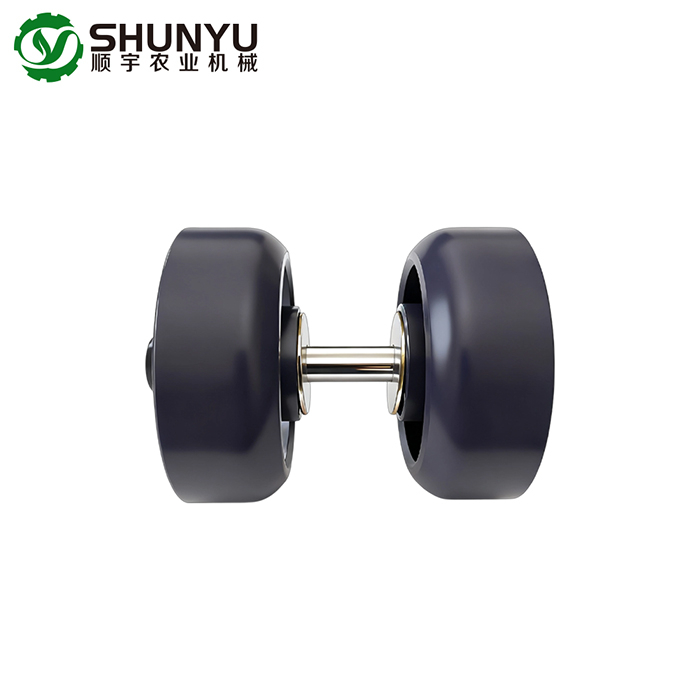

The High-Wear WORLD 6.0p/4.0e Roller Assy is engineered to deliver exceptional durability and reliability for demanding agricultural environments. By integrating premium materials with advanced manufacturing processes, this roller assembly ensures structural integrity and consistent performance under continuous stress. For purchasing managers and equipment manufacturers, selecting a resilient roller assembly is crucial to minimizing downtime and reducing long-term replacement costs. Below is a detailed breakdown of the core structural advantages and material properties that make this component a dependable choice for heavy-duty machinery.
|
|
|
Shell Generally made of high-strength forged steel or cast steel, with a surface that has undergone heat treatment and strong wear resistance. | Wheel surface The contact part with the track has undergone quenching treatment, with high hardness and wear resistance. | Bearings/bushings Equipped with high-quality bearings or bushings to ensure flexible rotation and withstand impact. |
|
| |
Sealing structure Adopting a double-layer or multi-layer sealing design to prevent mud, water, and impurities from entering and extend the service life. | Installation method Fixed on the chassis frame through brackets and bolts, usually equipped with multiple supporting wheels on one side. |
Technical Parameters
The Roller Assy (code: WD.4MC.32) is a key component engineered for WORLD Combine Harvester models, integrating robust structural design with high-performance materials. Crafted with a wear-resistant shell made from premium forged steel or cast steel, the component undergoes professional heat treatment to enhance durability, while its wheel surface features quenching technology for superior hardness and long-term resistance to friction. Equipped with high-quality bearings and bushings, the assembly ensures smooth and flexible rotation even under harsh working conditions, complemented by a double-layer sealing structure that effectively blocks mud, water, and impurities from infiltrating internal parts. Designed for easy integration, the support roller assembly is fixed to the harvester’s chassis frame via brackets and bolts, forming a stable connection that aligns with the requirements of tracked harvester chassis systems.
| ITEMS | DESCRIPTION |
| Name | Roller Assy |
| Code | WD.4MC.32 |
| Weight | 5KG |
| Application | World Harvester RUILONG PLUS 4lz-6.0p spare parts |
| After Warranty Service | Online support |
Product Uses
The High-Wear WORLD 6.0p/4.0e Roller Assy is engineered to maximize the efficiency and reliability of agricultural machinery in demanding environments. As a fundamental component of the combine harvester's chassis walking system, its primary function goes beyond simple movement; it is designed to optimize field performance, protect expensive track systems, and safeguard the entire machine from the harsh realities of agricultural terrain. Understanding its critical applications helps in realizing its value for continuous, high-intensity farming operations.
As a critical part of the chassis walking system, the Roller Assy plays a pivotal role in supporting the massive weight of the entire harvester. When a combine harvester is fully loaded with grain, the downward pressure is immense. This assembly effectively and evenly distributes this heavy load across the entire surface area of the tracks. This uniform weight distribution is essential for preventing the machine from sinking into soft, muddy, or waterlogged soils, which are common during harvesting seasons.
Furthermore, it guarantees stable operation across various unpredictable field terrains. It is indispensable for WORLD Combine Harvester users who require unwavering performance and traction. By maintaining optimal ground contact, the roller assembly ensures the machine retains its balance and maneuverability, even on highly uneven ground, sloped fields, or deeply rutted paths, thereby preventing operational delays during critical agricultural windows.
The assembly excels in precise track guidance, a function that is vital for the continuous operation of heavy agricultural machinery. In challenging field conditions, tracks are susceptible to lateral forces that can cause deviations or complete derailments. Such incidents not only disrupt the workflow but can also cause severe damage to other undercarriage components. The roller assembly keeps the tracks perfectly aligned, ensuring smooth and uninterrupted forward motion.
By significantly reducing the direct friction between the track and the abrasive ground surface, it minimizes the wear rate of the rubber tracks. This protective mechanism extends the lifespan of both the track itself and the overall walking system. For farmers and large-scale agricultural operations relying on heavy machinery, this translates to a highly cost-effective solution, as it drastically reduces the frequency of expensive track replacements and minimizes costly machinery downtime.
Agricultural fields are rarely smooth; they are often rough, bumpy, and filled with hidden obstacles. Navigating these terrains generates significant impact forces that travel upward through the machine. In these environments, the Roller Assy acts as a heavy-duty buffer, absorbing these harsh impact forces to minimize the vibration transferred to the harvester’s main body and chassis.
This crucial shock absorption function protects highly sensitive internal parts—such as threshing components, engines, and electronic sensors—from continuous mechanical stress and potential wear and tear. By dampening these vibrations, the roller assembly ensures consistent harvesting performance, protects the structural integrity of the equipment, and significantly reduces the need for frequent, unscheduled repairs, thereby safeguarding the long-term investment in the agricultural machinery.
Product Operate Guide
Proper operation and proactive maintenance of the High-Wear WORLD 6.0p/4.0e Roller Assy are critical for ensuring the longevity and reliability of your combine harvester's undercarriage. For maintenance teams and agricultural operators, adhering to a strict upkeep schedule not only maximizes the lifespan of the support roller assembly but also prevents costly mid-season breakdowns. Below is a comprehensive guide to inspecting, cleaning, and maintaining this essential component to keep your chassis walking system operating at peak efficiency.
Implementing a routine inspection schedule is the first line of defense against unexpected equipment downtime. Conduct thorough checks on the Roller Assy before and after heavy harvesting cycles to identify potential issues early.
Visual Checks for Damage: Inspect the outer shell of the roller for signs of visible cracks, excessive wear on the flanges, or abnormal deformation caused by impacts with hard obstacles in the field.
Monitor for Oil Leakage: Carefully examine the sealing structure around the shaft. Any signs of oil seepage or dirt buildup mixed with grease indicate a compromised seal, which can lead to rapid bearing failure if left unaddressed.
Assess Bearing Performance: Check for abnormal play, vibration, or unusual grinding noises when the machine is in motion. The roller should rotate smoothly without excessive resistance or wobbling.
Hardware Verification: Ensure that all mounting bolts and brackets securing the assembly to the chassis remain tightly fastened, as continuous field vibrations can cause hardware to loosen over time.
Maintaining a proper internal lubrication environment is essential to minimize friction, prevent overheating, and extend the service life of the support roller assembly. Follow these guidelines to ensure optimal bearing performance:
Use Recommended Lubricants: Always apply premium-grade, agricultural-specific lubricants that meet the manufacturer’s specifications. Using the correct grease ensures compatibility with internal components and provides adequate protection under heavy operational loads.
Scheduled Greasing: Follow a consistent lubrication schedule based on the machine's operating hours. Ensure that all grease fittings and surrounding areas are thoroughly wiped clean before application to prevent injecting dirt or contaminants into the bearings.
Protect the Sealing System: Avoid applying excessive pressure when greasing. Over-pressurization can rupture the floating seals, compromising the component's ability to keep lubricants in and environmental contaminants out.
Combine harvesters frequently operate in demanding environments where mud, tangled straw, and crop residue can quickly accumulate around the undercarriage. Regular cleaning is a simple yet highly effective maintenance practice.
Daily Clearing Routine: Regularly remove packed mud, stones, and agricultural debris from around the Roller Assy at the end of each working shift to avoid obstruction of rotation.
Preventing Seal Damage: Built-up, hardened debris can press against the sealing rings, causing premature wear and allowing moisture or abrasive dirt to enter the bearing cavity.
Ensuring Free Rotation: Keeping the component clean reduces rotational resistance. This prevents unnecessary strain on the bearings, minimizes track wear, and ensures optimal alignment of the chassis walking system.
Knowing when to replace a worn component is crucial for preventing cascading damage to the track and other expensive undercarriage parts. Delaying replacement can significantly increase repair costs and equipment downtime.
Excessive Flange Wear: If the guiding flanges are worn down beyond acceptable operational limits, it can cause track deviation, leading to instability and potential track derailment.
Jamming or Seizing: If the Roller Assy shows signs of jamming or fails to rotate freely due to internal bearing collapse, it must be replaced immediately to avoid dragging and tearing the rubber track.
Structural Failure: Any significant structural damage, deep cracks, or irreversible oil leaks warrant a prompt replacement. Using a genuine support roller assembly ensures perfect compatibility with WORLD Combine Harvester models and restores the machine’s overall operational efficiency.
