Product Advantage
|
|
|
|
Structural support: bear the radial and axial forces of plunger components or sliding shoes, and maintain system stability. | Positioning connection: Connect the inclined plate, sliding shoe or plunger assembly to ensure precise fit between components. | Guided motion: Guide the sliding shoes or plungers to move along the correct trajectory during the motion. | Prevent component misalignment: reduce wear, improve HST system efficiency and service life |
Technical Parameters
| ITEMS | DESCRIPTION |

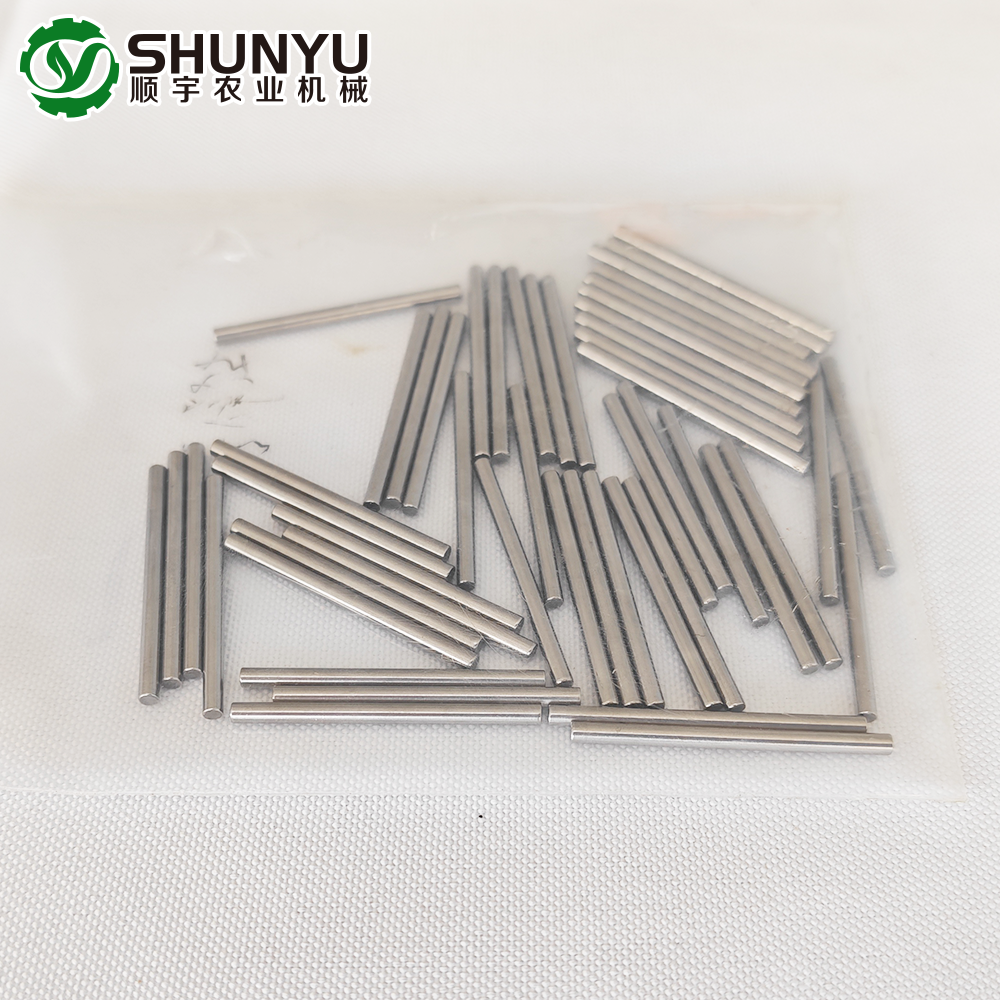

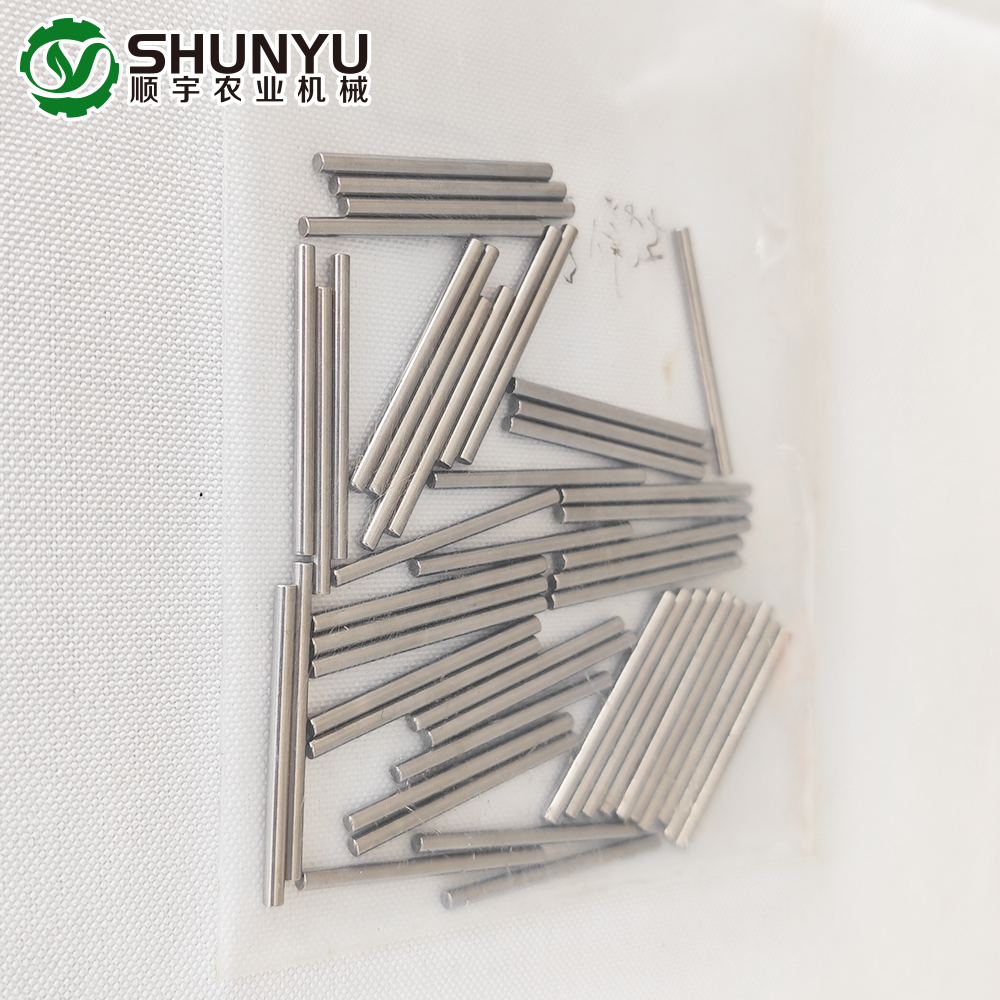

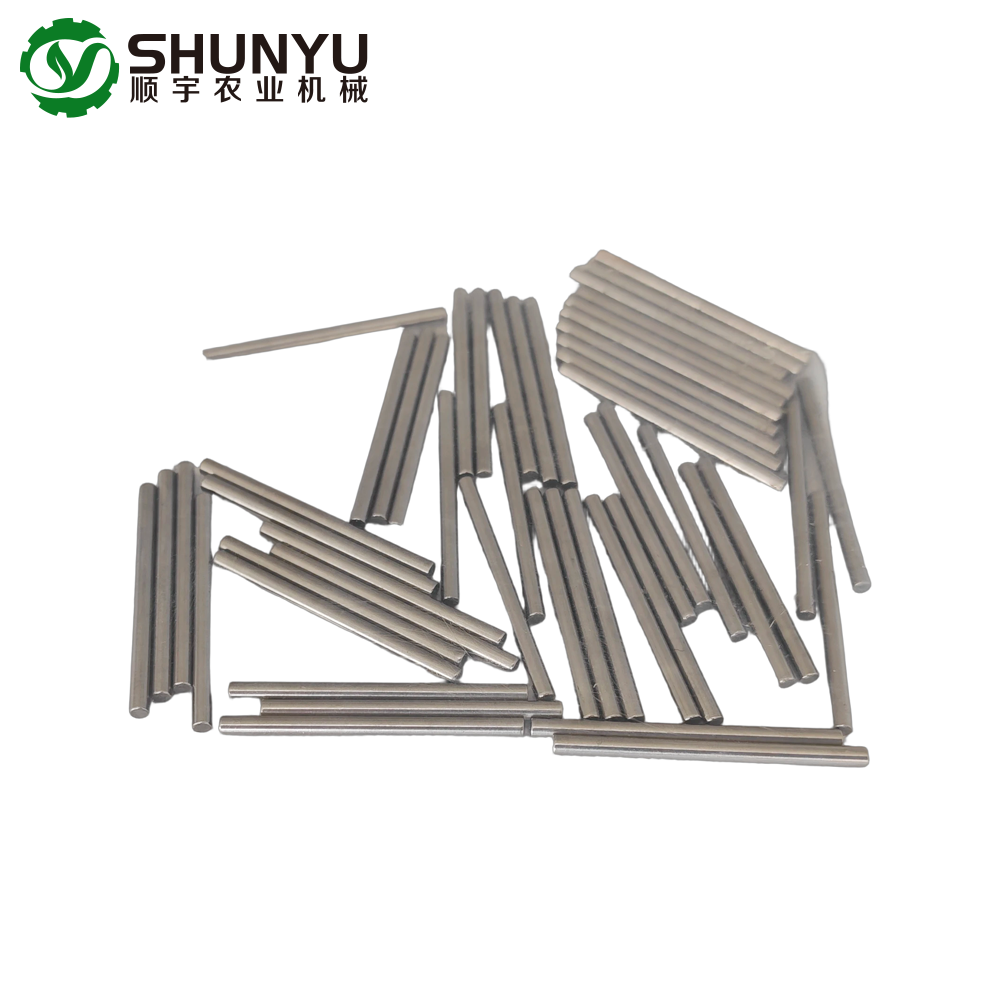

| Name | Pin |
| Code | WHST40-08-6 |
| Weight | 0.02 3 pieces/set |
| Size(mm) | 32*Φ2 |
Product Uses
Guide support for plunger assembly
Slipper/Shoe motion trajectory guidance
Swash Plate and Pump Body Connection Point
Joint positions in the pump or motor assembly that require load-bearing or positioning
Product Operate Guide
Common Fault Symptoms (When It Failures)
Sliding shoes or plunger offset, causing unstable HST output
System noise increases
Walking weakness and slow response
The wear or breakage of the support rod causes the pump body parts to shake
Replacement Tips
When replacing, use the same specification and material pin shaft to ensure matching accuracy
Clean the hole position and pin surface before disassembly and assembly to avoid particle scratches
During installation, lubricating grease or hydraulic oil can be applied appropriately to ensure smooth movement
Check if the support holes are worn, and if there are any abnormalities, it is recommended to repair or replace them simultaneously
