Product Advantage

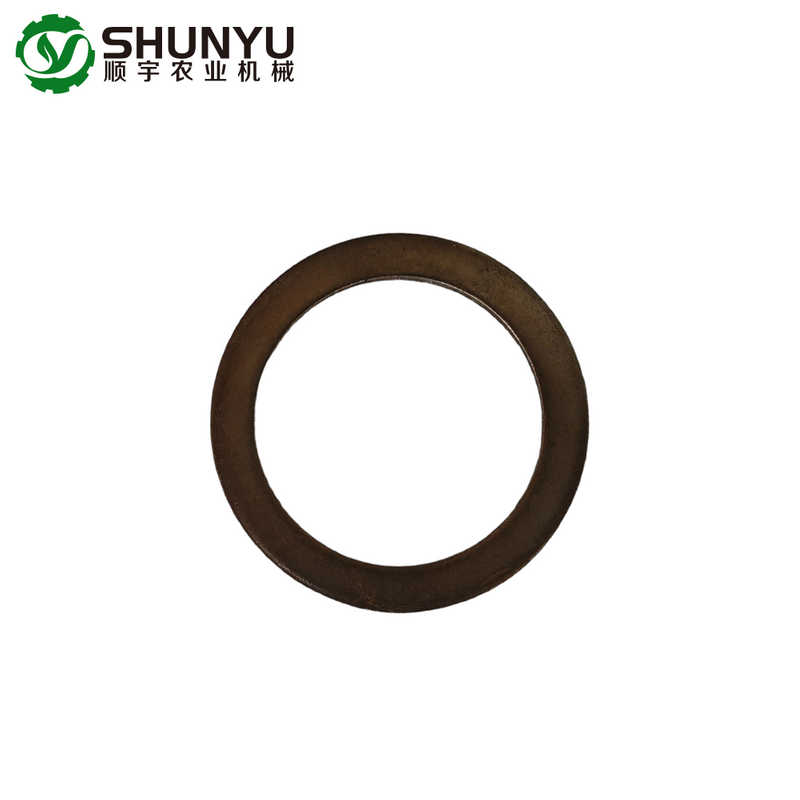

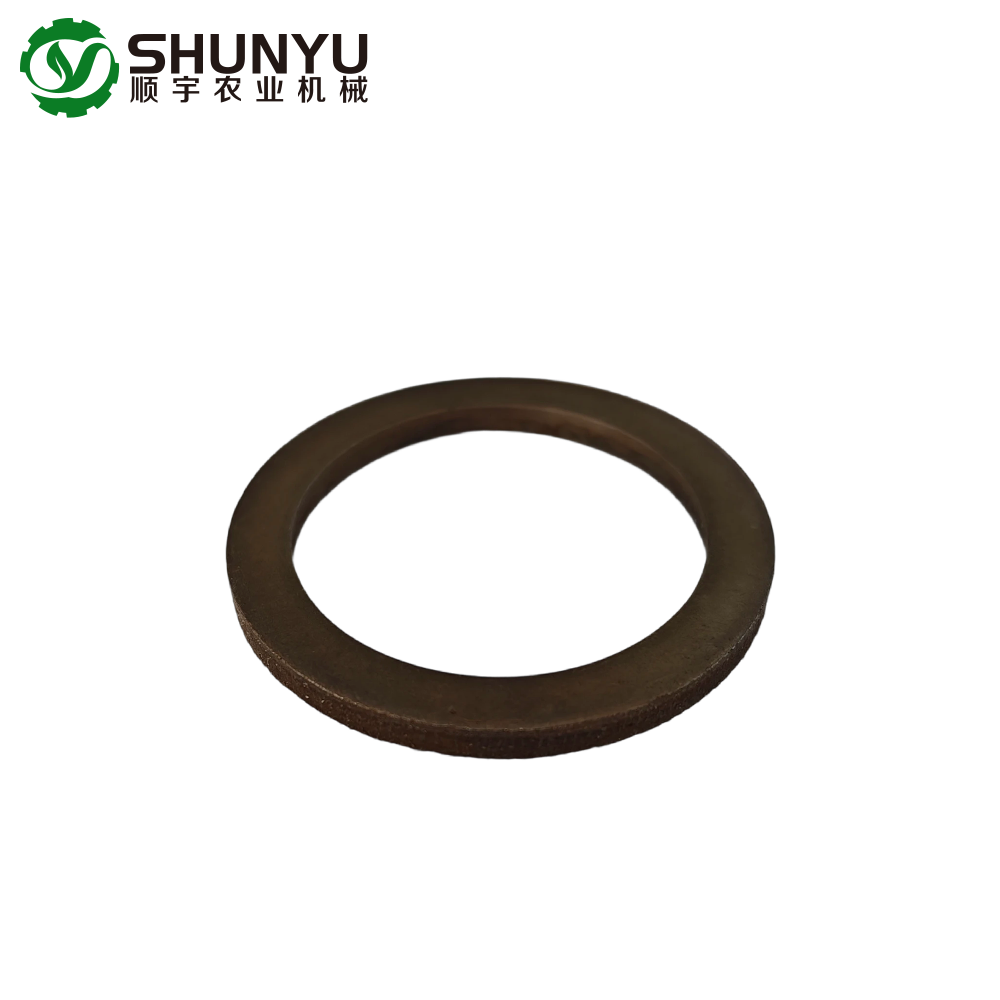

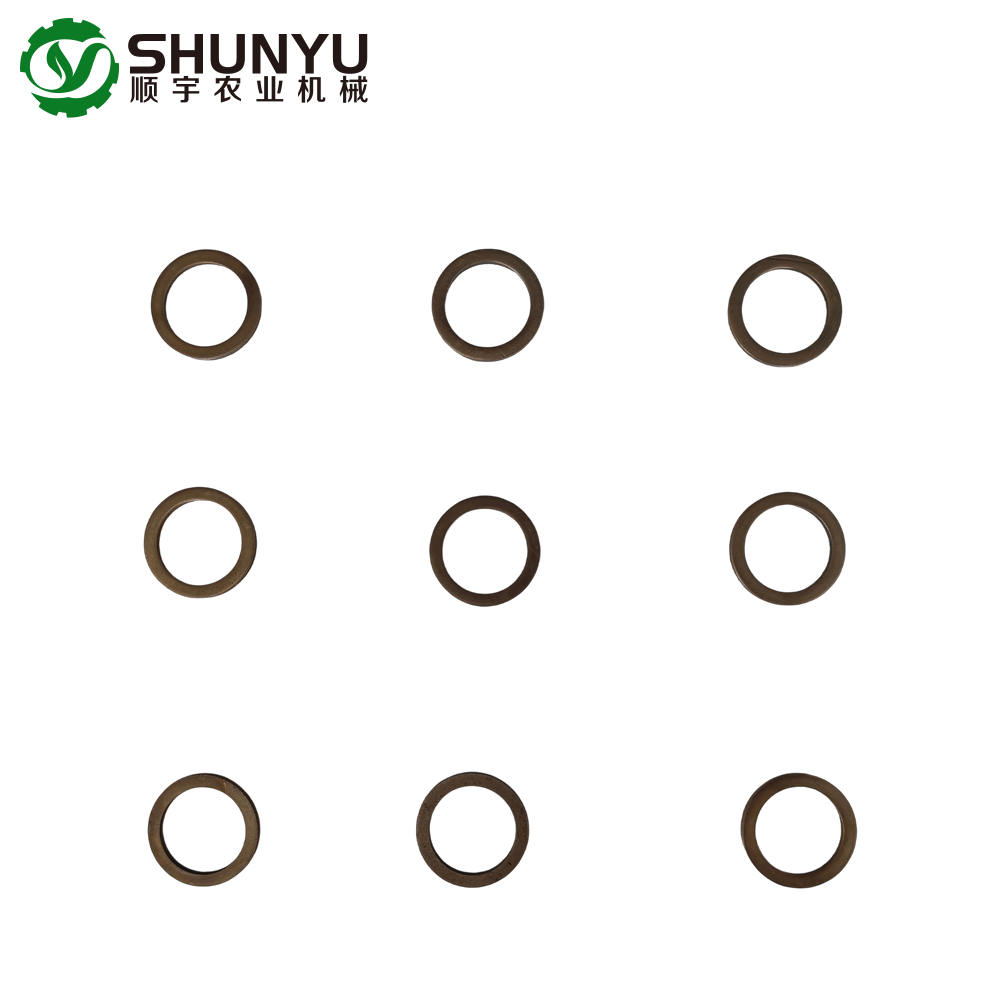

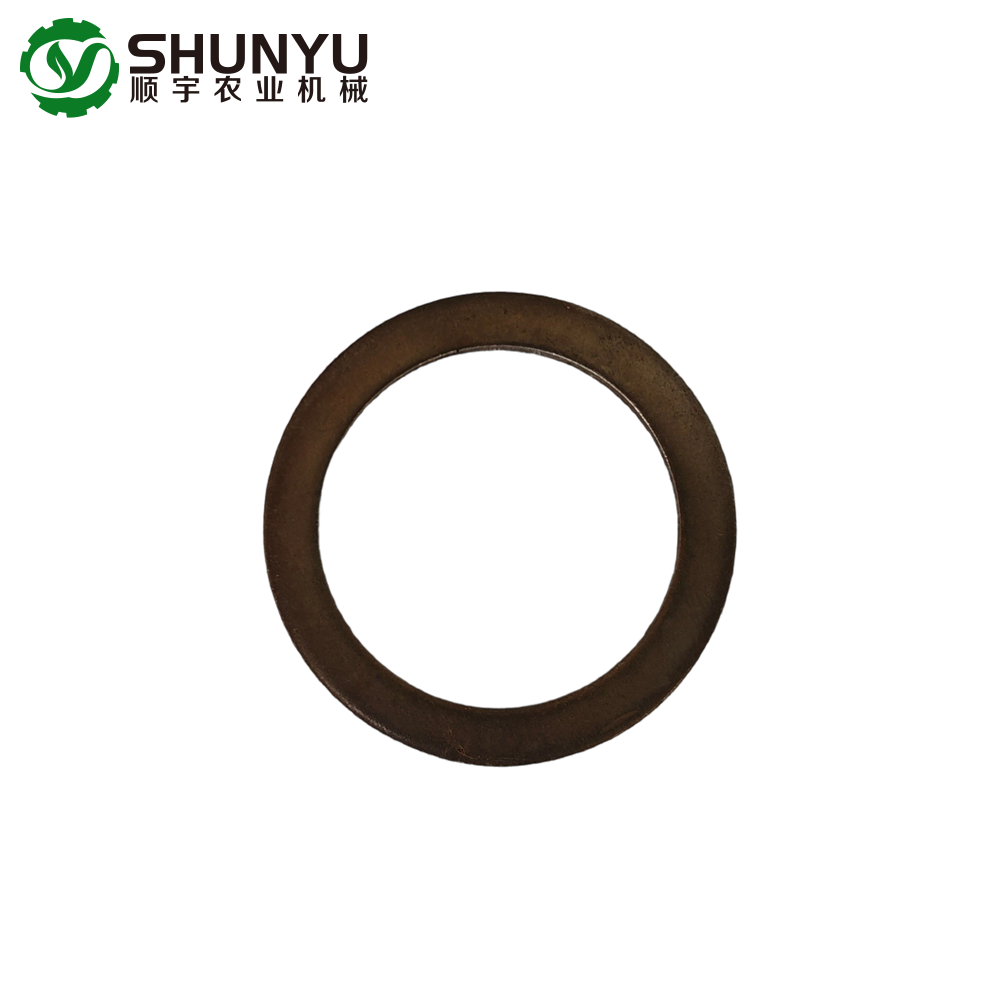

The World Harvester Parts HST Pump Spring Seat is engineered to deliver reliable performance for hydrostatic transmission systems in demanding agricultural environments. As a critical internal component, it provides essential support and protection, ensuring that hydraulic pumps and motors operate efficiently. For procurement professionals and maintenance teams, investing in this specific spring seat translates to reduced equipment downtime, lower maintenance costs, and optimized operational stability for heavy-duty harvesters.
|
|
|
Spring positioning support WHST40-08-3 serves as a "seat" or "washer" for the spring, used to fix the position of the spring and maintain the correct installation direction inside the pump or motor. Prevent the spring from shifting, tilting, or coming into contact with metal parts to ensure even force distribution on the spring. | Shock absorption and buffering During the operation of hydraulic pumps, HST drive systems, or motors, springs are subjected to pressure and vibration. The spring seat can reduce the impact of vibration on the machine structure and protect the spring and surrounding parts from excessive wear. | Extend the lifespan of components Reduce the risk of spring fatigue or deformation by dispersing pressure and maintaining uniform force distribution on the spring. Prevent internal parts of the pump or motor from wearing out due to spring misalignment, ensuring long-term stable operation of the HST system. |
Technical Parameters
The technical parameters for the World Harvester Parts HST Pump Spring Seat are detailed below. Please refer to these specifications to ensure accurate component identification and procurement.
| ITEMS | DESCRIPTION |
| Name | Spring Seat |
| Code | WHST40-08-3 |
| Weight | 0.02 2 pieces/set |
| Size(mm) | Φ:36 H:1 |
Product Uses
The HST Pump Spring Seat is specifically tailored for exact integration into heavy-duty agricultural equipment. For procurement professionals, fleet managers, and agricultural machinery maintenance teams, ensuring accurate component compatibility is critical to minimizing equipment downtime and maintaining high productivity during demanding harvest seasons.
This replacement component is strictly designed for 45 cc HST models of World Harvester harvesters/agricultural machinery. It functions as a crucial internal element used directly in the hydraulic pump or motor system of this specific machinery series. By matching the mechanical requirements of the 45 cc Hydrostatic Transmission (HST) systems, it supports the restoration of the equipment's original hydraulic efficiency and operational responsiveness.
Product Operate Guide
Agricultural harvesters consistently operate under rigorous field conditions, facing high torque requirements, continuous operational hours, and severe mechanical vibrations. The hydraulic pump and motor systems within these machines demand components that fit with absolute precision to maintain consistent fluid pressure. Utilizing the correct spring seat for World Harvester 45 cc HST models ensures that the hydrostatic transmission can reliably manage heavy crop loads and navigate uneven agricultural terrains without unexpected hydraulic pressure drops.
When sourcing replacement parts for agricultural machinery, selecting components with confirmed system compatibility significantly reduces procurement risks and prevents costly field failures. This spring seat is highly suitable for the following purchasing and maintenance scenarios:
Pre-Season Overhauls: Ideal for comprehensive maintenance schedules before the harvest season begins, ensuring the hydraulic drive systems of World Harvester equipment are fully prepared for continuous use.
Routine Fleet Maintenance: Suitable for agricultural cooperatives and machinery leasing companies conducting regular servicing of their 45 cc HST models.
Targeted System Repairs: Designed for specific repair tasks where the hydraulic pump or motor system has experienced component wear and requires exact-match replacements to restore functionality.
By verifying your machinery's hydrostatic transmission capacity (45 cc) and brand configuration (World Harvester) prior to procurement, you can ensure an accurate fit. This targeted application focus helps agricultural operations maintain their critical harvesting schedules, avoiding the operational setbacks associated with mismatched hydraulic components.
To maintain the stable performance of the harvester's hydraulic system, regular inspection of the HST pump spring seat is highly recommended. Maintenance personnel should routinely check for any signs of deformation, micro-cracks, abnormal wear, or material aging, especially before and after heavy harvesting seasons. Implementing a scheduled maintenance routine helps fleet operators reduce overall maintenance costs and avoid unexpected equipment failures in the field.
When the hydraulic pump or motor experiences abnormal vibrations, unexpected noise, or irregular force distribution, the spring seat should be prioritized during troubleshooting. These symptoms often indicate early-stage wear of internal components. Once any structural damage or deformation is identified, the spring seat must be replaced promptly. Delaying replacement can negatively affect the lifespan of the associated spring and the entire HST pump or motor, leading to more extensive repairs and unplanned downtime during critical agricultural operations.
Proper installation is essential for the reliable operation of the hydraulic system. Before installing the new spring seat, thoroughly clean the mounting surface and the surrounding area. Ensure there are no impurities, metal shavings, rust, or foreign objects, as even minor contaminants can compromise the efficiency of the hydraulic components. Performing the replacement in a controlled environment rather than a dusty field can significantly reduce the risk of contamination.
The spring seat must be placed correctly in its designated position to maintain a precise and tight fit with the spring. Avoid any uneven force application on the seat during assembly, and verify that the direction of the force exerted on the spring aligns accurately with the system's design. If specified by the equipment's instruction manual, applying an appropriate amount of lubricating grease to the seat surface can help reduce initial friction, ensuring smoother operation and minimizing early wear.
For proper mechanical compatibility and operational stability, the spring seat should always be used in conjunction with the original standard spring. Size matching is a crucial factor for maintaining the hydraulic system's internal balance. The WHST40-08-3 standard size features a diameter (Φ) of 36 mm and a height of 1 mm. When sourcing replacement parts, verifying these exact dimensions ensures that the internal pressure mechanism functions as intended.
It is strongly advised against using substitute springs that deviate from the original specifications. Using springs that are either too hard or too soft can alter the pressure settings of the pump, causing uneven stress distribution on the seat. This mismatch will not only accelerate the wear and tear of the spring seat itself but may also lead to inconsistent power output from the harvester's HST motor.
During routine maintenance, repair, or disassembly of the hydraulic pump and HST motor, technicians must handle the internal components with care to avoid accidental damage to the spring seat. Since the spring seat is a relatively small precision component, it is highly recommended to use professional tweezers or suitable positioning tools for installation and removal.
Working on a clean and organized workbench can prevent the loss of small parts and ensure that the installation process is accurate. Proper handling techniques help avoid improper seating or misalignment, which could otherwise lead to secondary rework and potential operational failures in the field. Following these standardized operational guidelines ensures a safer maintenance process and extends the service life of the harvester's hydraulic drive system.
