Product Advantage

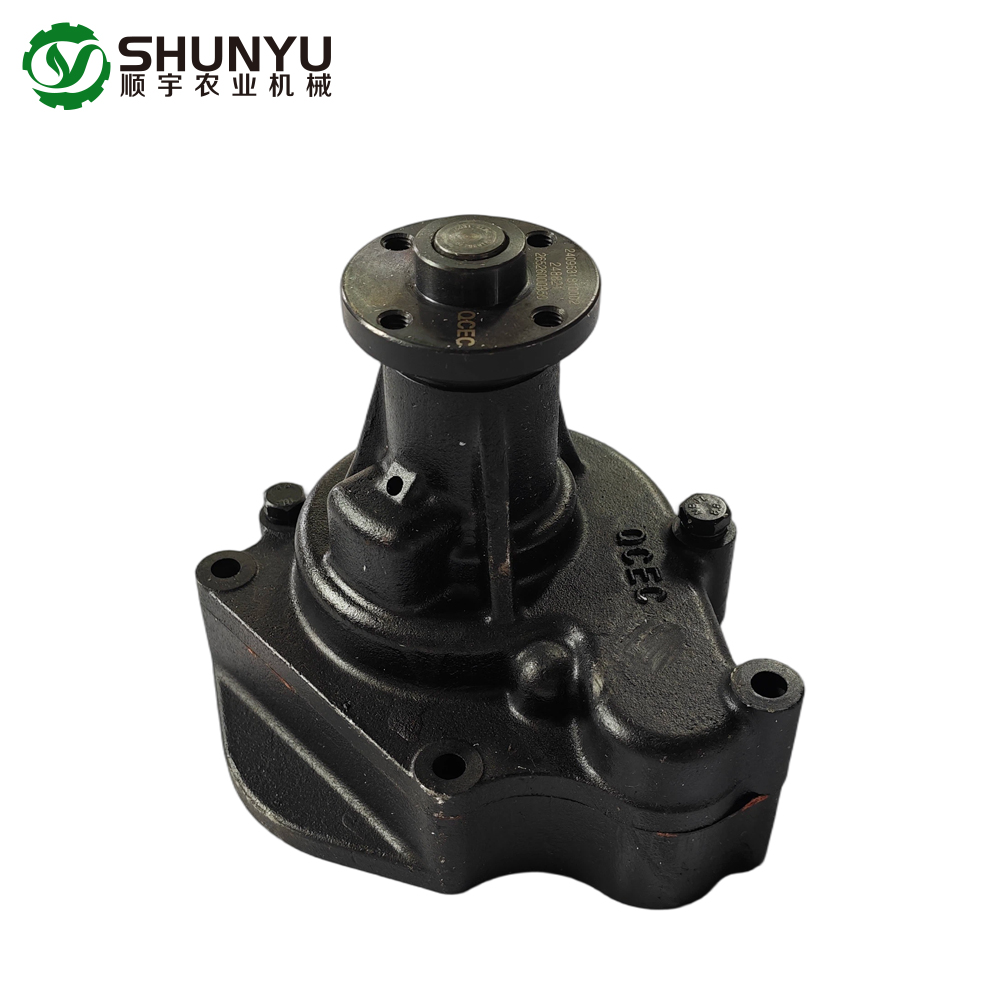

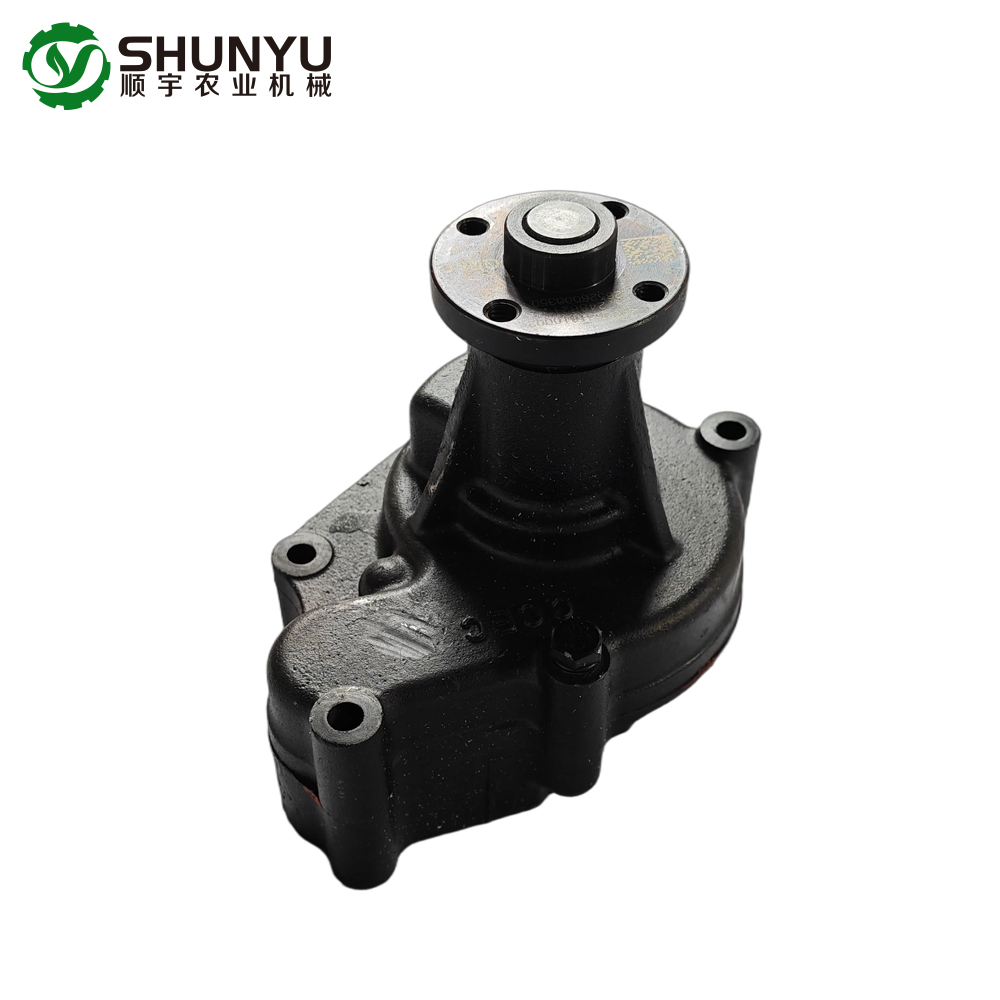

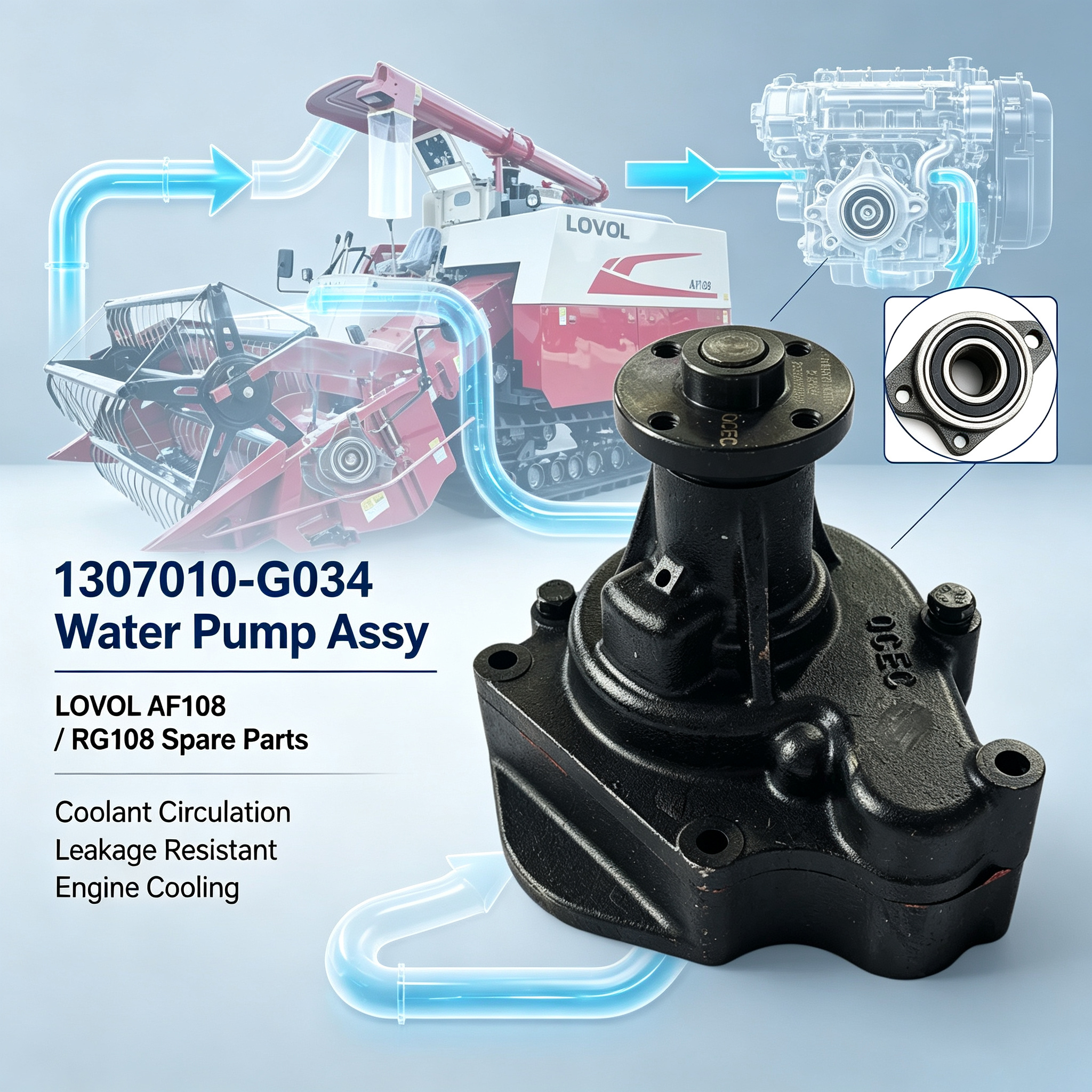

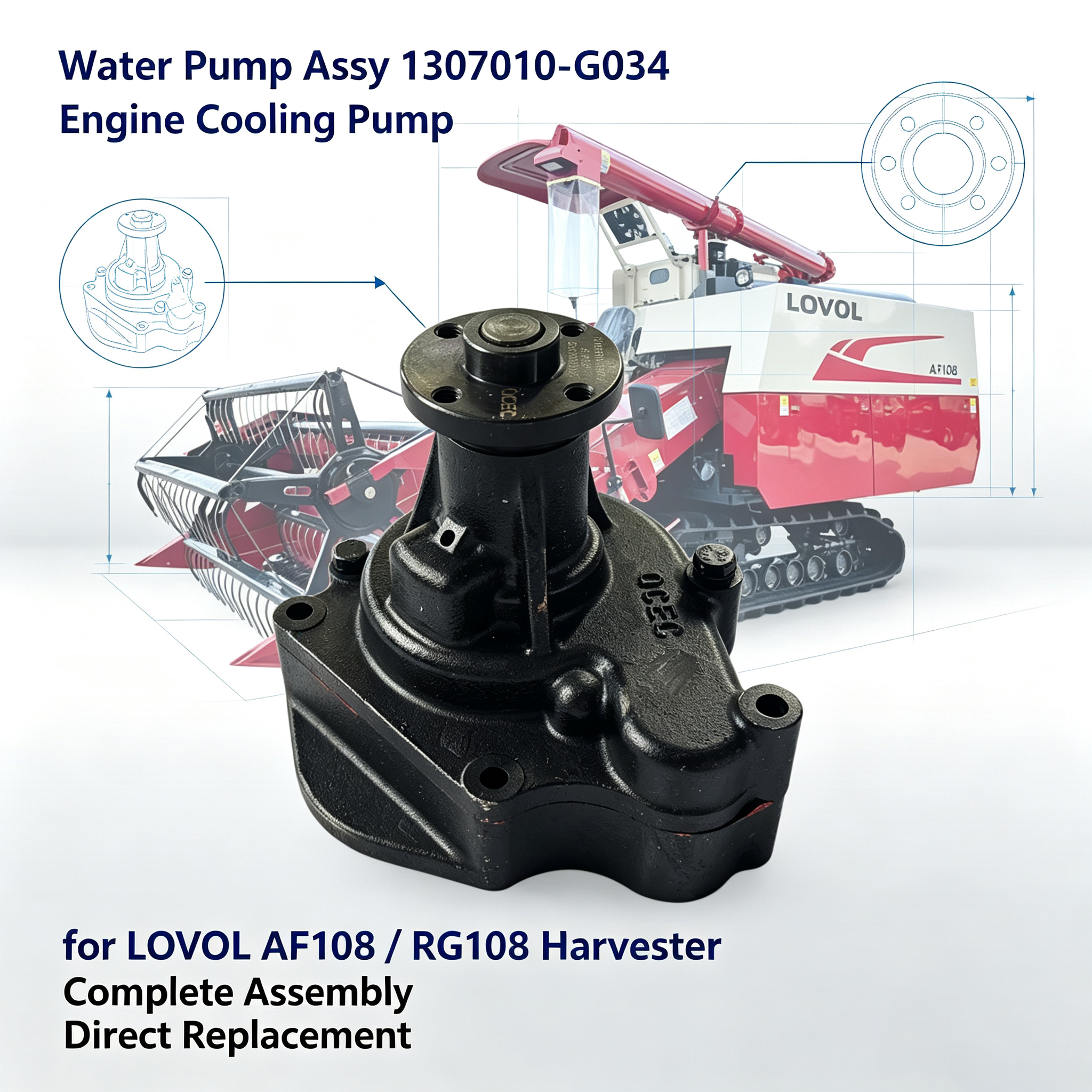

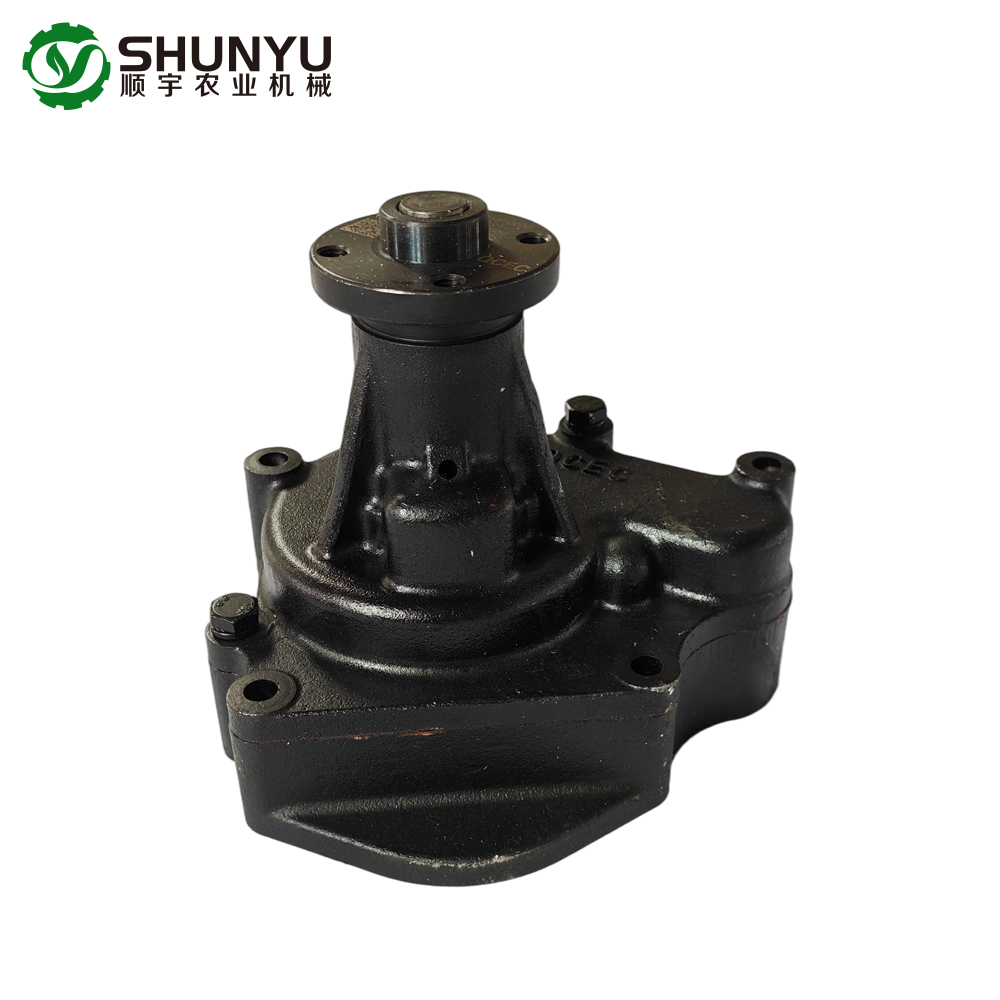

This water pump assembly 1307010‑G034 is a core component of the engine cooling system for LOVOL AF108 and RG108 combine harvester. It circulates coolant inside the engine to dissipate heat during continuous heavy‑load harvesting work. Adopts precision casting housing, high‑performance mechanical seal and durable bearing assembly. Effectively prevents water leakage and bearing seizure under long‑time high‑temperature farm operation. A failed water pump will cause engine overheating, cylinder overheat damage and unexpected shutdown in field. Direct aftermarket replacement part, matches original mounting dimension for simple installation.
Drive coolant circulation inside engine cooling circuit, take away excess heat, maintain normal working temperature of harvester engine, avoid engine overheating failure.
Technical Parameters
| ITEMS | DESCRIPTION |
| Code | 1307010‑G034 |
| Product Name | Water Pump Assembly |
| Application | Engine cooling system |
| Feature | Leak‑proof, high temperature resistant, stable circulation performance |
| Application | LOVOL AF108/RG108 series harvester |
Product Uses
Usage Scenarios
Emergency field replacement for leaking or faulty water pump; pre‑harvest engine routine maintenance; peak‑season breakdown repair for LOVOL AF108 / RG108 combine harvester.
Q1: Which machine does 1307010‑G034 water pump fit?
A: Specially for LOVOL AF108 and RG108 combine harvester. Please confirm part number and machine model before purchase.
Q2: What signs show water pump needs replacement?
A: Coolant leakage from pump body, abnormal bearing noise, continuous engine overheating, unstable engine temperature during work.
Q3: Does this water pump come with gasket?
A: Gasket is not included by default. Please order separate gasket if you need it.
Q4: Is this original genuine LOVOL part?A: It is high‑quality aftermarket replacement spare part, fully fits original installation position.
Q5: Do you have stock for this item?
A: This is critical maintenance spare part, in stock, can be shipped within 1‑3 working days after payment.
Product Operate Guide
Stop engine and wait for engine fully cool down before disassembly. Do not operate on hot cooling system.
Drain all coolant from engine cooling system.
Remove connecting water hoses, bolts and old defective water pump assembly.
Clean the engine mounting contact surface, remove old gasket residues.
Fit new gasket and install the new water pump assy, fasten mounting bolts evenly with correct torque.
Reconnect all water hoses and secure hose clamps.
Refill qualified coolant to specified level.
Start engine and run at idle speed, check for water leakage at joints and pump body. Observe engine temperature gauge works normally.
Re‑inspect coolant level after short running test.
Important Warnings ‑ Never install without new gasket, it will lead to coolant leakage. ‑ Do not mix different types of coolant. ‑ Check fan belt tension after water pump installation; improper tension will accelerate pump bearing damage.
