Product Advantage

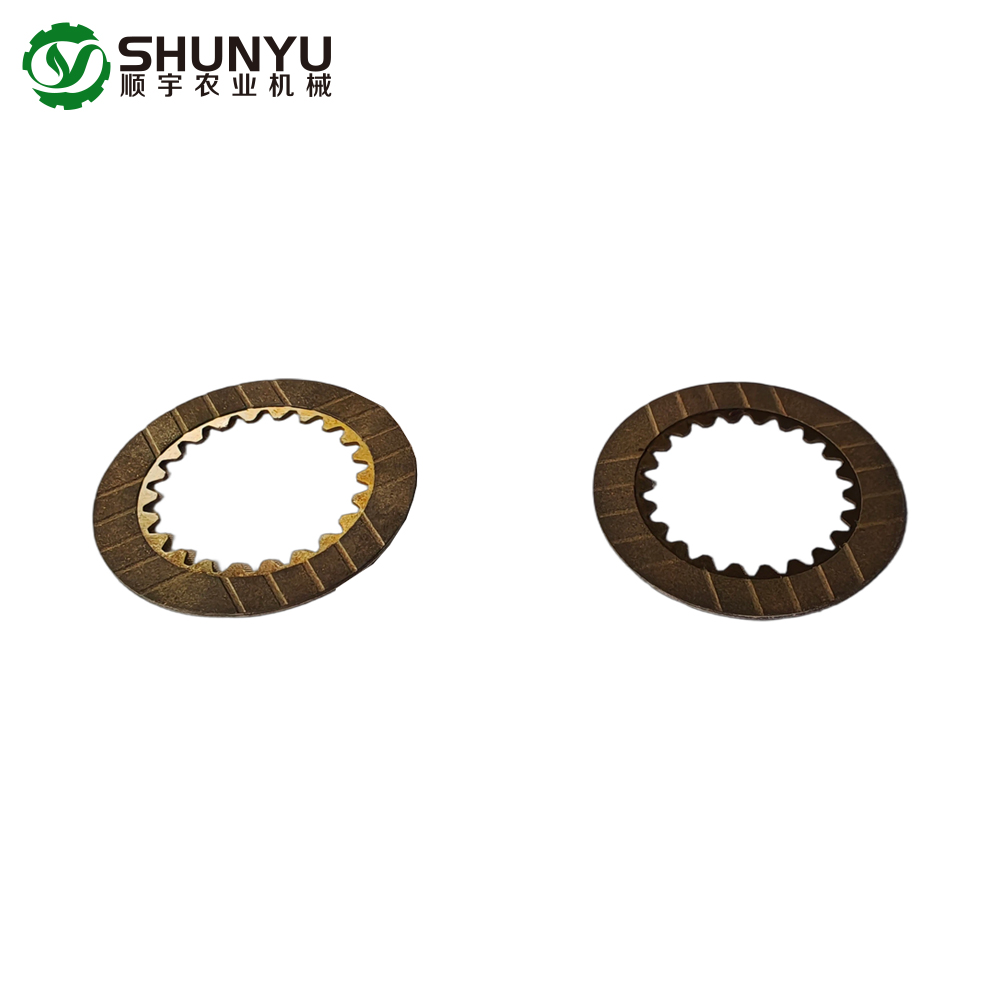

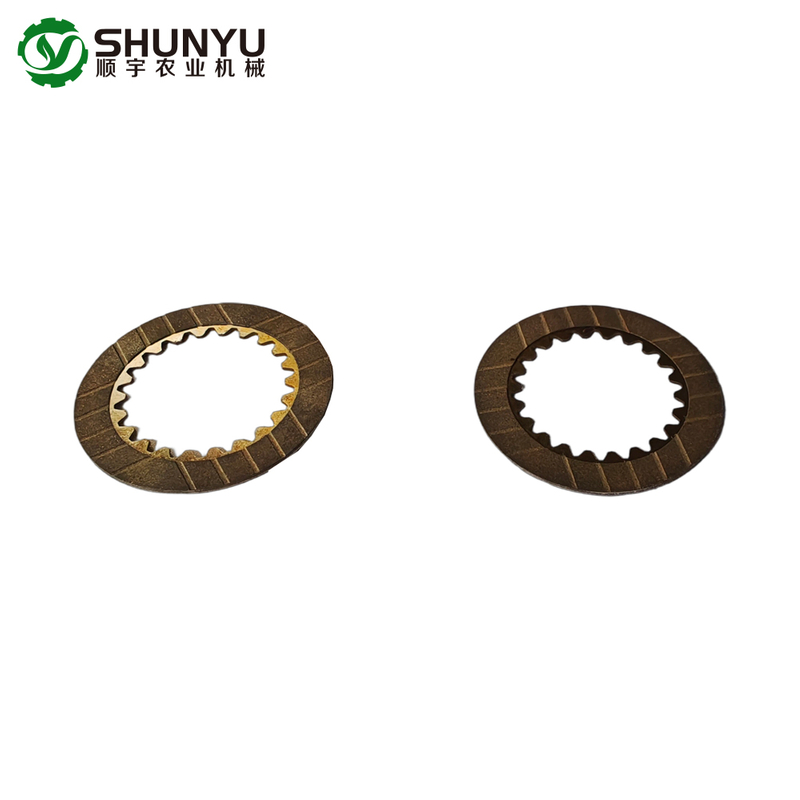

This clutch friction plate set includes inner friction plate DV01402010097 and external friction plate DV01402010096. They are key wearing parts for the harvester gearbox clutch assembly. Made of high‑friction composite material with metal substrate, offering stable friction coefficient, high heat‑resistance and wear‑resistance under heavy‑load farm working conditions. The plates realize power connection and disconnection for transmission system. Worn or burnt friction plates will cause clutch slipping, power loss, difficult shifting and harvester power cut‑off during harvesting. It is strongly recommended to replace inner and external plates as one complete kit for field maintenance. Direct aftermarket replacement, no modification required.
Engage and disengage power transmission between gearbox assemblies, transfer torque for harvester driving and working systems. Prevent sudden impact to protect gearbox components.
Technical Parameters
| ITEMS | DESCRIPTION |
| Code | DV01402010097 (Inner friction plate)；DV01402010096 (External friction plate) |
| Product Name | Inner & External Clutch Friction Plate Set |
| Application | Gearbox clutch assembly |
| Feature | Heat‑resistant, wear‑resistant, stable friction performance |
| Application | LOVOL AF108/RG108 series harvester |
Product Uses
Usage Scenarios
Field repair for worn or burnt clutch; pre‑harvest routine inspection and replacement; emergency maintenance during peak harvesting season for LOVOL AF108 / RG108 combine harvester.
Q1: Which harvester models do these plates fit?
A: Exclusively for LOVOL AF108 and RG108 combine harvester. Confirm part numbers and machine model before ordering. Not universal for other models.
Q2: What symptoms mean friction plates need replacement?
A: Clutch slipping, insufficient output torque, burning smell, difficulty in gear shifting, obvious power drop under heavy harvesting load.
Q3: Must I replace inner and external plates together?
A: Yes. They wear mutually. Replacing only one piece will cause uneven wear and early failure. Complete‑kit replacement is recommended.
Q4: Are these original LOVOL genuine parts?
A: High‑quality aftermarket replacement spare parts, fully match original dimensions for field repair.
Q5: Do you keep stock?
A: These are fast‑moving wearing spare parts. Goods can be shipped within 1‑3 working days after payment.
Product Operate Guide
Shut down engine and make sure all rotating components are fully stationary before disassembly.
Dismantle clutch housing cover, take out old inner and external friction plates.
Inspect clutch hub, pressure plate and spring parts. Remove metal debris and oil contamination inside clutch cavity.
Install new inner and external friction plates in correct alternating order. Do not assemble in reverse sequence.
Ensure no oil, grease or dirt contaminates friction surfaces. Oil contamination will lead to clutch slipping.
Re‑assemble clutch housing cover, tighten fasteners diagonally and evenly with proper torque.
Carry out no‑load test operation. Check for slipping, abnormal noise or difficult gear shifting.
Re‑inspect clutch working status after short‑time field trial.
Important Warnings ‑ Always replace inner and external friction plates together as a matched set. Separate single‑piece replacement shortens service life. ‑ Friction surfaces must stay clean. Any oil stain will cause clutch failure. ‑ Check pressure springs simultaneously during replacement; replace fatigued springs if necessary.
