| Quantity: | |
|---|---|
Product Advantage

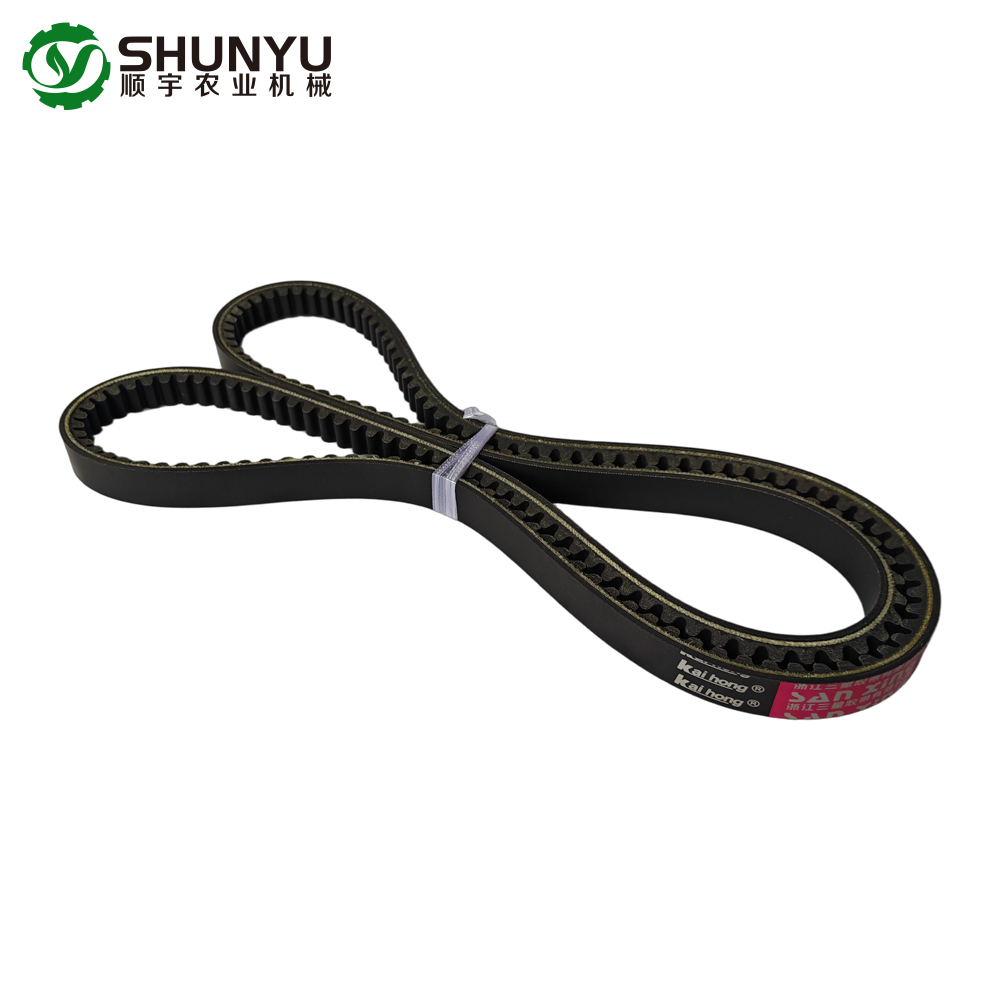

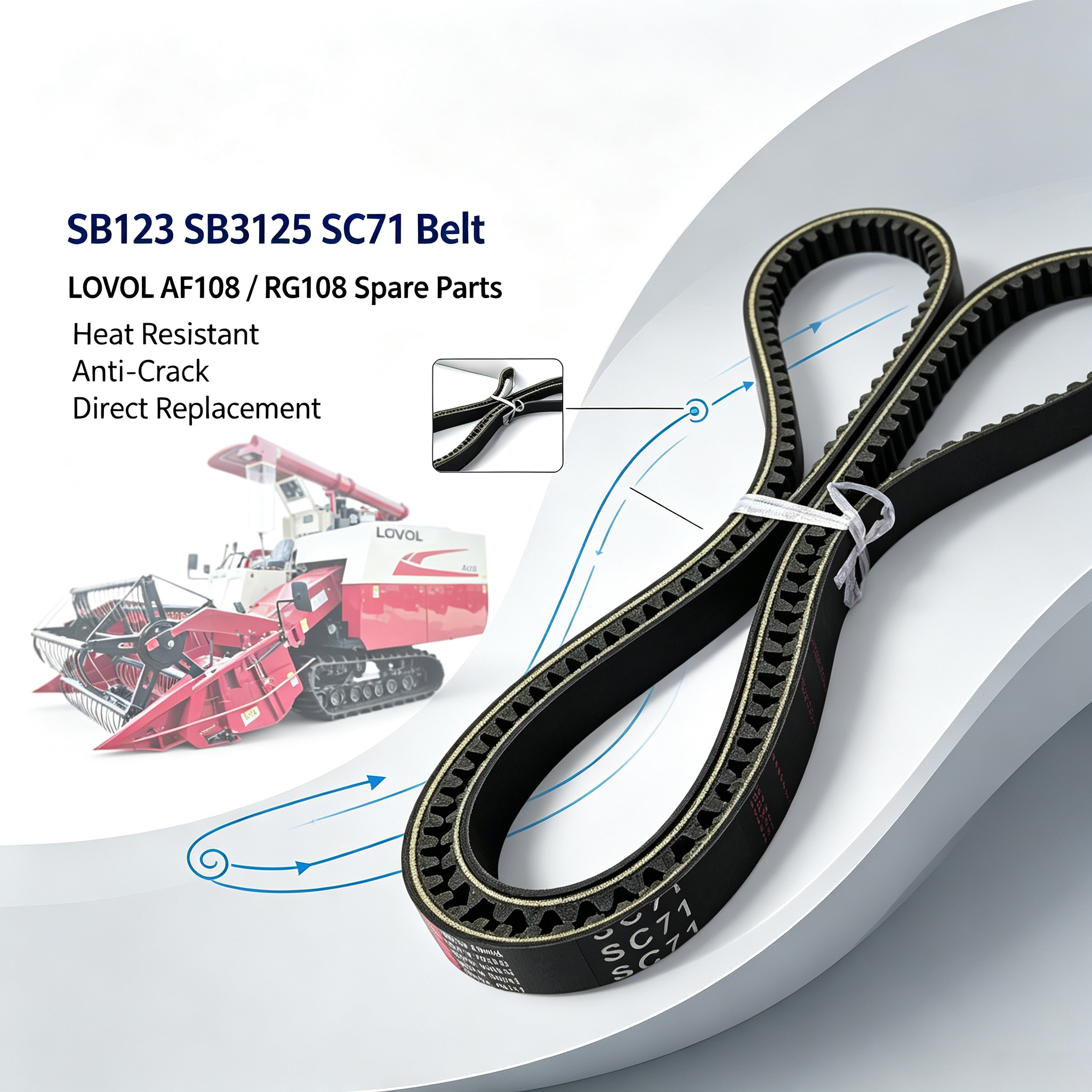

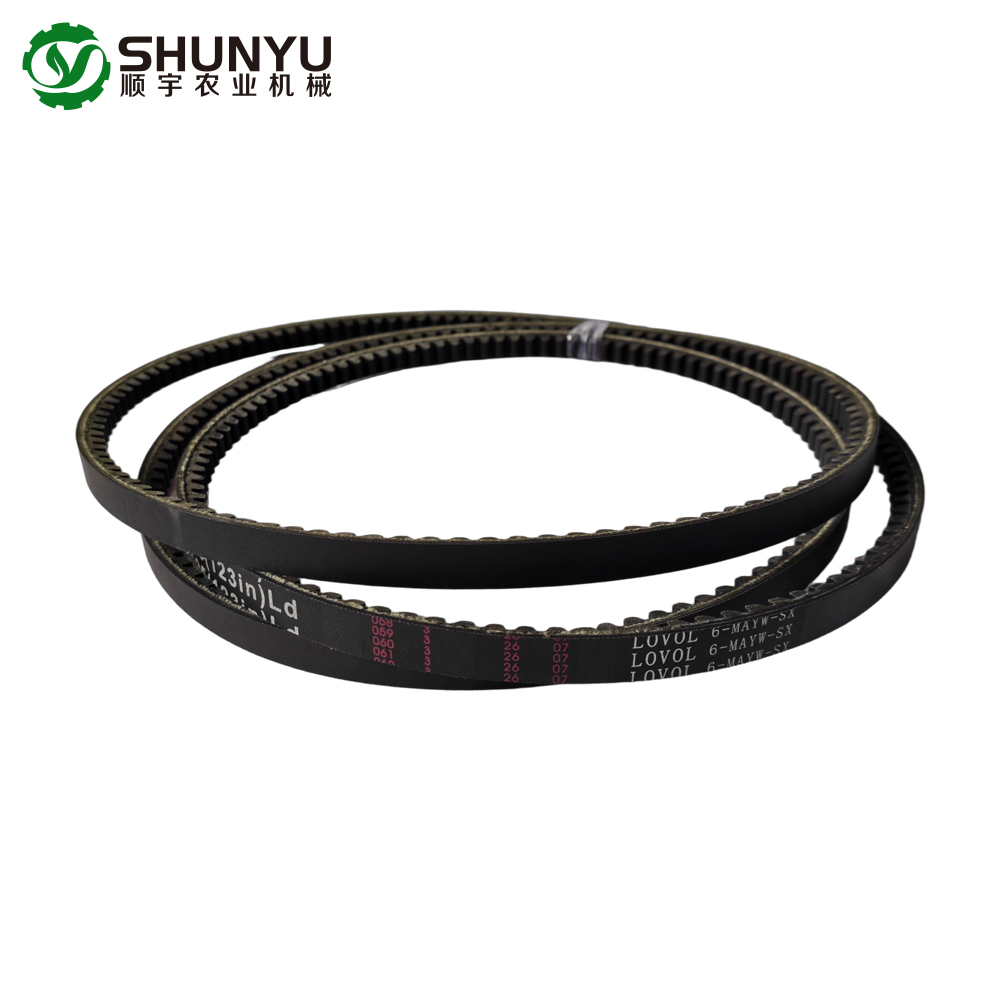

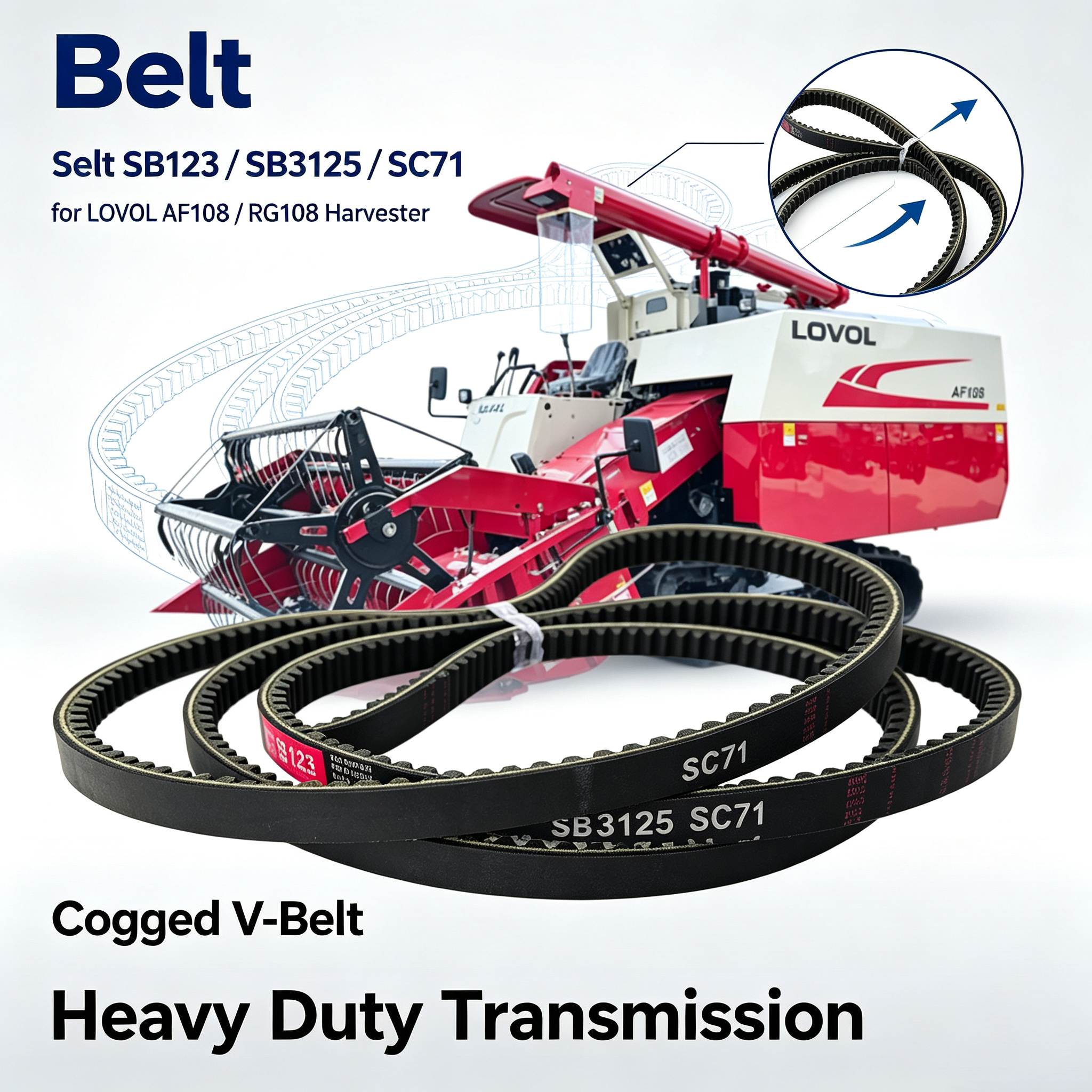

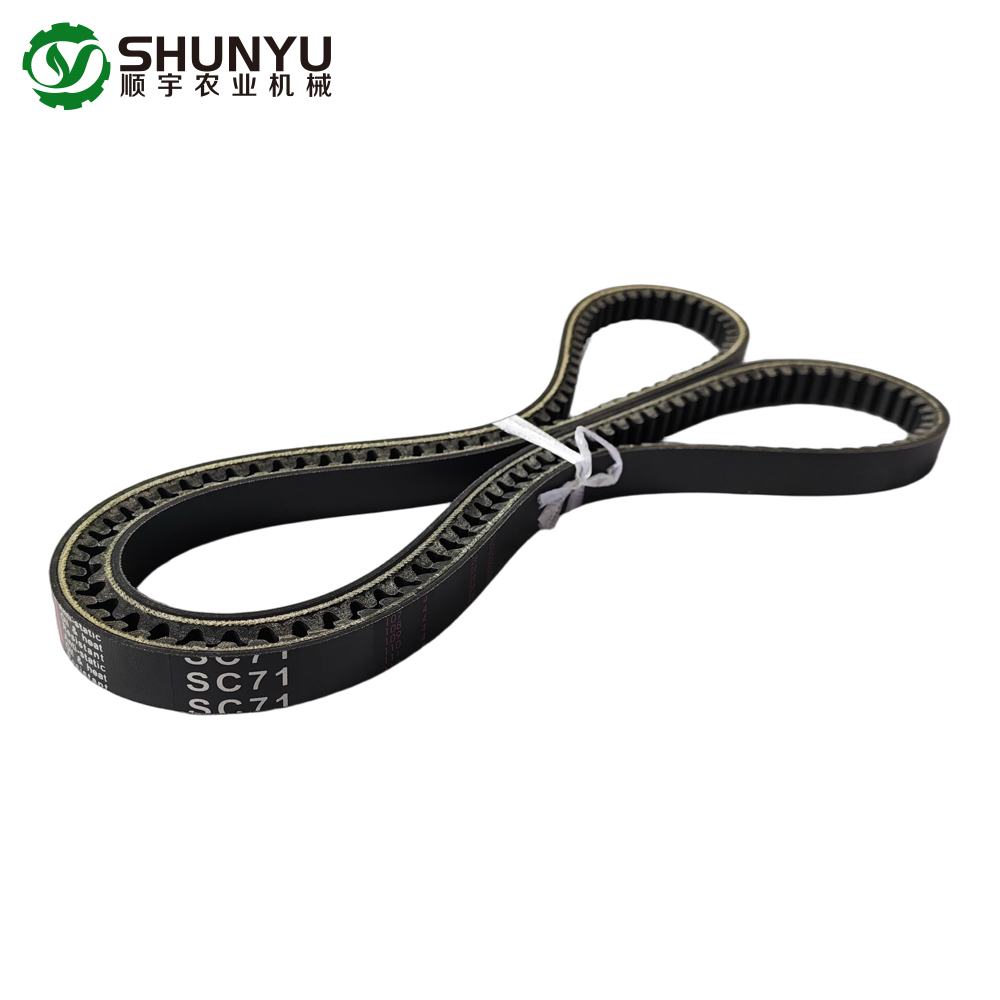

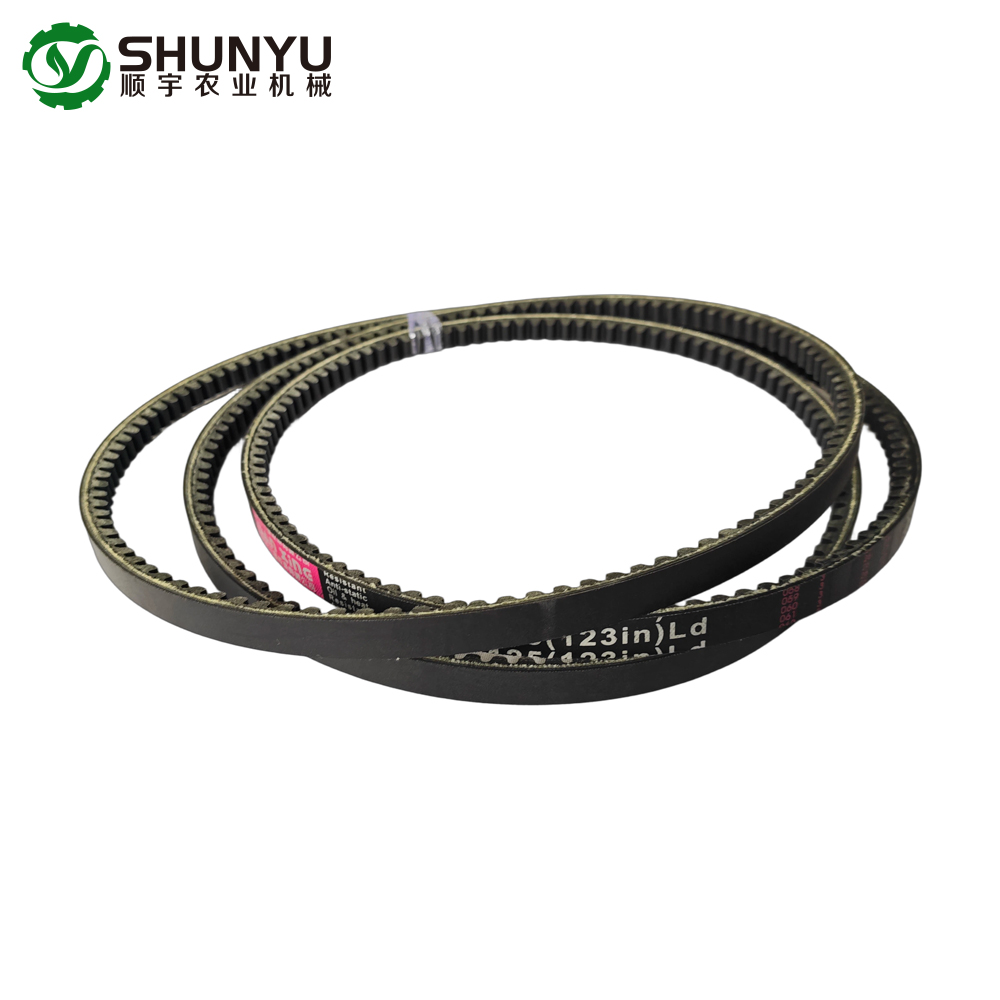

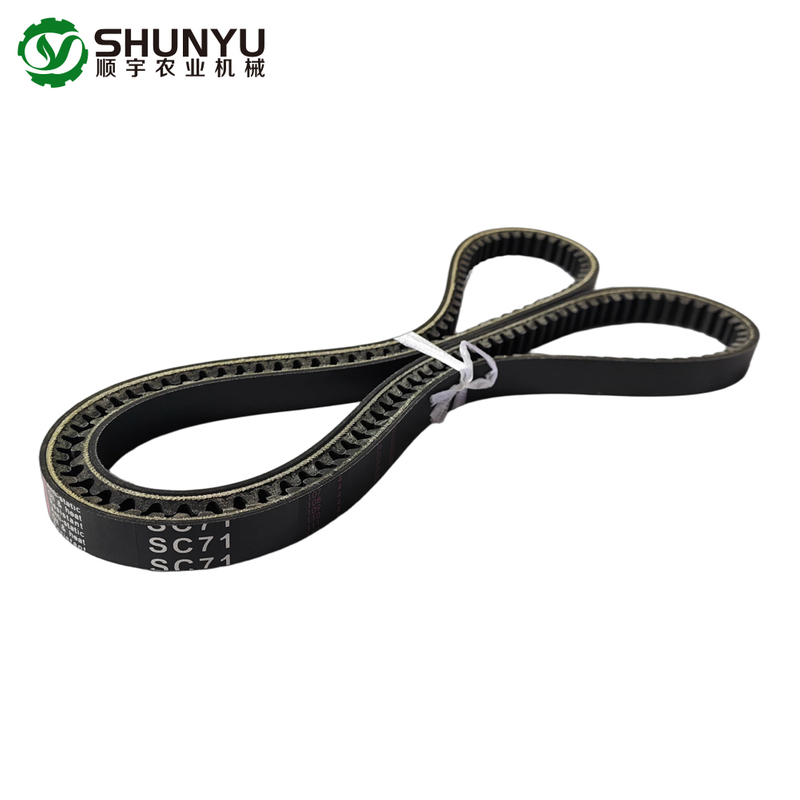

These heavy‑load agricultural V‑belts are critical wearing transmission parts specially for LOVOL AF108 & RG108 crawler combine harvester. They transfer engine power to drive threshing drum, conveying system, cleaning fan and other working assemblies during rice harvesting.
Built with reinforced high‑tensile fiber cord & premium rubber compound. Good heat‑resistance, oil‑resistance and anti‑aging performance, coping with heavy shock load, dust and high‑temperature working environment in farm fields. Crack, stretch or broken belt will cause power loss, slipping, machine shutdown and interrupt harvest progress. Pre‑harvest inspection & spare stock is strongly recommended for cross‑region harvesting work. Direct aftermarket replacement for original belts, no modification required for installation.
Transmit engine power to drive threshing drum, conveying chain and cleaning fan, ensure normal harvesting operation of LOVOL AF108 / RG108 combine harvester.
Fault Consequence：Belt slipping or breakage will lead to power failure and sudden machine shutdown in field.
Technical Parameters
| ITEMS | DESCRIPTION |
| Code | SB123, SB3125, SC71 |
| Product Name | Harvester Transmission V‑Belt |
| Function | Power transmission for threshing, conveying & cleaning system |
| Feature | Heat‑resistant, oil‑resistant, anti‑aging, heavy‑load shock resistance |
| Application | LOVOL AF108/RG108 series harvester |
Product Uses
Usage Scenarios
Fit for paddy‑field and dry‑land harvesting operations of LOVOL AF108 / RG108 combine harvester. Widely used for seasonal harvest work, field breakdown emergency repair and regular pre‑harvest maintenance.

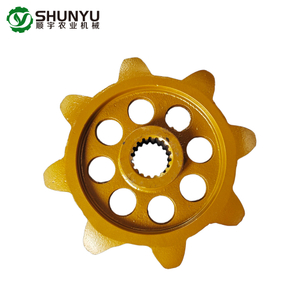

Q1: Which harvester models does this sprocket fit?
A: Specially designed for LOVOL AF108 and RG108 crawler rice combine harvester. Not compatible with other series harvesters. Please confirm your machine model before purchase.
Q2: When do I need to replace this 18‑teeth sprocket?
A: Replace it if you see tooth wear, tooth chipping, harvester chain jumping, chain slipping or abnormal rattling noise during working. It is recommended to inspect sprocket and chain together before harvest season.
Q3: Does it come with chain together?
A: This listing only includes the 18‑teeth sprocket, chain is sold separately. If you need matching chain, please contact us.
Q4: Is this original LOVOL genuine part?
A: This is high‑quality aftermarket replacement spare part, direct interchange for original part, good performance for farm repair.
Q5: What is your lead time?
A: We keep stock for this hot‑sale wearing part. Goods can be shipped out within 1‑3 working days after payment.
Product Operate Guide
For SB123, SB3125, SC71 V‑Belt | LOVOL AF108 / RG108 Combine Harvester
Cut off the engine power, wait until all rotating parts completely stop before starting installation.
Loosen the tension pulley assembly, release belt tension, remove the old worn‑out belt.
Inspect pulleys, clean dirt, debris and rust from pulley grooves. Make sure pulleys are free of cracks and heavy wear.
Fit the new belt into the matching pulley grooves.
Important: Distinguish SB123/SB3125 and SC71 models. Install belts on correct positions. Do not mix belts of different sections.
Adjust the tension pulley to achieve proper belt tension. Too loose causes slipping; excessive tension shortens belt lifespan and damages bearings.
Rotate pulleys manually for several turns, confirm the belt seats fully in grooves without offset or twisting.
Start the machine for idle test run, check for abnormal vibration, noise or belt slipping.
Re‑check belt tension after 1‑2 hours of formal operation.
‑ Never force the belt onto pulleys with pry bars. It will damage inner fiber cords and result in premature belt failure. ‑ Replace matched belts as a complete set when multiple belts work together. ‑ Keep belts away from oil, grease and chemical solvents.
