Function
|
|
| |
Accept power output from the main gearbox or engine and distribute/transmit it to auxiliary systems (such as header drive, conveyor mechanism, track/wheel walking mechanism, depending on the model) | By combining internal gears, the speed and torque can be adjusted to adapt to different working conditions (such as high-speed operation of the cutting table vs. low-speed movement) | Provide rigid connections and bearing support for branch transmission lines to ensure stable operation of auxiliary transmission systems under load |
Technical Parameters

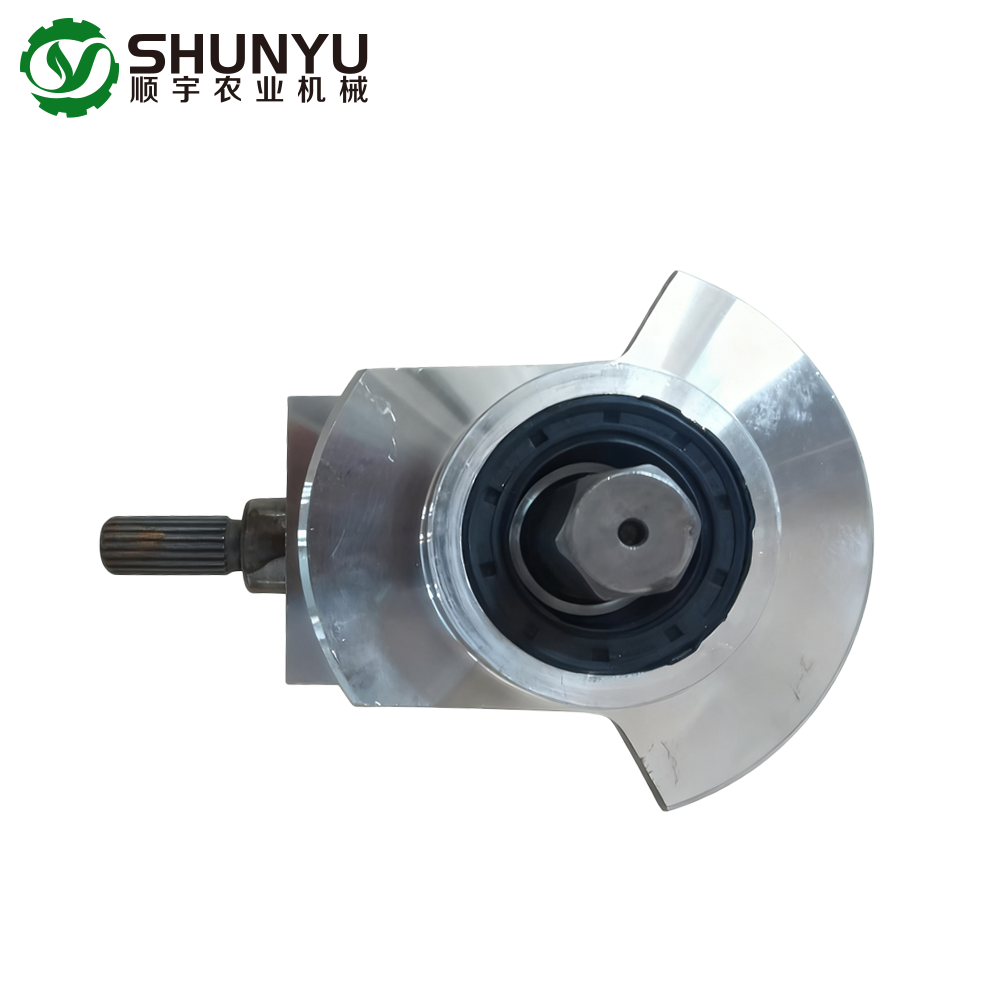

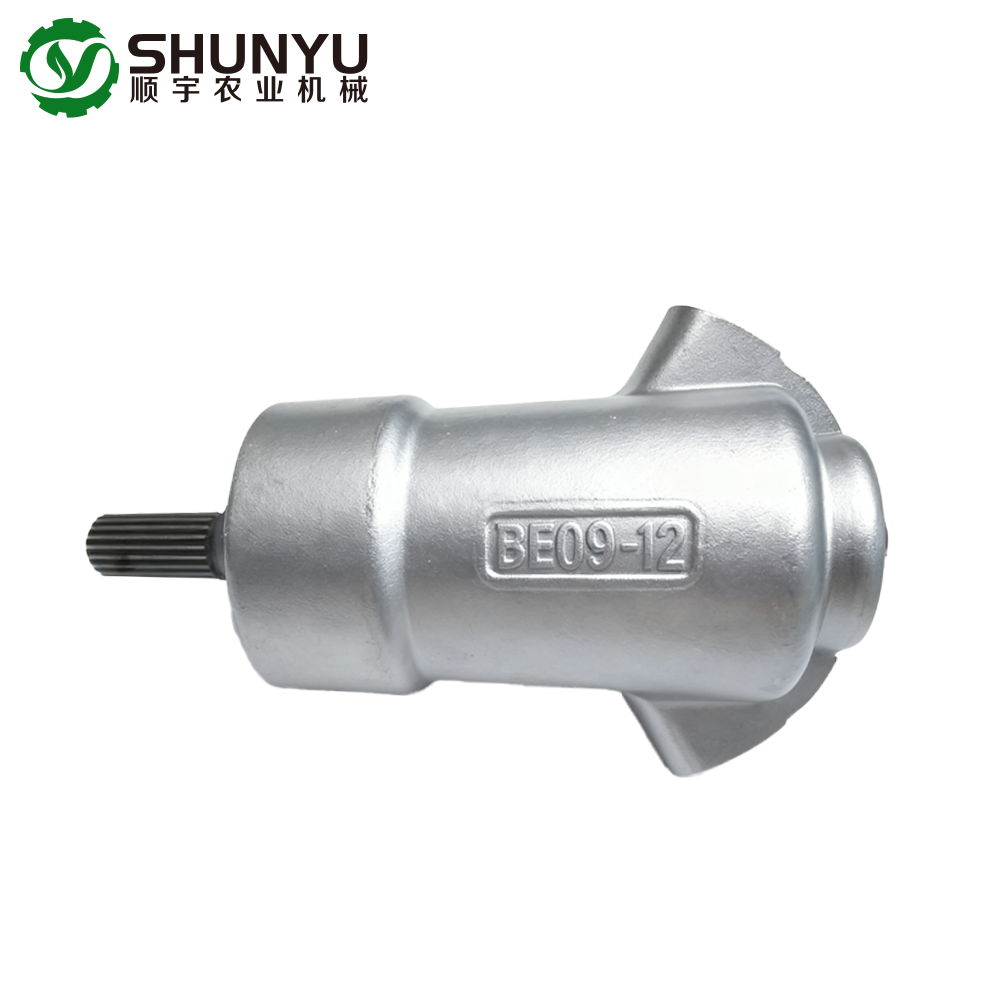

No.2 Miscellaneous Gearbox
| ITEMS | DESCRIPTION |
| Code | RGV4302070040 |
| weight | 1.75kg |
| Application | LOVOL AF108/RG108 series (auxiliary gearbox part in gear/transmission system) |
Product Uses
When the harvester enters the field to start cutting rice, the engine outputs power, which passes through the main gearbox → the second miscellaneous gearbox → the cutting blade and feeding system, thereby causing the cutting tool to reciprocate, the crop to be cut and fed into the threshing system
2. After the crops enter the threshing drum, the second miscellaneous gearbox outputs power to the drum and fan, separating the grains from the straw and completing the cleaning process
3. After the crops enter the threshing drum, the second miscellaneous gearbox outputs power to the drum and fan, separating the grains from the straw and completing the cleaning process
When the driver makes a U-turn or transition in the field, the control lever switches, and the miscellaneous gearbox cuts off the transmission of the cutting platform, only maintaining the walking function.
Product Operate Guide
Usage and maintenance suggestions
Check the oil level, oil leakage, abnormal noise or looseness of the gearbox before each season's operation.
Regularly replace the lubricating oil (it is recommended to use GL-4 or GL-5 heavy-duty gear oil according to the manufacturer's requirements).
Check if the installation bolts, key connections, and transmission shaft are worn.
If there is a decrease in cutting power, an increase in noise, or vibration during homework, the machine should be stopped in time to check the wear of the gears or damage to the bearings in the No. 2 miscellaneous gearbox
