Product Introduction
Technical Parameters

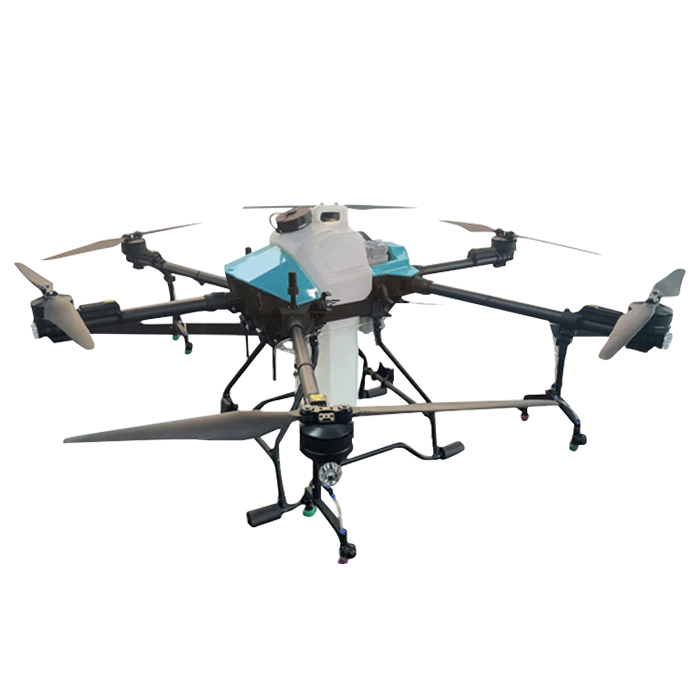

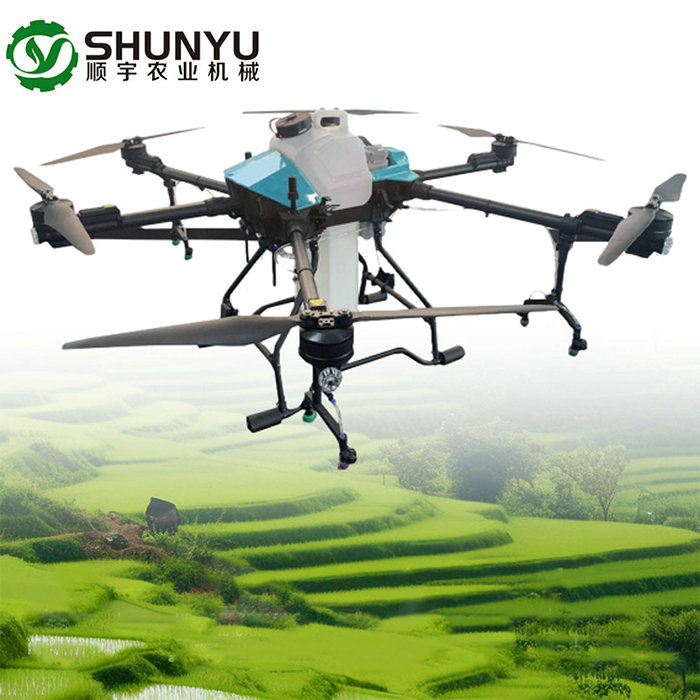

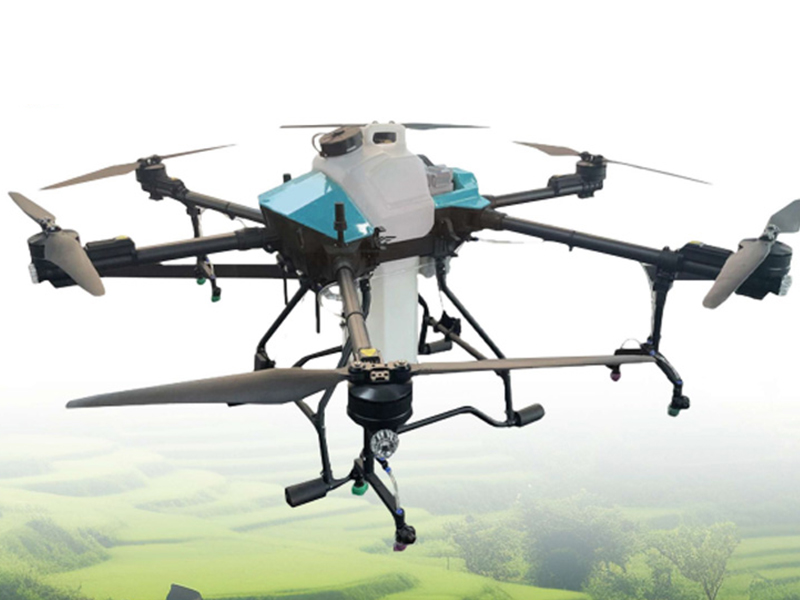

The farm protection UAV is an advanced agricultural spraying drone featuring a six-axis structural layout that balances stability and maneuverability. It is equipped with a large-capacity pesticide container and a high-pressure atomizing spraying system, ensuring uniform distribution of mist droplets. The plant protection UAV integrates GPS/Beidou navigation technology, enabling precise route planning and stable hovering. Its intelligent battery system provides reliable power support, with a design that prioritizes quick charging and long-lasting performance. The drone’s overall structure is crafted from lightweight yet durable materials, supporting heavy-load operations while maintaining flexibility. It also features an obstacle avoidance system that perceives surrounding objects to ensure safe flight. The control system is user-friendly, supporting one-click takeoff, automatic route following, and fixed-point return functions, making it accessible even to beginners after brief training.
| ·AIRCRAFT PABAMETERS | |
| Structural layout | six-axis layout |
| Maximum wheelbase | 1900mm |
| Overall dimensions | 1900mmx1825mmx855mm |
| Pesticide container capacity | 30L |
| No-load mass(exclude battery) | 34.5KG |
| No-load mass(including battery)19.95KG | 43.6KG |
| YG30 FLIGHT PARAMETERS | |
| Hovering accuracy | Radar: ±0.1m |
| Spraying full-load endurance time | 8min |
| No-load endurance time | 22min |
| Ranging accuracy of ground simulating radar | 0.1m |
| Fixed height range | 1-30m |
| Obstacle avoidance perception range | 1-30m |
| Maximum pitch angle of obstacle avoidance radar | 15° |
| Motor type | T15 |
| YG30 SPRAYING SYSTEM | |
| Type of spraying nozzle | pressure nozzle |
| Number of spraying nozzle | 6 |
| Flow of liquid pump | 8L/min |
| Operation spraying width | Optimal 10m,maximum 12m |
| YG30 CHARGER | |
| Output power of charger | 220V Single-phase input;8000w |
| YG30 SMART BATTERY | |
| Battery weight | 9kg |
| Power battery | 28000mAh |
| Battery charging time | Lithium battery 20%-95%about 15min |

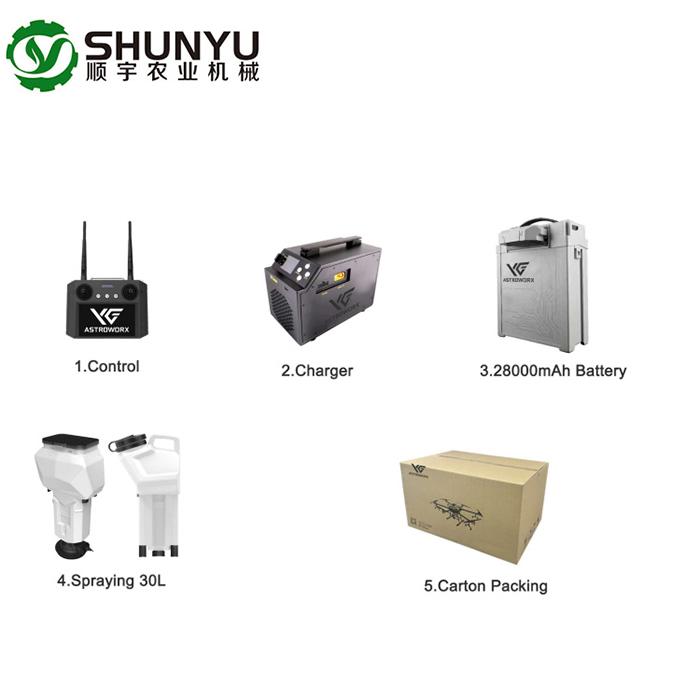

include：
1.Control
2.Charger
3.28000mAh Battery
4.Spraying 30L
5.Carton Packing
Product Uses

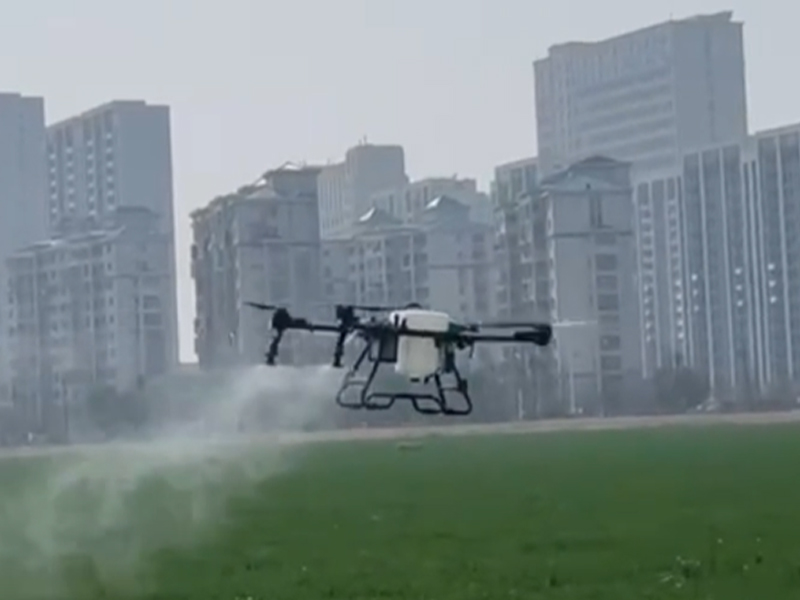

This intelligent UAV drone is versatile in agricultural applications, suitable for spraying operations on a wide range of crops, including rice, wheat, corn, cotton, fruit trees, and tea. It excels in large-scale farmland operations, where its high-efficiency spraying capability significantly reduces labor costs and improves operational speed. The high-efficiency spraying drone is also ideal for complex terrains such as hills, mountains, and terraced fields, where ground machinery is difficult to access. It can perform three-dimensional spraying in orchards and vineyards, ensuring thorough coverage of tree crowns and leaf backs that manual spraying often misses. Additionally, the drone is valuable for emergency response to sudden pest and disease outbreaks, enabling quick and widespread spraying to minimize crop losses. Beyond spraying pesticides, it can also be used for fertilization, sowing granular pesticides or seeds, integrating seamlessly with smart agriculture systems
Product Operate Guide
Before using the plant protection UAV, conduct a comprehensive inspection of the equipment. Check the drone body, motor, propellers, nozzle, and pesticide container for damage or looseness. Ensure the battery is fully charged and prepare backup batteries for extended operations. Mix pesticides strictly according to instructions to avoid clogging the nozzle. Confirm the work area is free of high-voltage lines, buildings, and gathering places for people and livestock. Check the weather conditions to ensure wind speed is within a safe range for stable flight and effective spraying.
Turn on the agricultural spraying drone and perform GPS/Beidou positioning and compass calibration to ensure accurate navigation. Use the control system to set the flight route—options include fully automatic route planning, AB point flight, or manual operation based on needs. Place the drone on a level surface, initiate one-click takeoff, and allow it to ascend slowly while confirming the spraying system is functioning properly. Maintain a consistent flight height above the crops to ensure uniform spraying, adjusting based on crop height and type. Monitor the flight status and spraying effect in real time via the remote control or ground station, making adjustments to speed or route as needed.
After completing spraying operations, clean the pesticide container and nozzle thoroughly to remove residual chemicals that could corrode the equipment. Inspect the propellers, motor, and frame for damage or overheating, and replace any worn components. Charge the battery promptly after use and store it in a cool, dry place, maintaining a moderate charge level for long-term storage. Clean the drone’s body and control system to remove dust and pesticide residues. Store the intelligent UAV drone in a dry, ventilated area away from direct sunlight and humid environments to prevent damage. Regularly check the navigation and obstacle avoidance systems to ensure they remain accurate and reliable for future use.
