Product Introduction
Technical Parameters

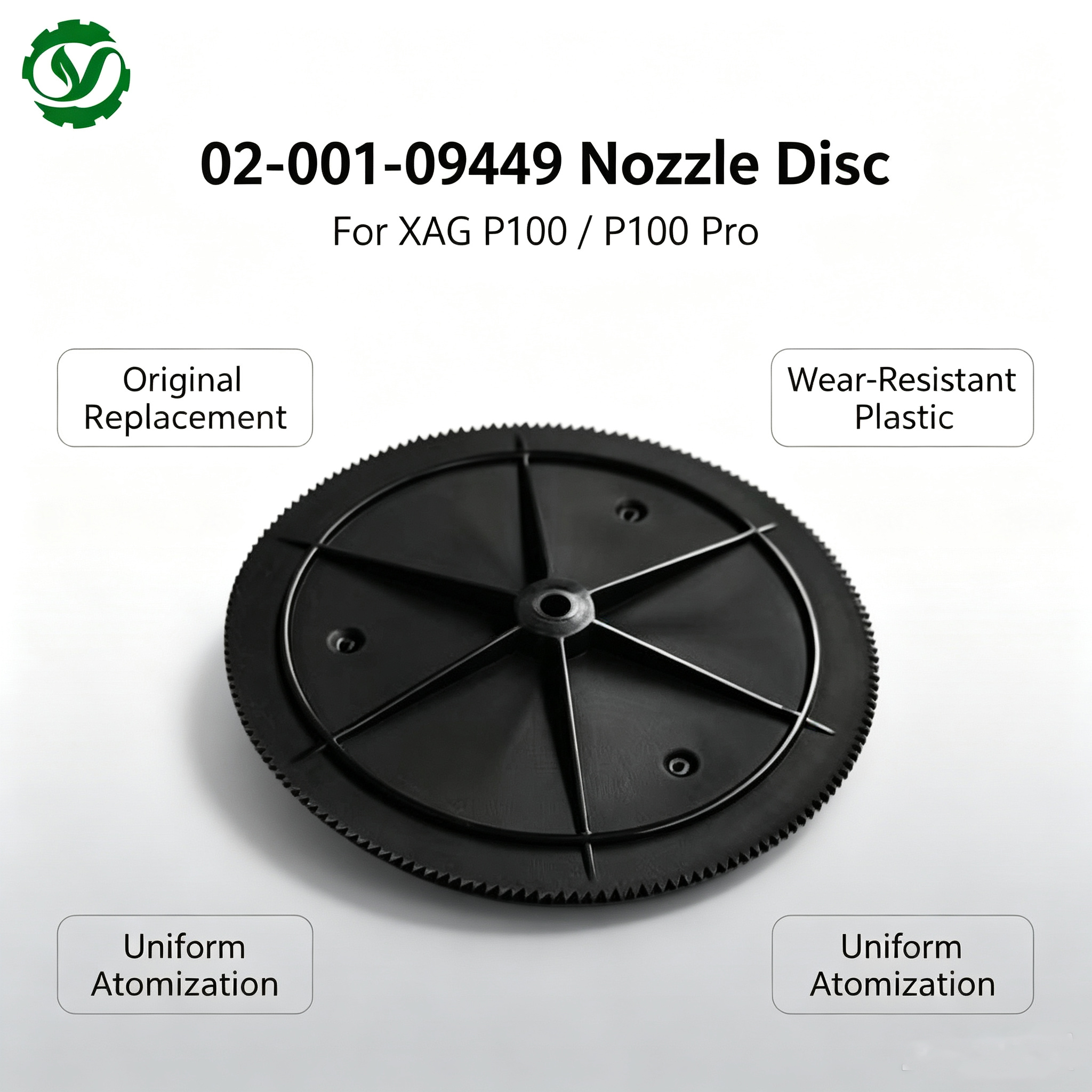

Part Number: 02‑001‑09449

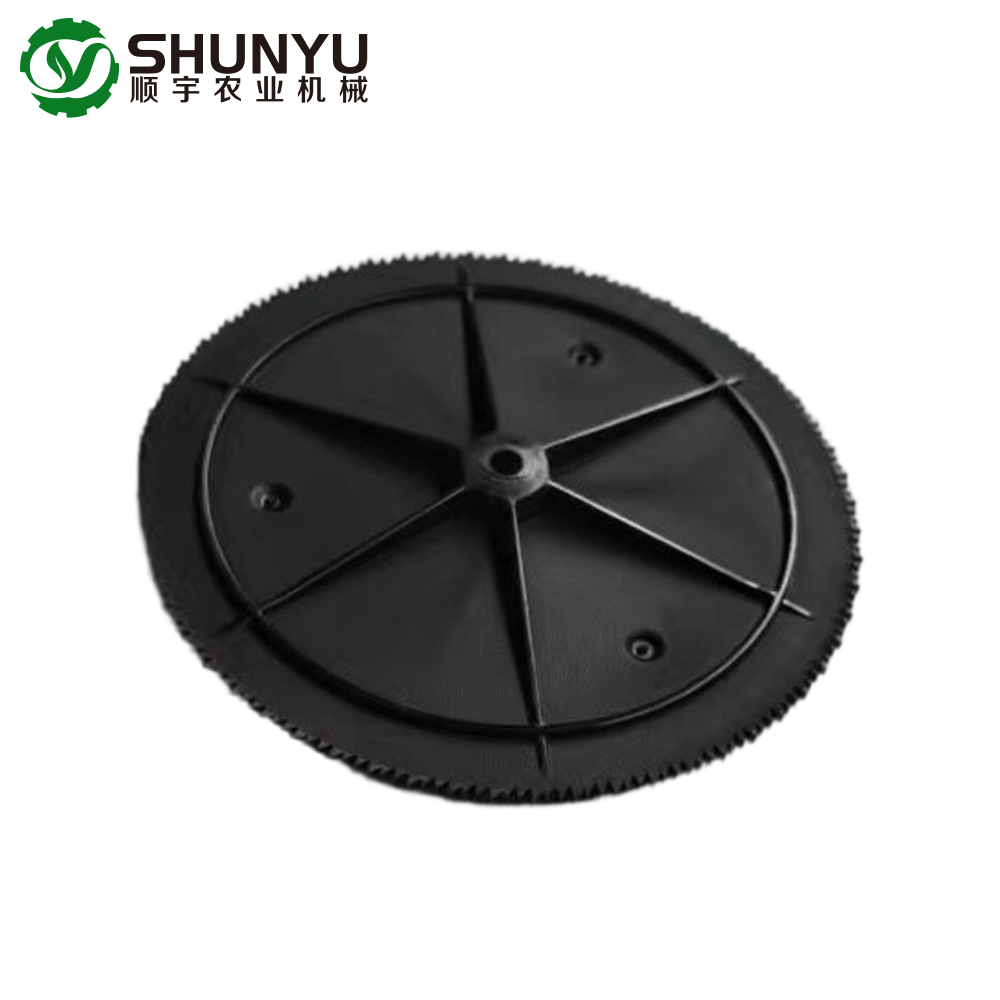

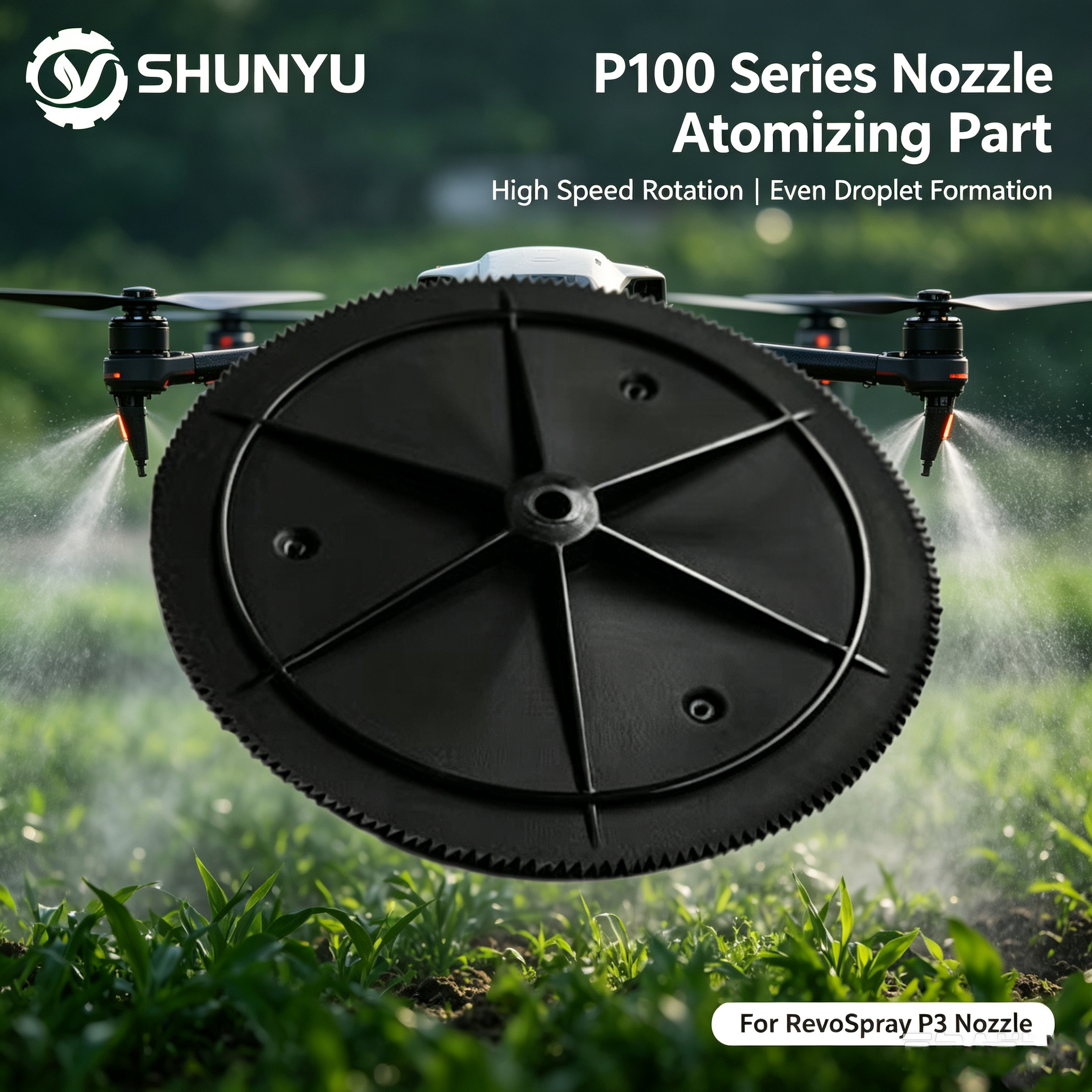

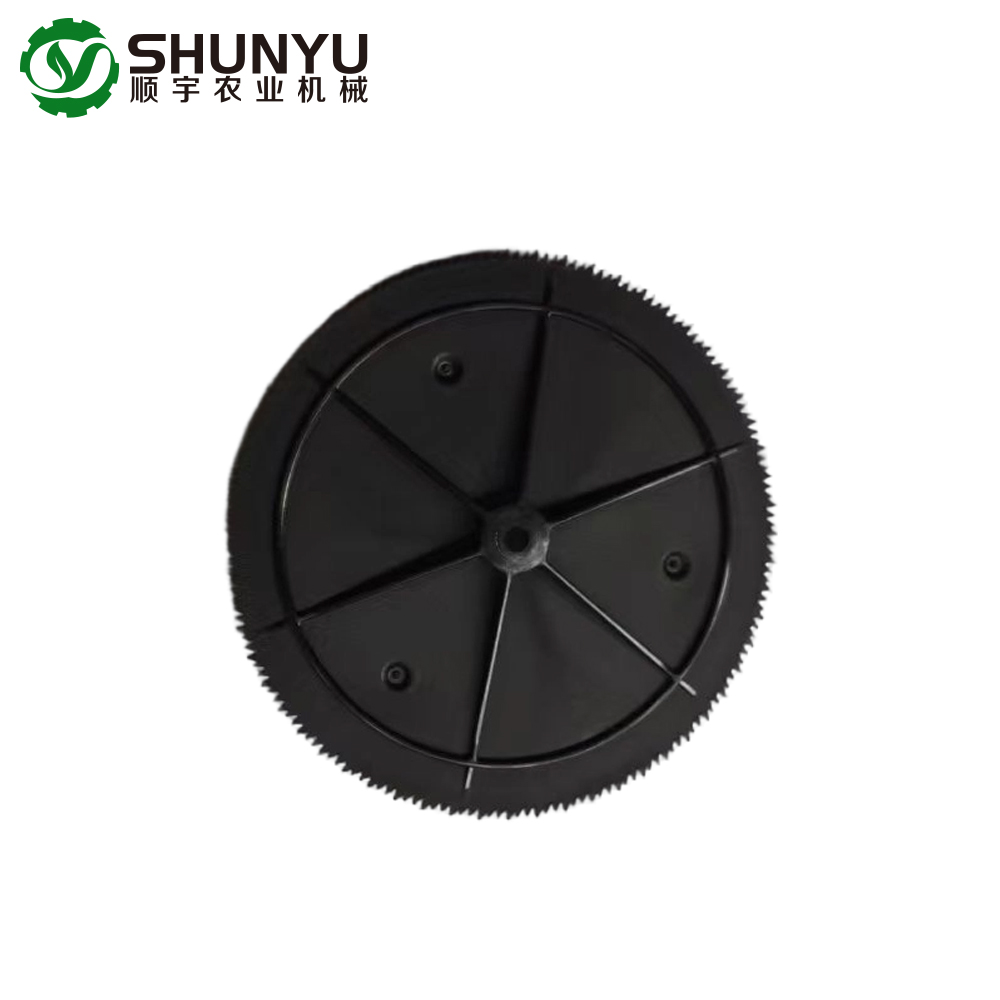

Product Name: Spray Disc
Material: Chemical‑resistant engineering plastic
Installation Position: Centrifugal nozzle assembly
Function: Centrifugal atomization for pesticide & fertilizer
Feature: Anti‑corrosion, wear‑resistant, uniform atomization
Replacement Type: Direct OEM replacement, no modification required
Product Uses
Regular maintenance of agricultural spraying drone
Troubleshooting uneven droplet, poor atomization effect
Replacement after long‑time chemical liquid operation
Field emergency repair during farm spraying mission
Spare parts stocking for drone repair service shops
Q1: What symptoms indicate spray disc needs replacement?
A1: Uneven droplet size, sparse spraying range, obvious reduction of atomization performance, surface scaling and wear on disc.
Q2: Can this spray disc fit all XAG drone models?
A2: Please confirm your drone nozzle assembly model before purchase. Different generation nozzles use different spray discs.
Q3: How to extend spray disc service life?
A3: Clean the disc after each operation to avoid chemical residue scaling; filter liquid to reduce particle abrasion.
Q4: Can worn spray disc be cleaned for continued use?
A4: Surface scaling can be cleaned, but replace directly if disc edge is worn or deformed, cleaning cannot restore atomization performance.
Product Operate Guide
Power off drone and remove battery to ensure safety.
Dismantle the nozzle housing of centrifugal spray assembly.
Take out old spray disc, clean internal cavity of nozzle.
Install new 02‑001‑09449 spray disc in correct direction.
Reassemble nozzle housing and fasten properly.
Conduct liquid test on ground, check atomization status before flight operation.
Installation Tip: Install in correct orientation. Avoid scratching disc surface, scratches will affect spraying uniformity.
