Product Description
Part No.: 02‑001‑09245

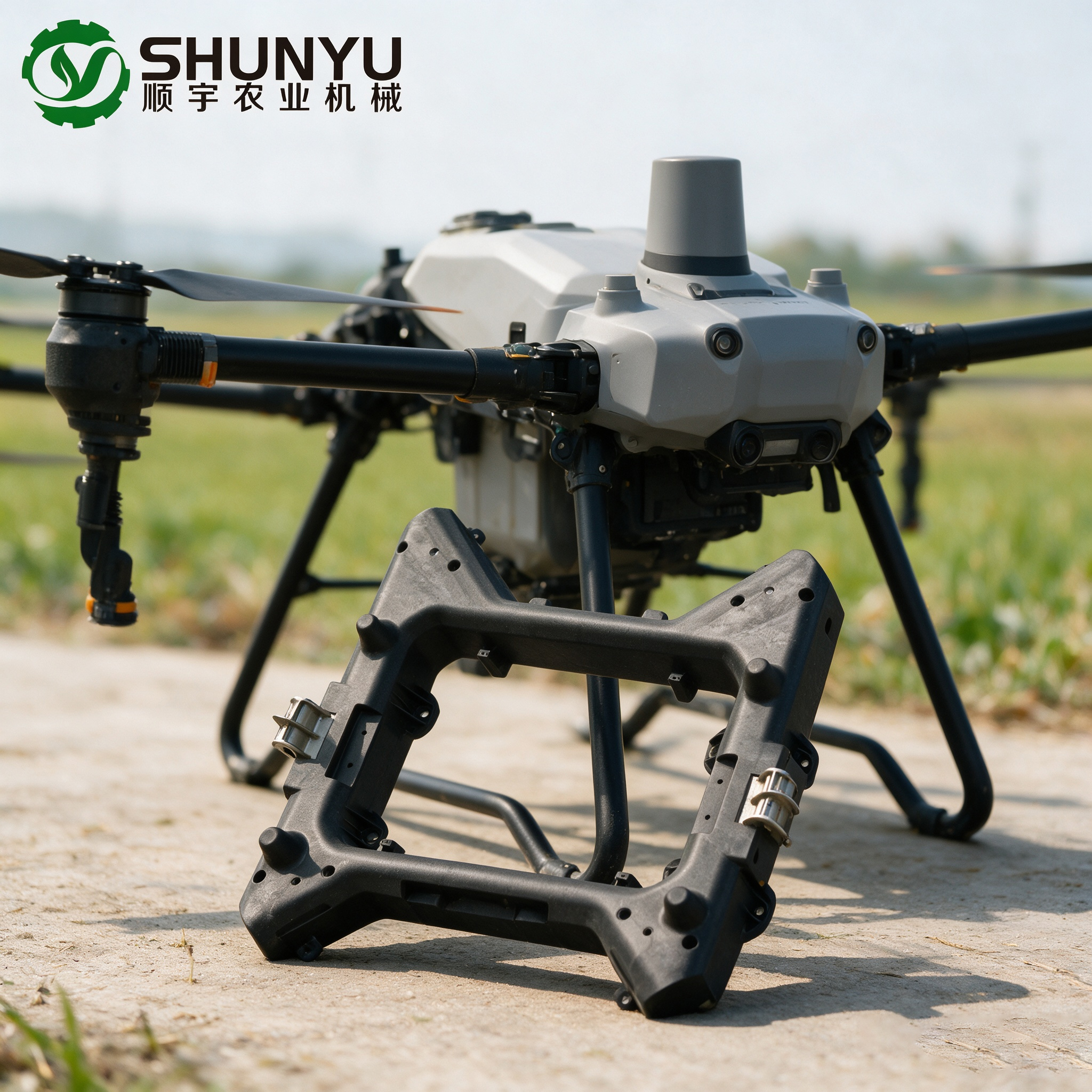

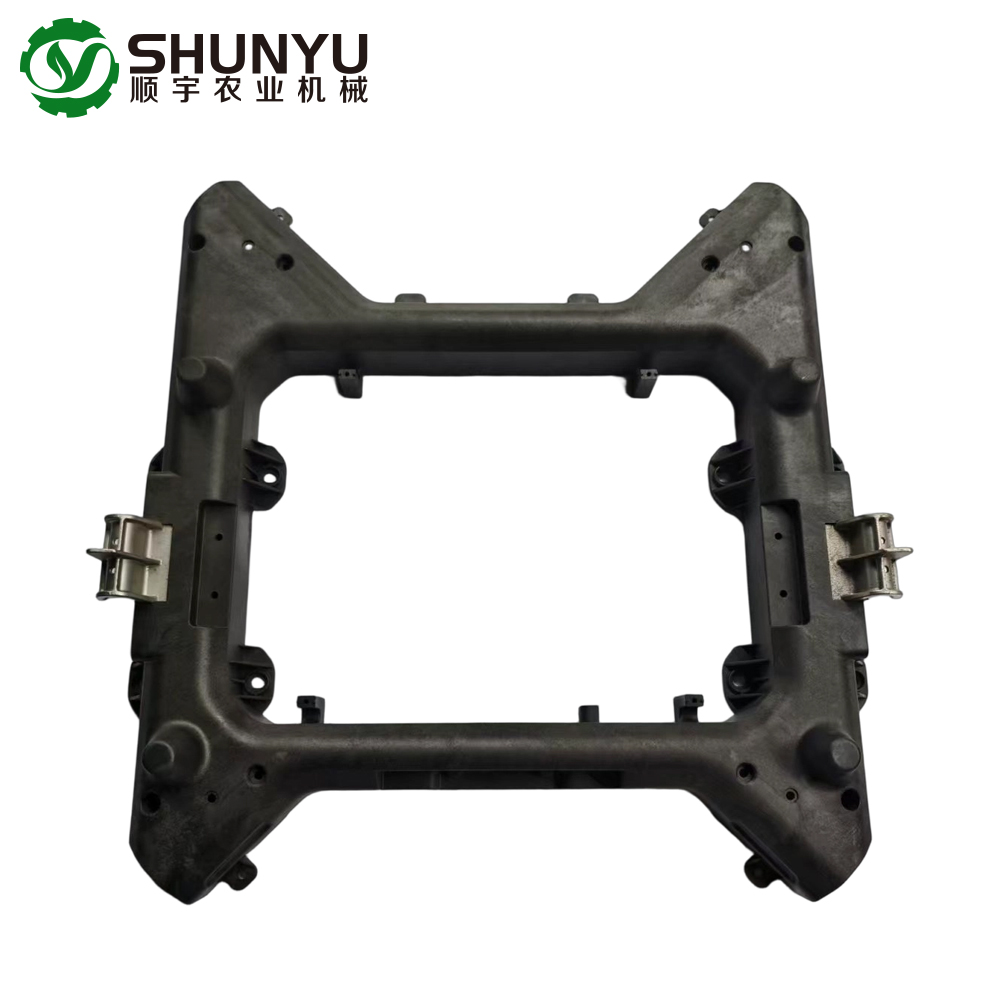

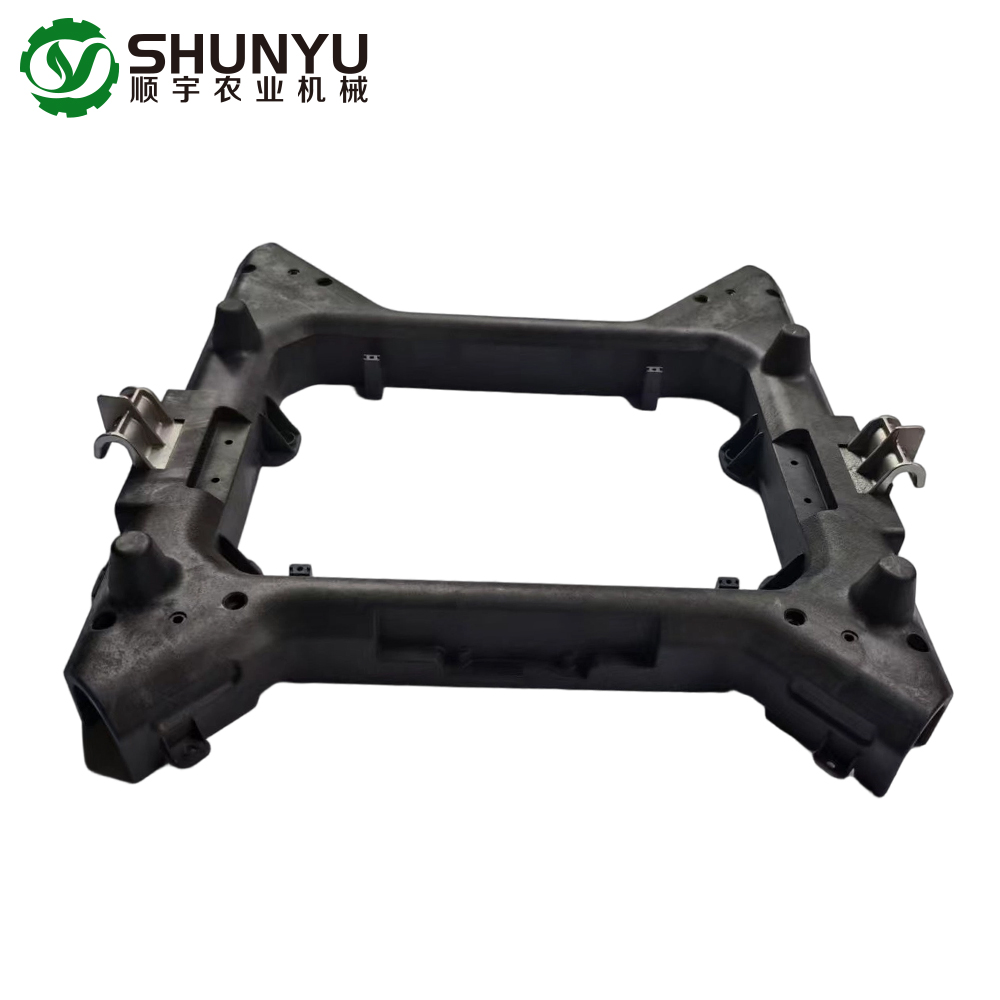

This load frame (application system upper frame) is a core structural support component for XAG P100 and P100 Pro agricultural drone. It serves as the mounting base for spray & spread task system, locks the tank assembly via quick‑release latches, bears heavy load during full‑tank spraying and fertilizing missions.
Hard landing, collision and long‑term heavy‑duty operation may cause frame deformation, crack or loose latch position. Replacing damaged load frame restores stable connection between flight platform and task pod, preventing swaying, offset mounting and hidden flight risks.
Selecting the right manufacturing partner is just as crucial as selecting the right part. We understand that large-scale fleet operators and regional service centers require absolute consistency, rapid availability, and uncompromising quality to keep agricultural operations running smoothly.
Direct-from-Manufacturer Value: By streamlining the supply chain, we provide premium structural components at highly competitive rates, allowing you to optimize your maintenance budgets without sacrificing quality or safety.
Stringent Quality Assurance: Every batch of brackets undergoes rigorous stress and dimensional testing before leaving our facilities, ensuring that every single unit you receive performs identically to the original equipment.
Scalable Supply Capabilities: Whether you are stocking up for a seasonal overhaul or maintaining a continuous inventory for a busy repair hub, our robust production capacity guarantees you will never face debilitating stockouts.
Expert Technical Support: Our team possesses deep knowledge of agricultural drone mechanics, ready to provide guidance on installation protocols, lifecycle management, and fleet-wide structural upgrade strategies.
To assist procurement managers and technical maintenance teams in making informed decisions, we have compiled the most critical inquiries regarding the installation, function, and lifecycle of this front module bracket.
A: It secures and supports front-mounted modules, ensuring stable operation during flight by mitigating vibrations and bearing aerodynamic loads.
A: It is specifically designed for XAG P100 / P100 Pro. Attempting to modify it for other chassis is not recommended as it may compromise structural integrity.
A: No, it features a precise fit design for quick and easy installation. Technicians simply need to align it with the original mounting holes on the fuselage and secure it using standard screws and fasteners.
A: Yes, immediate replacement is strongly recommended if any deformation, micro-cracking, or looseness occurs to prevent catastrophic payload failure during flight.
A: It is a durable structural component, but regular inspection is advised under heavy use. High-intensity spraying operations expose the drone to extreme stress, making routine checks a necessary part of fleet management.
A: By utilizing a standardized, exact-match design, maintenance crews can replace damaged mounts in minutes in the field, significantly reducing aircraft downtime during critical planting or harvesting windows.
Technical Parameters
Part Number: 02‑001‑09245
Product Name: Application System Upper Load Frame
Compatible Drone: XAG P100, XAG P100 Pro
Material: High‑strength reinforced engineering plastic
Installation Position: Between drone main body and spray / spread task system
Function: Structural support, quick‑lock mounting base for task pod
Replacement Type: Direct OEM replacement, no modification required
Product Uses
Farm drone crash & collision repair: Replace deformed or cracked frame after hard landing
Routine overhaul: Inspection and replacement during periodic full‑machine maintenance
Abnormal task‑pod shaking: Solve swaying, offset and unstable locking of spray tank assembly
Task‑system swap: Ensure reliable locking when frequently switching spraying / spreading pods
Field workshop repair: Essential spare part for agricultural drone service & repair shops
Q1: What problems will a damaged load frame cause?
A1: Deformed or cracked load frame leads to poor locking of task system, tank swaying in flight, shifted center of gravity, increased vibration, and even risk of task‑pod falling in severe cases.
Q2: Can this frame fit other XAG drone models?
A2: This part is exclusively for XAG P100 and P100 Pro. It cannot be used for P60, P150 or older V‑series drones due to different dimension and latch layout. Please verify drone model before ordering.
Q3: Is professional installation required for this component?
A3: It is a key load‑bearing structural part. We recommend installation by experienced drone technicians. Incorrect mounting will affect flight safety.
Q4: Do I need to replace latches together with the frame?
A4: Inspect quick‑release latches while replacing the load frame. Replace worn latches if they cannot lock tightly.
Product Operate Guide
Installation GuidePower off the drone and remove battery for safety before disassembly.

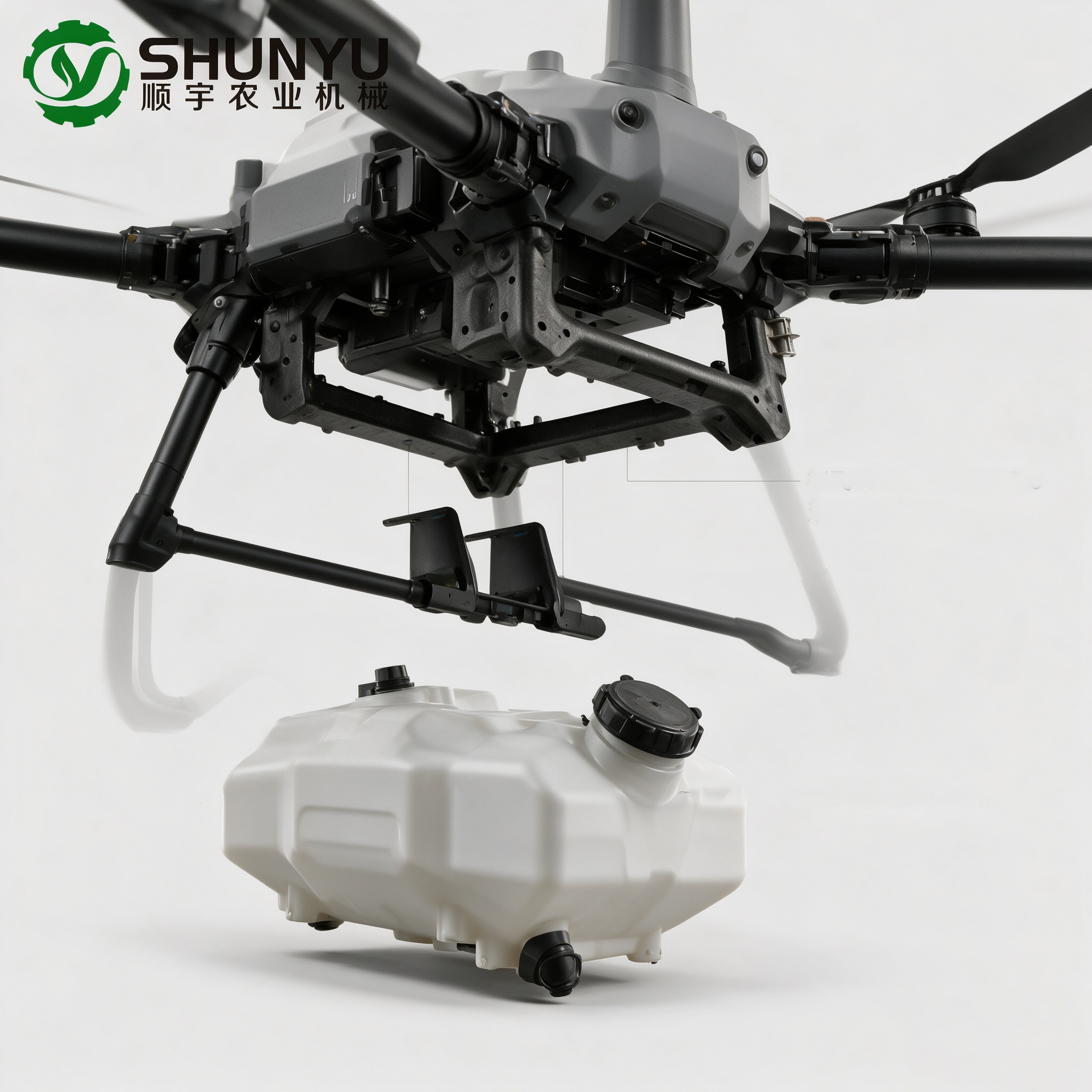

Dismount spray / spread task pod, release all quick‑release buckles connected to load frame.
Remove fixing screws, take down the old damaged load frame.
Clean the contact mounting surface on main fuselage, remove dirt and debris.
Fit the new 02‑001‑09245 load frame in position, fasten all screws to specified torque.
Re‑install task system pod, engage quick‑release latches and confirm firm locking.
Manually shake the task pod to check no loose play. Complete ground test before formal flight.
Installation Tip: Do not use deformed screws. Ensure every latch clicks fully locked, otherwise heavy‑load flight will bring safety hazard.
