Product Introduction

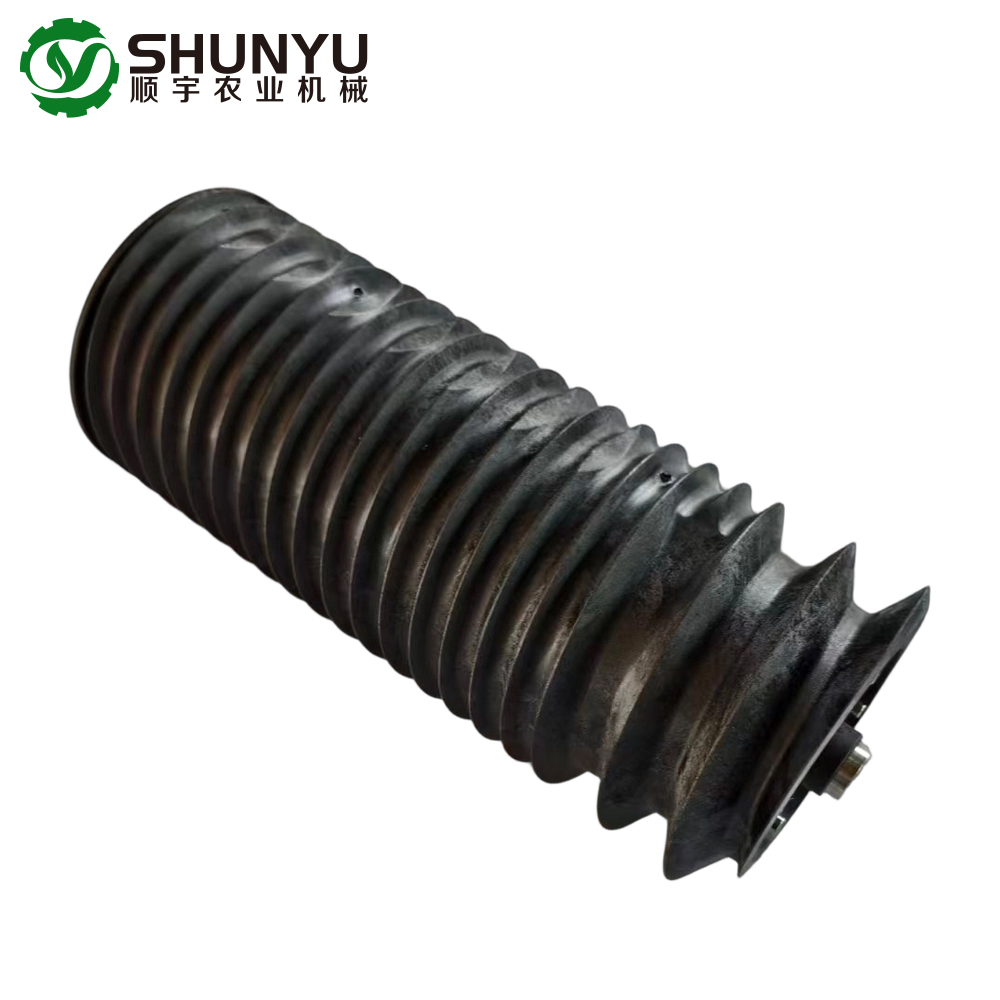

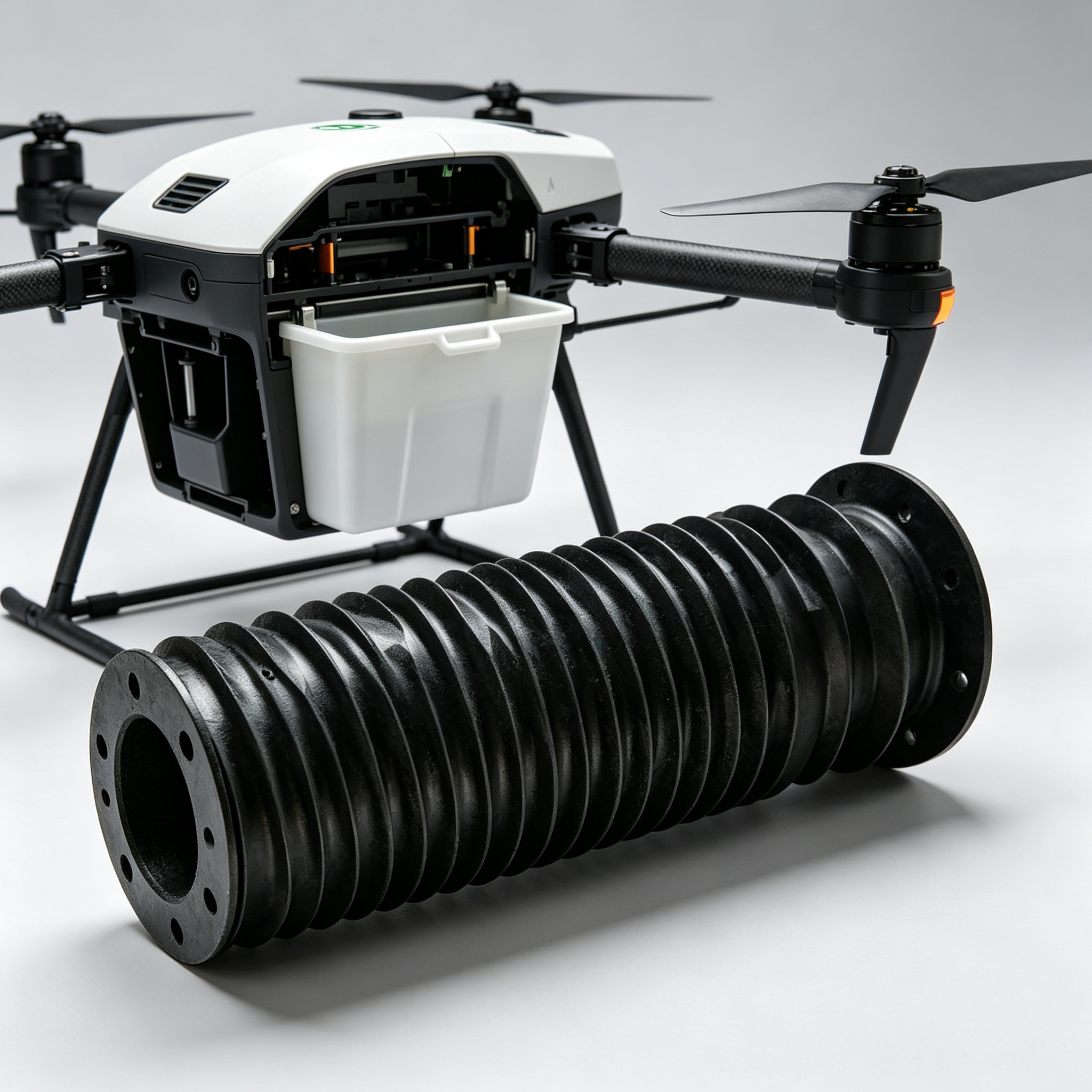

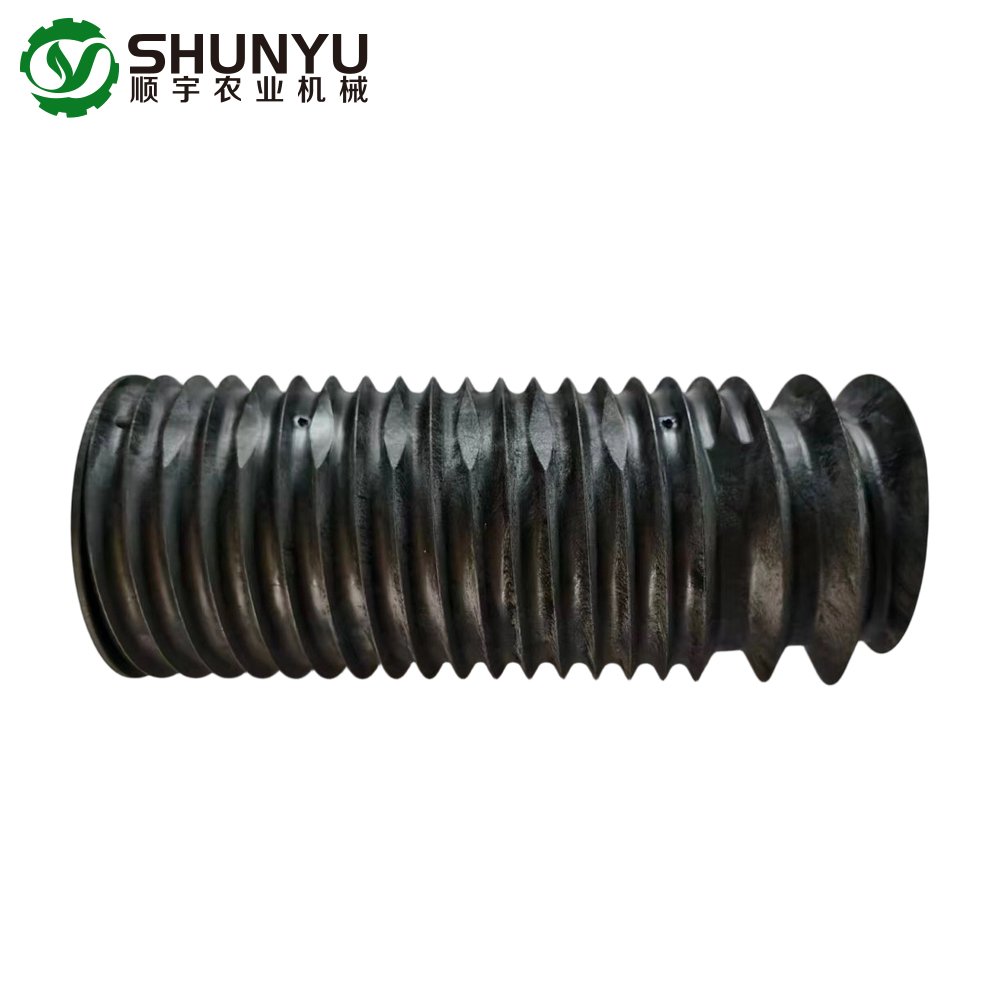

This small spiral auger is the precision feeding component matched for XAG RevoCast 4 aerial spreading system. It features compact spiral pitch to achieve low and steady material flow, perfectly meeting precise low-dose spreading requirements for small seeds and fine powdery materials.
Part Number: 05-002-02172, RevoCast 4 Small Auger
Narrow spiral pitch for low-rate, accurate feeding control
High-strength wear-resistant material, anti-corrosion against agricultural powder & chemical dust
Smooth material conveying, greatly reduce blockage of fine materials
Original precise dimension, direct replacement without modification
Quick disassembly for daily cleaning and maintenance
Technical Parameters
Selection Guide
Large Auger: High flow rate for urea, compound fertilizer
Medium Auger: Medium flow for rice seeds, general feed pellets
Small Auger: Low & precise flow for fine powder, tiny seeds
Package Includes: 1 × Small Auger (05-002-02172)
| Specifications \ Product | 22-23 Model Small Auger - Left/Right | 24-25 Model Small Auger | 26 Model Small Auger |
|---|---|---|---|
| Compatible Drones | V50 2022 Agricultural DroneP80 Upgrade 2022 Agricultural DroneP100 2022 Agricultural DroneP100 Pro 2023 Agricultural DroneV50 Pro 2023 Agricultural DroneP100 2023 Agricultural DroneV50 2023 Agricultural Drone | P60 2024 Agricultural DroneP150 2024 Agricultural DroneP60 Pro 2025 Agricultural DroneP150 Pro 2025 Agricultural Drone | P60 2024 Agricultural DroneP150 2024 Agricultural DroneP60 Pro 2025 Agricultural DroneP150 Pro 2025 Agricultural DroneP120 2026 Agricultural DroneP200 2026 Agricultural DroneP150 Ultra 2026 Agricultural Drone |
| Application Notes | Spanning all columns:The 26 Model Large / Medium / Small Augers are backward compatible with 24 & 25 model drones.22-23 Model and 24-25 Model Large/Medium/Small Augers CANNOT be used on 26 model drones. | ||
| Application Scenarios | For spreading fine particles (such as rapeseed) | ||
Product Uses
Fine powder (sulfur powder, lime powder), tiny seeds (rapeseed, pasture seeds), small granular pesticides & feed pellets.
OEM Replacement Part：SKU 05-002-02172 Small Auger for XAG RevoCast 4
Specially engineered for XAG RevoCast 4 spreader system
Low-volume stable feeding, excellent for precision seeding & powder spreading
Wear-resistant construction, long service life under continuous farm operations
Smooth material transfer, lower clog risk for fine particles
Exact original size, plug-and-play installation without extra machining
Easy to detach and wash after each operation

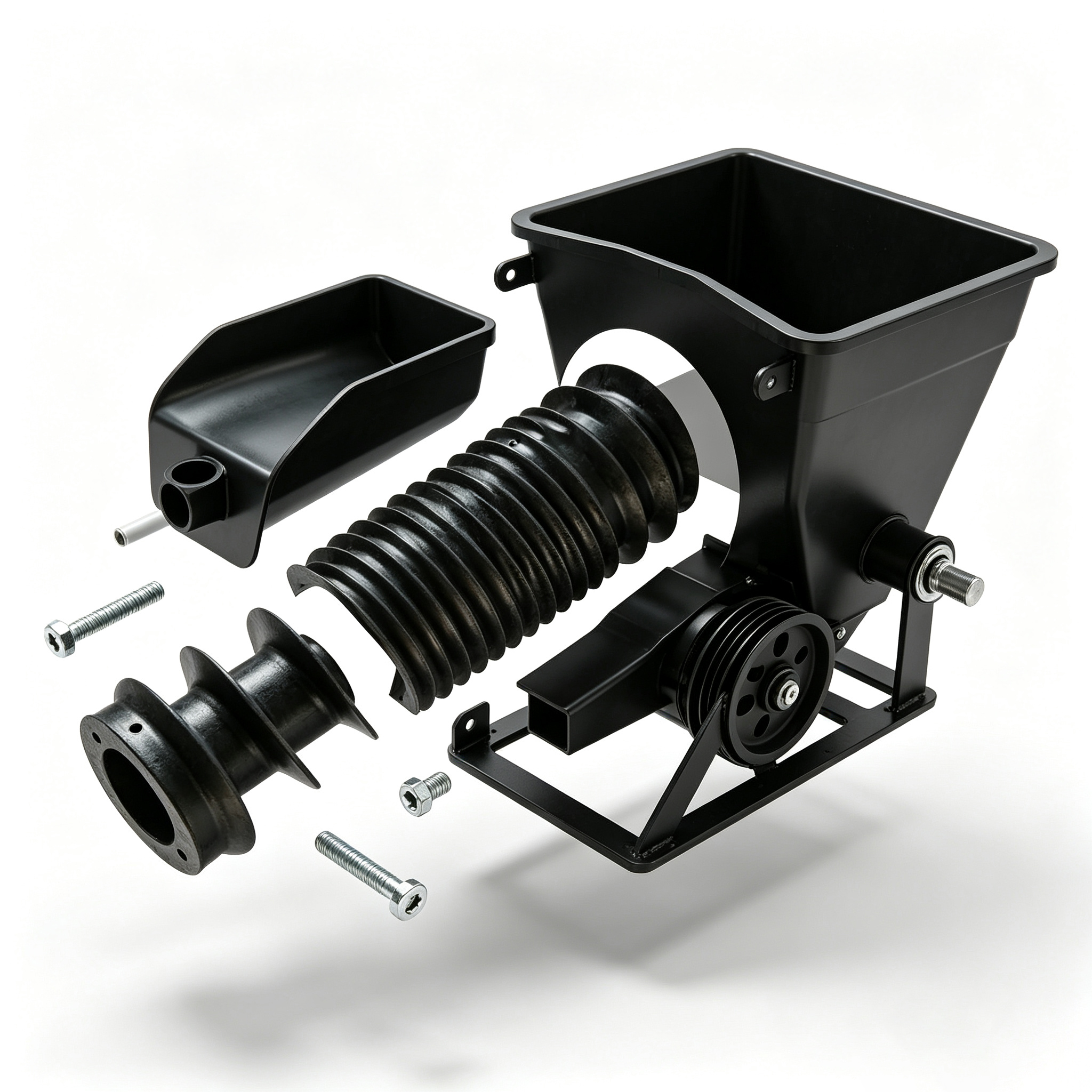

Product Operate Guide
Power off the drone and disconnect battery before replacing the auger.
Open the spreader housing and remove the worn original auger.
Install the 05-002-02172 small auger and align it with the drive shaft.
Tighten fixing screws evenly; avoid over-tightening to prevent component damage.
Rotate the auger manually to confirm no friction or jamming.
Run an empty test before formal field spreading operations.
Clean residual powder and seeds after every operation to avoid material caking and corrosion.
Do not use this auger for large-particle fertilizer, which may cause blockage and abrasion.
Inspect regularly; replace immediately if blades show deformation or heavy wear.
Store in dry conditions during long idle periods.
This auger only fits RevoCast 4 system, NOT compatible with RevoCast 3 / RevoCast 6.
Designed for fine powder & tiny seeds; not recommended for large granular fertilizers.
