Product Introduction
Technical Parameters

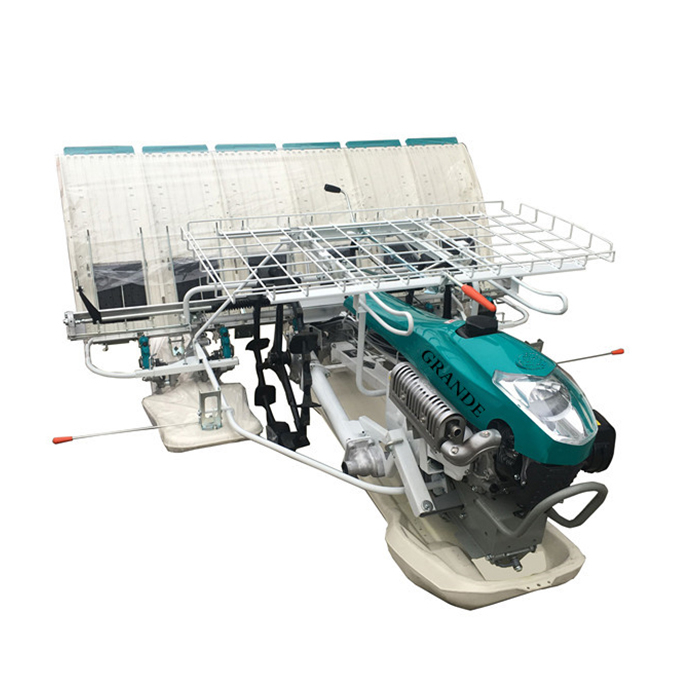

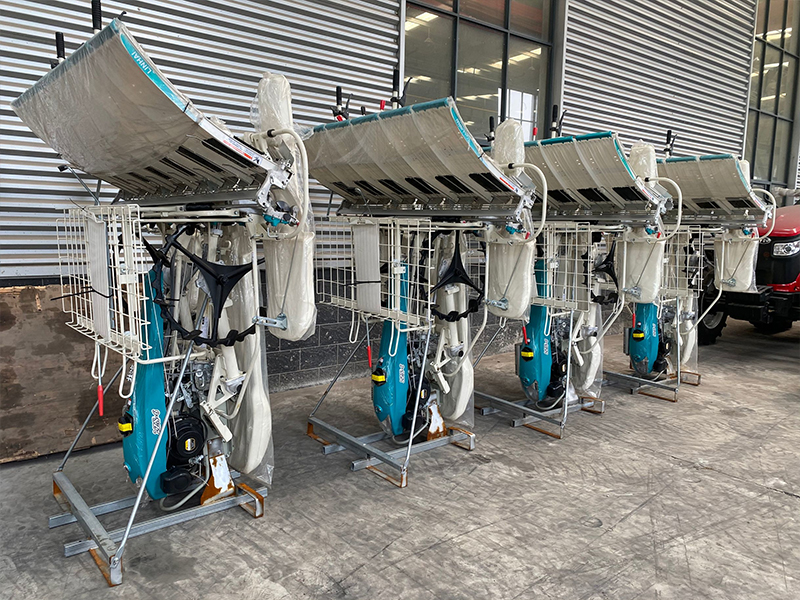

This 6 rows rice transplanter features a two-wheel, three-floating-plate structural design that ensures stability on uneven paddy surfaces. Powered by a four-stroke gasoline engine, it offers reliable performance with smooth power delivery for consistent transplanting. The ergonomic walking design allows operators to maintain control with minimal fatigue, while the adjustable handlebars accommodate different user heights. The transplanting mechanism adopts a crank rocker structure, ensuring precise seedling placement with adjustable row spacing, plant spacing, and transplanting depth. The lightweight yet sturdy frame—crafted from high-quality materials—balances durability with maneuverability, making it easy to transport and operate in narrow field ridges. The machine’s compact profile and small turning radius enhance flexibility, even in scattered or irregularly shaped plots.
| ITEMS | DESCRIPTION | |
| type | 2GLD-6AK | |
| structural type | Two wheels three floating plates type | |
| walking-wheel / diameter（mm） | 660 | |
| Work-part structural type | crank rocker type | |
| profile size(length×width(work)×height） | 2370*1930（2280）*930 | |
| total weight（kg） | 195 | |
| auxiliary power | type、name | MZ175f our-stroke gasoline engine |
| Output power（kW） | 3.8/3600 | |
| speed r/min | ||
| variable speed series | forewords two gears, backwards one gear | |
| work | productivity (hm2/h) | 0.1-0.32 |
| work speed（ km/h） | 1.22-2.77 (no skidding) | |
| ability | walk speed on road（km/h） | 2.09-5.33 |
| transplanting depth（mm） | 4-40 | |
| Planting density | work lines | 6 |
| line distance of transplanting seedling（mm） | 300 | |
| transverse taking seedling(mm/number) | 15.6/18、14/20、10.8/26 | |
| longitudinal taking seedling（mm） | 8月17日 | |
| Seedling distance of transplanting seedling（mm） | 120、140、160、180、210 | |
| nummber of holl/ 3.3m2 | 90、80、70、60、50 | |
| Number of seedling / holl (seedling) | 2月8日 | |
| ※ The company change the specifications above without notice. | ||
Product Uses
Family farms: Perfect for small-scale rice cultivation, replacing labor-intensive manual transplanting and reducing labor costs.
Smallholder farmers: Ideal for those with limited funds, offering an affordable mechanization solution with low fuel consumption and simple maintenance.
Agricultural contractors: Suitable for servicing multiple small plots, thanks to its quick setup and easy maneuverability.
Small and scattered plots: The compact design and small turning radius make it easy to navigate narrow field ridges and irregularly shaped fields.
Hilly and mountainous rice paddies: Performs efficiently on uneven terrain where large, mounted transplanters struggle to operate.
Standard paddy fields: Adapts to different soil conditions, from wet clay to loamy soil, ensuring consistent transplanting across diverse environments.
This transplanter is designed for rice seedling transplanting, supporting various seedling tray types and seedling ages. The adjustable planting density promotes optimal growth conditions, facilitating uniform water, nutrient, and sunlight distribution. Neatly planted seedlings also simplify subsequent field management tasks, such as fertilization, pesticide application, and harvesting, leading to higher overall crop quality and yields.
Product Operate Guide
Start by inspecting the rice transplanter for any damage, ensuring the seedling claws, transplanting mechanism, and engine components are in good condition. Check fuel, oil levels, and chain lubrication to guarantee smooth operation. Prepare seedlings with strong root systems and appropriate age, arranging them neatly on the seedling tray. Adjust key parameters—including row spacing, plant spacing, and transplanting depth—according to agronomic requirements and soil conditions. Test the engine by starting it, allowing it to preheat, and verifying that all moving parts operate smoothly.

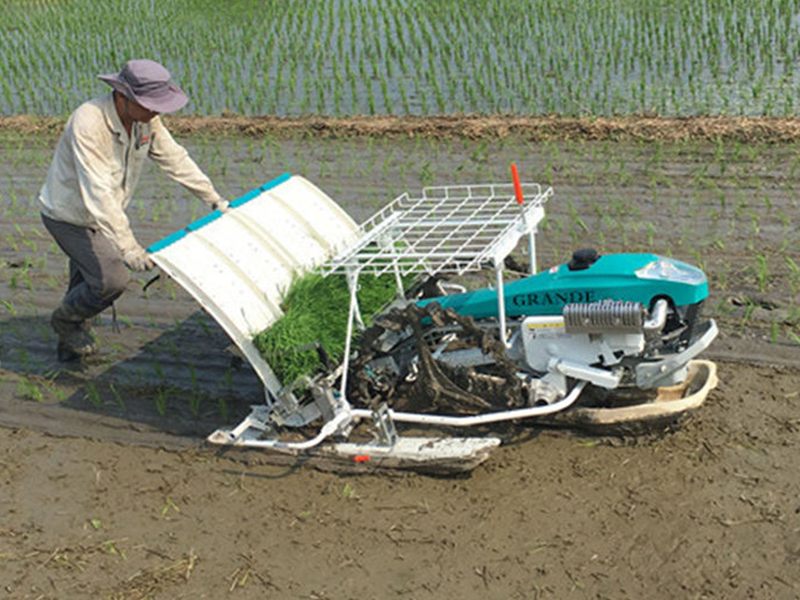

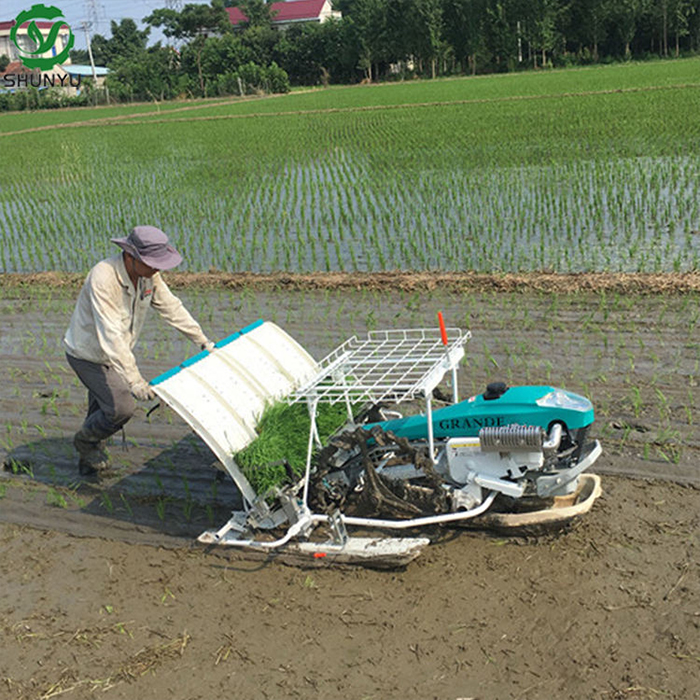

Push the transplanter into the paddy field, engaging the transplanting gear and gradually lowering the transplanting components. Maintain a steady walking speed to ensure uniform seedling placement, avoiding sudden stops or speed changes. Keep the machine on a straight path to maintain consistent row spacing, adjusting direction gently when needed. When turning, lift the transplanting section first to prevent damage to seedlings or the transplanting mechanism. Monitor seedling supply regularly, replenishing the seedling tray promptly to avoid gaps in planting. If the machine encounters thick mud or obstacles, reduce speed to prevent sinking or damage.
After use, thoroughly clean the 6 rows walking rice transplanter—focusing on seedling claws, chains, and the seedling platform—to remove mud and crop residues. Inspect the transmission chain and gear parts, adding lubricating oil as needed to prevent rust and wear. Check for any loose bolts or damaged components, tightening or replacing them promptly. Store the machine in a dry, covered area to protect it from rain and moisture. For long-term storage, drain fuel and oil, and clean key components to ensure readiness for the next planting season.
