CW & CCW Foldable High Performance Propellers | Compatible With All XAG Agricultural Drones | Plant Protection Drone Accessories

Core Selling Points

1. Perfect Compatibility With Full Range XAG Drones
   Universal matching for XAG P60, P60 Pro, P100 Pro, P120, P150, P150 Ultra, P150 ProI, P200 plant protection drones, reserved standard mounting holes, directly replace original propellers without modification.
2. Carbon Fiber Composite, High Toughness & Wear Resistance
   Blade made of carbon fiber + reinforced nylon composite material, lightweight, high tensile strength, resistant to bending deformation during high-speed rotation. Anti-corrosion against pesticide mist, fertilizer liquid and outdoor UV sunlight, not easy to crack or break after long-term farm operation.
3. Foldable Structure, Easy Transportation & Storage
   Built-in folding hinge design, blades fold closely against drone arms after finishing work. Effectively prevent blade collision and breakage during vehicle transportation and warehouse storage, save over 40% storage space compared with fixed propellers, convenient for fleet cross-region job transfer.
4. Aerodynamic Optimization, Energy Saving & Stable Flight
   Wind-tunnel tested streamlined airfoil, low wind resistance during rotation, stronger lifting power while reducing motor load and power consumption. Matched CW+CCW combination counteracts torque perfectly, reduces fuselage vibration drastically, enables stable hovering even in windy farmland, realizes uniform spraying effect.
5. Clear Identification Marking, Prevent Wrong Installation
   Each blade is printed with obvious CW/CCW direction mark, easy to distinguish during replacement. Precision punching at blade root fits original propeller clips tightly, no shaking during high-speed spinning, effectively prevent eccentric wear of blade root.
6. Wide Application For Spraying & Seeding Scenarios
   Satisfy multi-scene agricultural work including pesticide spraying, fertilizer spreading, grain seeding, granular spreading, one set of propellers adapts to multiple operational tasks of agricultural drones.

Specifications

• Type: CW clockwise folding propeller / CCW counter-clockwise folding propeller

• Material: Carbon fiber composite

• Feature: Foldable, high performance, shock-resistant, pesticide corrosion resistant

• Compatible Models: XAG P60/P60Pro/P100Pro/P120/P150/P150Ultra/P150ProI/P200

• Usage Rule: CW & CCW must be used in pairs for normal flight

Package Options

Product Description

• Propellers sold in our store are packed in sets of 2. Purchasing 1 unit contains 2 propeller blades. The tip direction of propellers may be mixed during shipment. As long as the two propellers installed on the same motor arm have consistent tip directions, normal flight will not be affected.

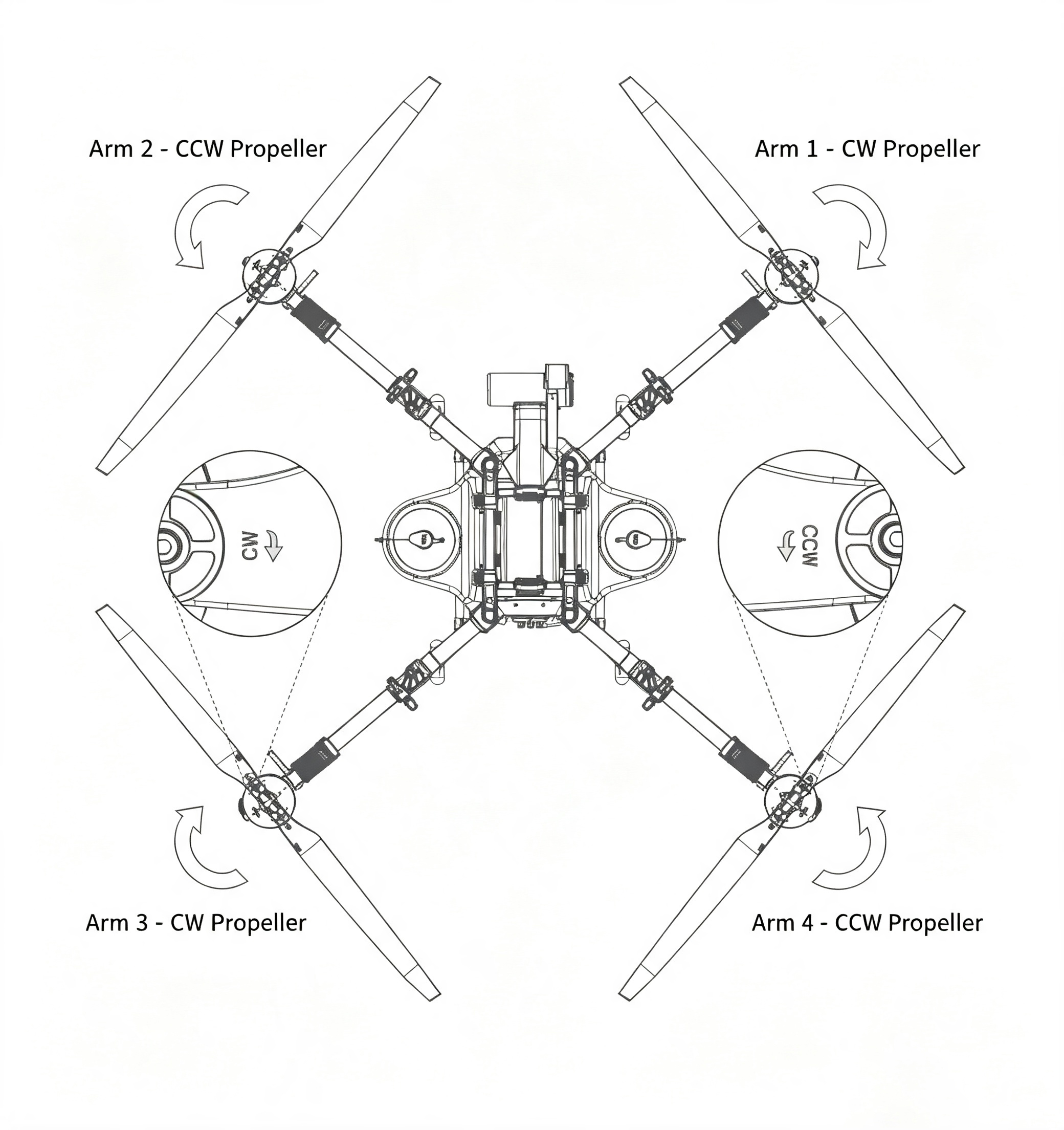

• Arm No.1 & No.3 adopt counter-rotating propeller configuration (CW propellers, marked with white edge).

• Arm No.2 & No.4 adopt clockwise propeller configuration (CCW propellers, marked with red edge).

• Take the nose facing forward as the front direction: the left side of the nose is the left arms, and the right side is the right arms.

  Arm arrangement: Front Right = No.1, Front Left = No.2, Rear Left = No.3, Rear Right = No.4.

  Installation rule: Arm 1 & 3 use white-marked CW propellers; Arm 2 & 4 use red-marked CCW propellers.

• Replace propellers strictly according to matching marks. Improper installation will cause drone rollover and crash hazards.

Compatibility List

• 63-inch propeller: Fits P120 2026 / P150 Ultra 2026 / P150 Pro 2025

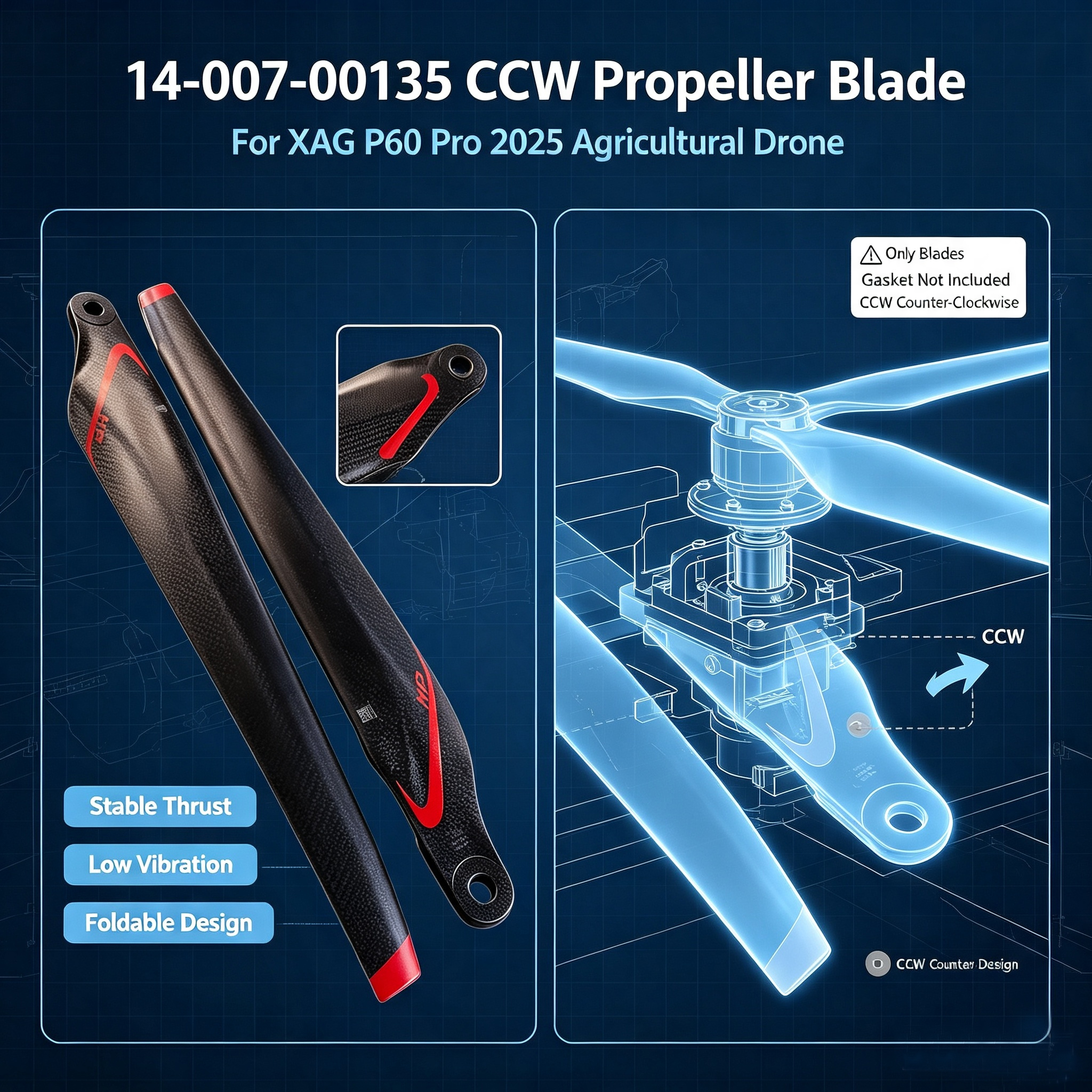

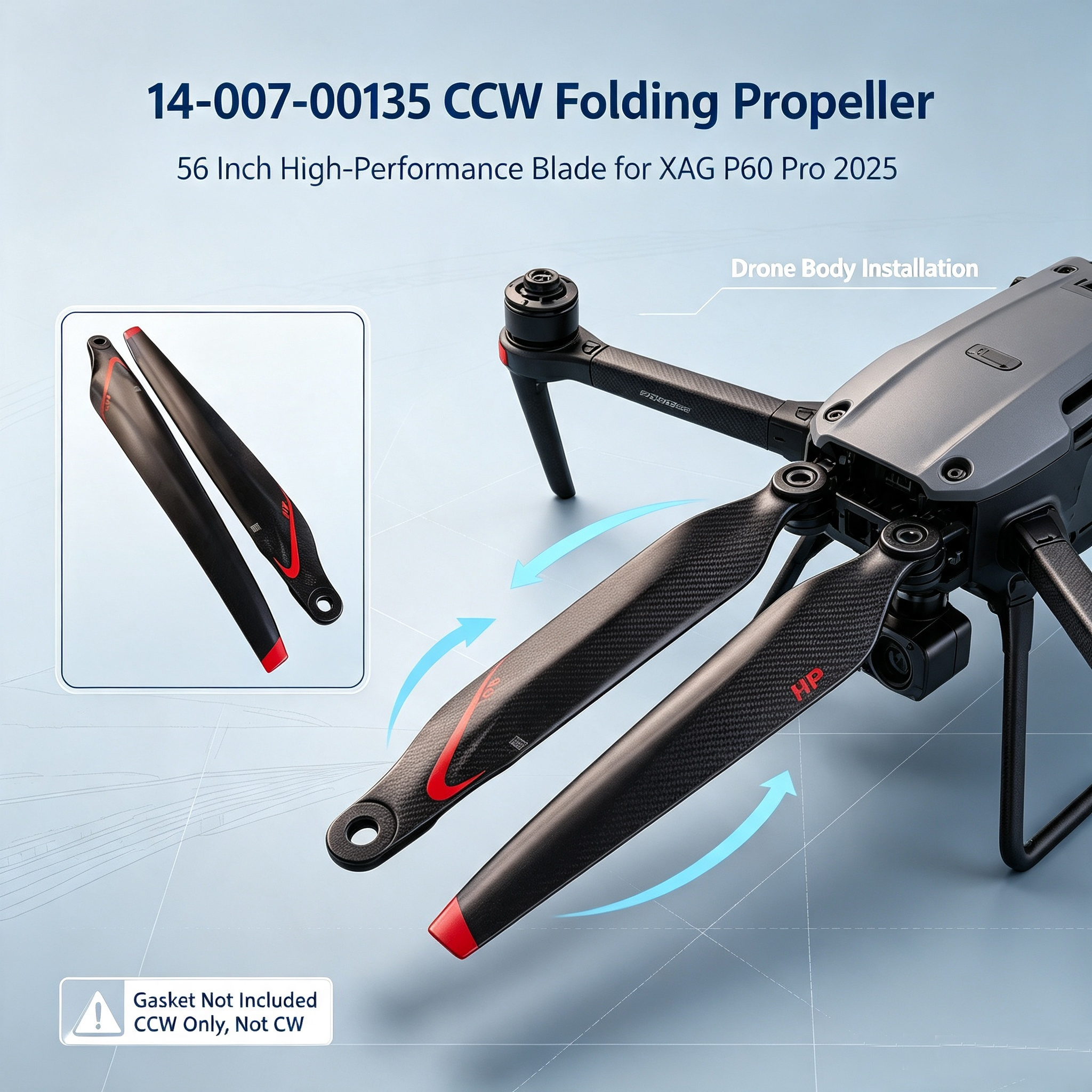

• 56-inch propeller: Fits P60 Pro 2025

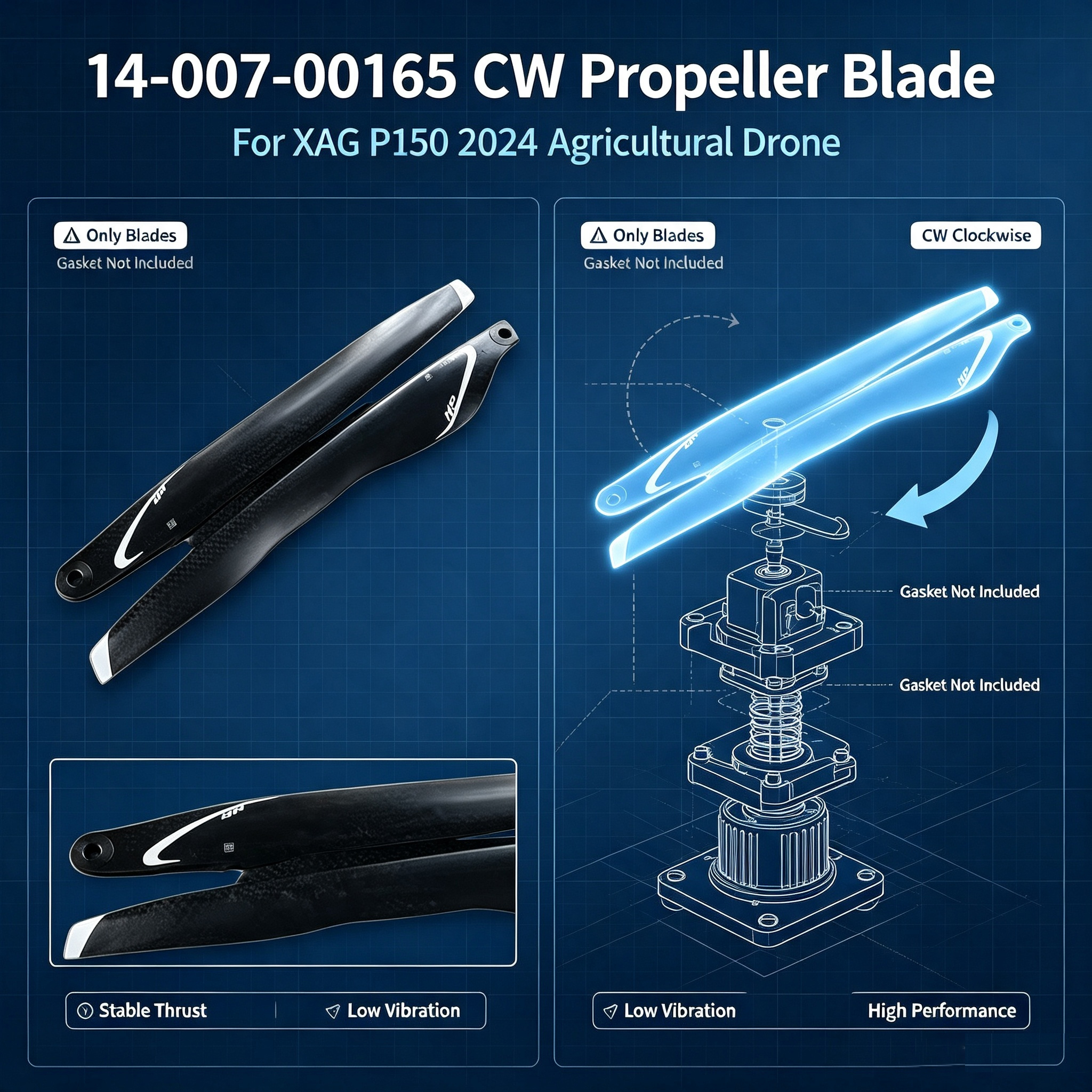

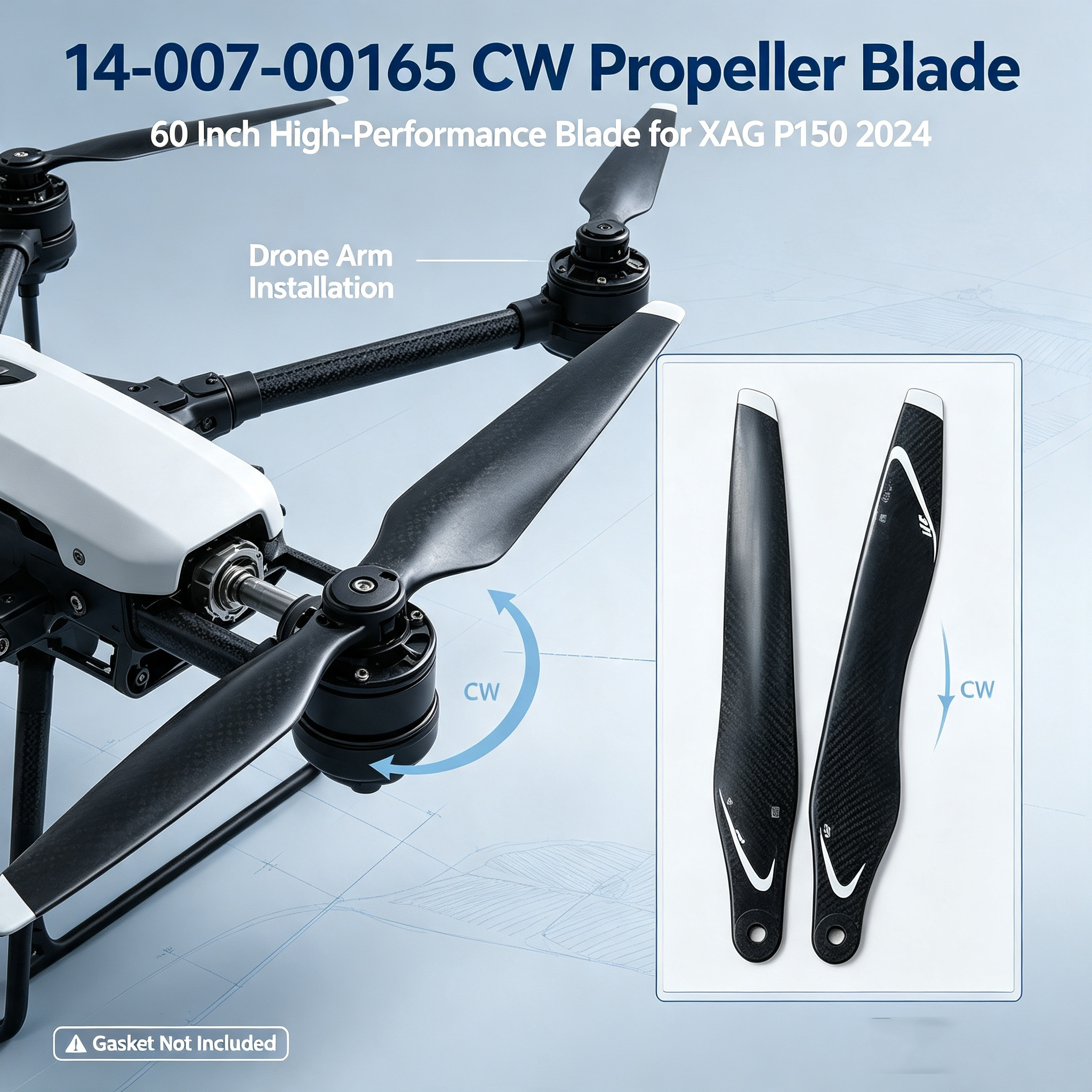

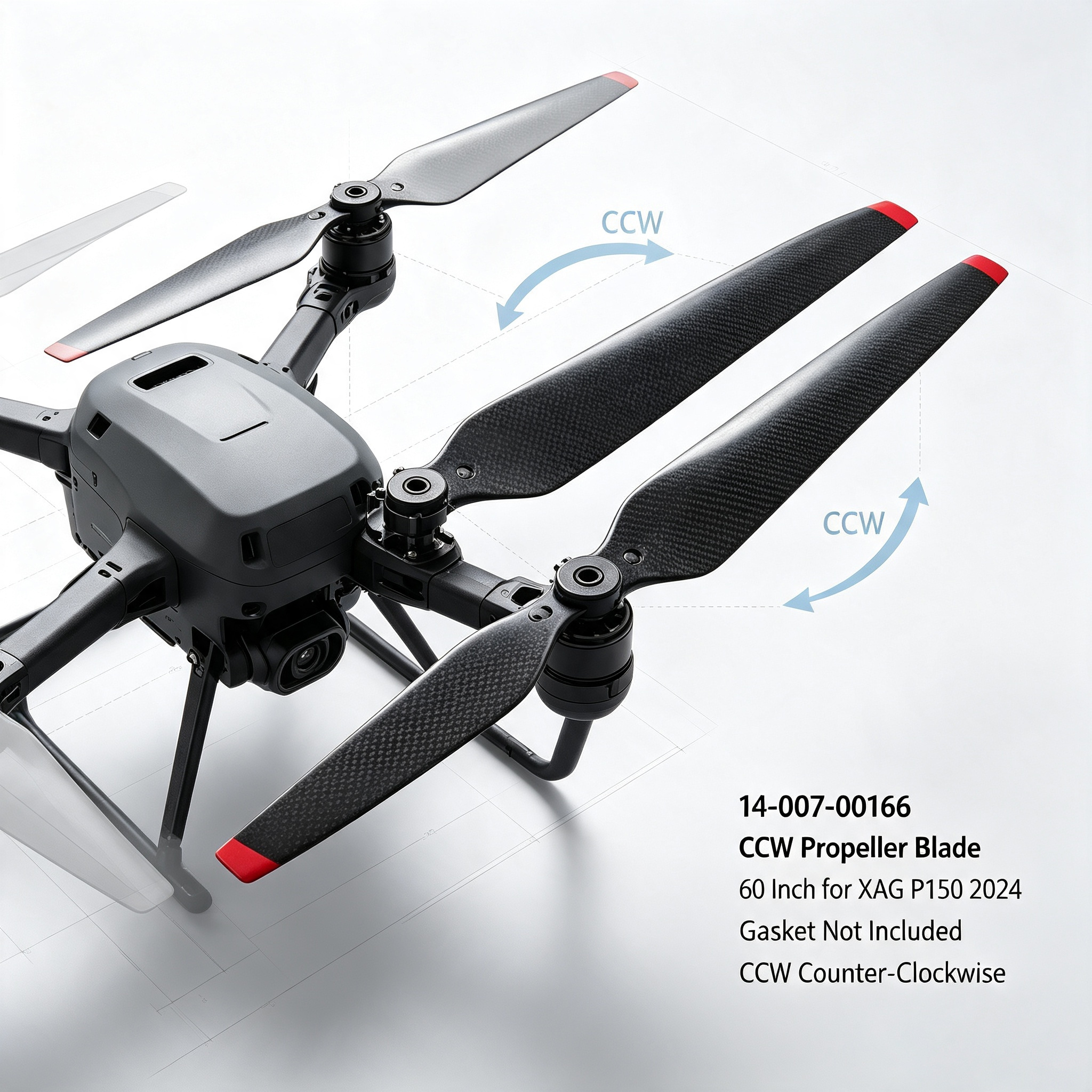

• 60-inch High-Performance propeller: Fits P150 2024

• 60-inch Standard Version propeller: Fits P150 2024

• 48.5-inch propeller: Fits P60 2024

• 56-inch High-Performance propeller: Fits P100 Pro 2023

• 55-inch propeller: Fits P100 Pro 2023 / V50 Pro 2023

• 40-inch propeller: Fits XP / XP ST 2020, P40 / XP 2021

• 47-inch propeller: Fits V50 2022/2023, V40 2021, P100 2022/2023, P80 2021

1. Replace worn, cracked, deformed original propellers of XAG agricultural drones;

2. Upgrade ordinary propellers to high-efficiency folding blades to reduce power consumption and increase working area per battery charge;

3. Agricultural fleets transfer drones across villages & farms, fold propellers to avoid collision damage during transit;

4. Warehouse centralized storage of drone equipment, folded propellers save storage space;

5. Windy field operation, use balanced CW/CCW propellers to stabilize flight and guarantee spraying uniformity.

FAQ

A1: CW rotates clockwise, CCW rotates counter-clockwise when viewed from above the drone. They need to be installed diagonally in pairs to balance rotational torque of the drone, single type cannot support normal flight.

A2: Yes, the mounting hole position and size are consistent with original propellers of XAG drones, plug-and-play without cutting or drilling.

A3: The hinge adopts wear-resistant metal rivet structure with limit locking design. It stays tight during high-speed rotation, only folds manually when stopped, no accidental folding during flight.

A4: The surface is coated with anti-chemical protective layer, resisting erosion of pesticide mist and fertilizer liquid, suitable for long-term outdoor agricultural working environment.

Installation Instructions

1. Power off the drone completely and remove the battery before replacement;

2. Remove the propeller lock nut and take off the old blade;

3. Confirm CW/CCW direction mark, install the folding propeller onto motor shaft, lock the nut properly;

4. Check folding flexibility manually, ensure the blade locks automatically when unfolded;

5. Install CW and CCW propellers diagonally correspondingly, test rotation smoothly before official operation.

Precautions

1. CW and CCW must be used in matched diagonal pairs, wrong installation will cause severe vibration or flight failure;

2. Do not fold propellers forcibly during flight to avoid hinge fracture;

3. Clean pesticide residue on blades and hinges after daily operation to extend service life;

4. Inspect blades for cracks before each flight, replace damaged propellers in time to prevent flight accidents.
