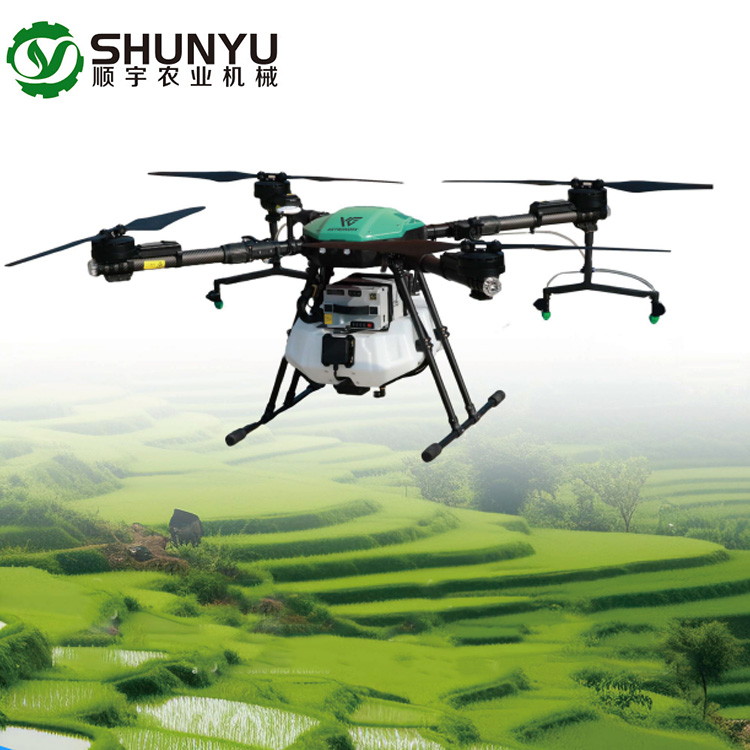

Product Introduction
Technical Parameters
| ·AIRCRAFT PABAMETERS | |
| Structural layout | Four-axis layout |
| Maximum wheelbase | 1090mm |
| Overall dimensions | 1090mmx1090mmx610mm |
| Pesticide container capacity | 16L |
| No-load mass(exclude battery) | 14.1KG |
| No-load mass(including battery)19.95KG | 19.95KG |
| YG10 FLIGHT PARAMETERS | |
| Hovering accuracy | Radar: ±0.1m |
| Spraying full-load endurance time | 7min |
| No-load endurance time | 18min |
| Ranging accuracy of ground simulating radar | 0.1m |
| Fixed height range | 1-30m |
| Obstacle avoidance perception range | 1-15m |
| Maximum pitch angle of obstacle avoidance radar | 15° |
| Motor type | T10 |
| YG10 SPRAYING SYSTEM | |
| Type of spraying nozzle | pressure nozzle |
| Number of spraying nozzle | 4 |
| Flow of liquid pump | 8L/min |
| Operation spraying width | Optimal6m.maximum 8m |
| YG10 CHARGER | |
| Output power of charger | 220V Single-phase input;8000w |
| YG10 SMART BATTERY | |
| Battery weight | 6kg |
| Power battery | 22000mAh |
| Battery charging time | Lithium battery 20%-95%about 13min |

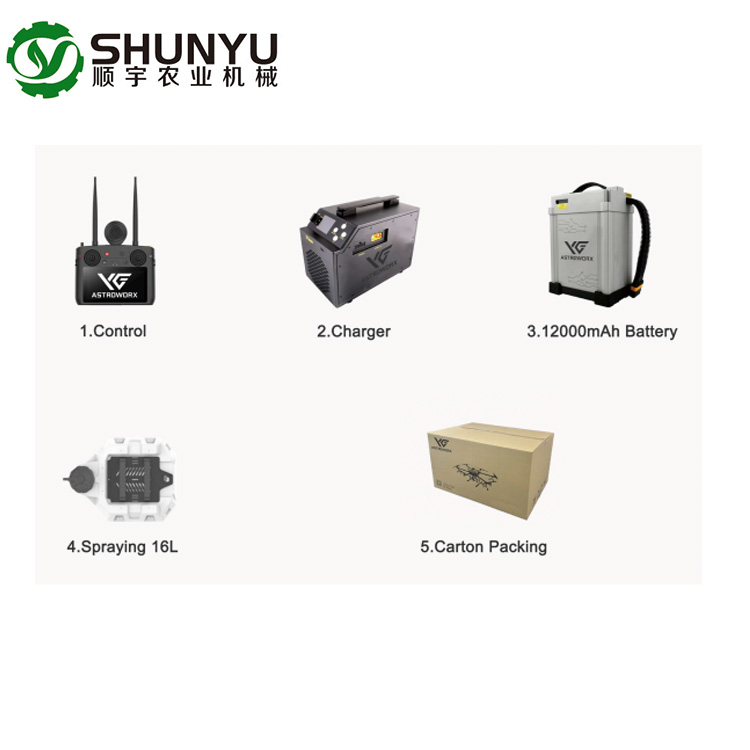

| include： |
| 1.Control |
| 2.Charger |
| 3.12000mAh Battery |
| 4.Spraying 16L |
| 5.Carton Packing |
| include： |
| 1.Control |
| 2.Charger |
| 3.12000mAh Battery |
| 4.Spraying 16L |
| 5.Carton Packing |
Product Uses
1.Medium to large plot size (several hundred acres or more or multiple fields working together)
2.The terrain is undulating to a certain extent, and it is necessary to use ground penetrating radar to maintain consistent height
3.Dense crops or thick leaves require penetration and adhesion of spray
4.Agricultural service teams or crop protection companies aim to improve work efficiency and accuracy
5.In situations where there are stable power sources and backup battery resources to support high-intensity operations
Product Operate Guide
1. GPS Navigation and Route Planning
Ability to set work areas and routes (point line surface) in the ground control station/app
Automatic flight path, reducing manual operation errors
Support intelligent control such as return flight, breakpoint spraying, low medicine/low electricity alarm, etc
2. Ground penetrating radar/terrain following
During the flight, the radar continuously monitors changes in terrain or vegetation height below
The drone will automatically raise or lower its height to maintain the ideal distance between the nozzle and the crop/ground
Improve spraying uniformity and reduce spray drift and omission
3. Pressure nozzle system
Compared with gravity spray or simple spray, the pressure nozzle can produce stronger spray pressure, making the liquid medicine spray deeper/wider
It can penetrate through the leaf layer of the plant to increase the penetration and adhesion of the medicinal solution
Multiple nozzles can be configured to expand coverage width or respond to different crop types (sparse vs. dense)
4. Obstacle/obstacle avoidance function
Front, rear, or surrounding sensors/radars monitor obstacles
There may be trees, sheds, and power poles in farmland, and obstacle avoidance can improve safety and efficiency
5. Safety and monitoring features
Battery low voltage protection, flight control lost and automatic return
Real time display of flight altitude, remaining medication amount, spraying status, battery level, etc
At night or in low light conditions, there are limitations/precautions for auxiliary lights or night running lights
▲Simplified process card (on-site shorthand version)
Front: Battery fully charged → Liquid preparation → Nozzle inspection → GPS signal lock
Middle: Takeoff → Route operations → Mine simulation to control altitude → Monitoring of medication and battery levels
Afterwards: Unloading and cleaning → Battery storage tube → Screw inspection → Software update
