Product Introduction
Technical Parameters

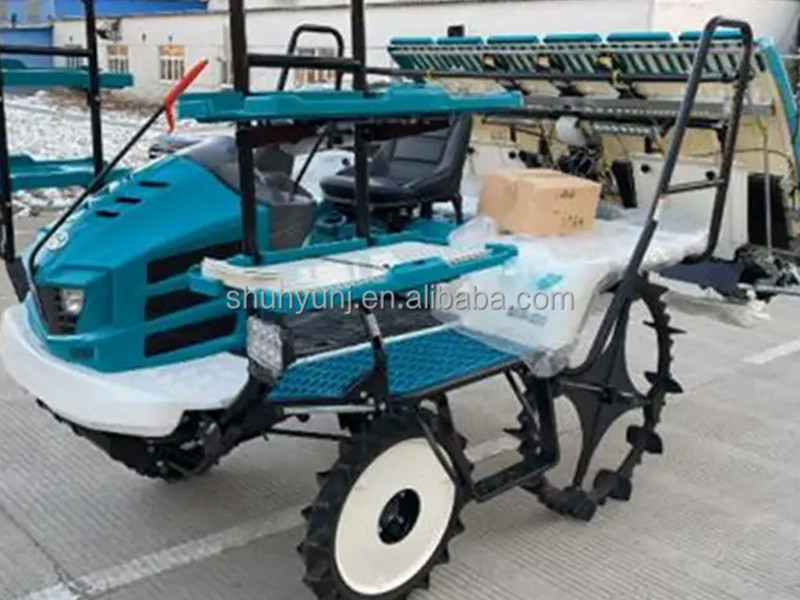

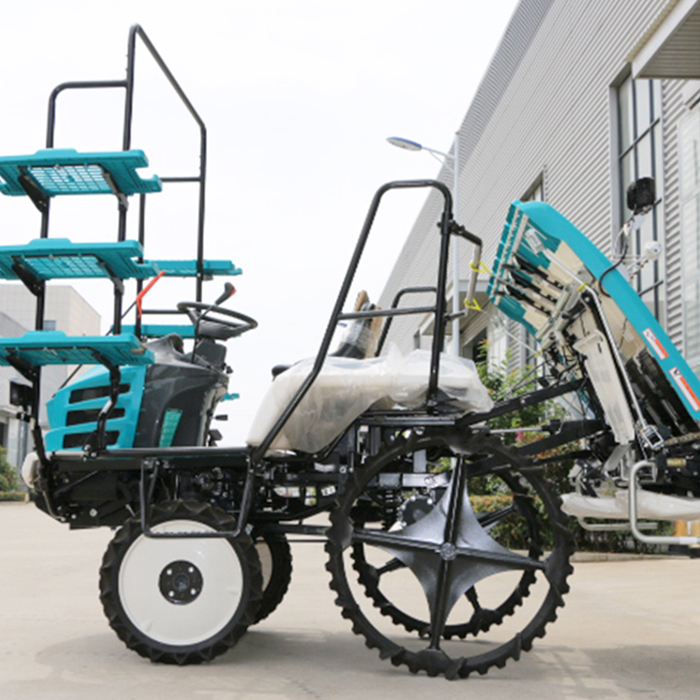

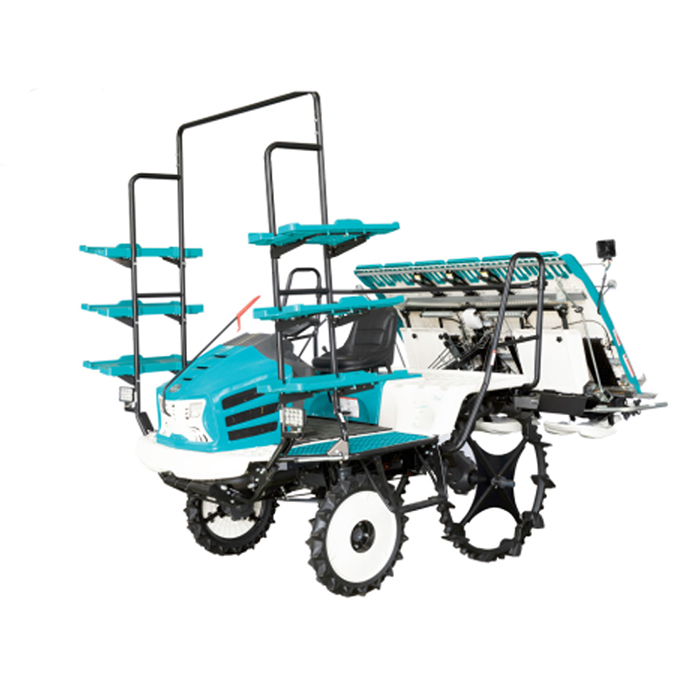

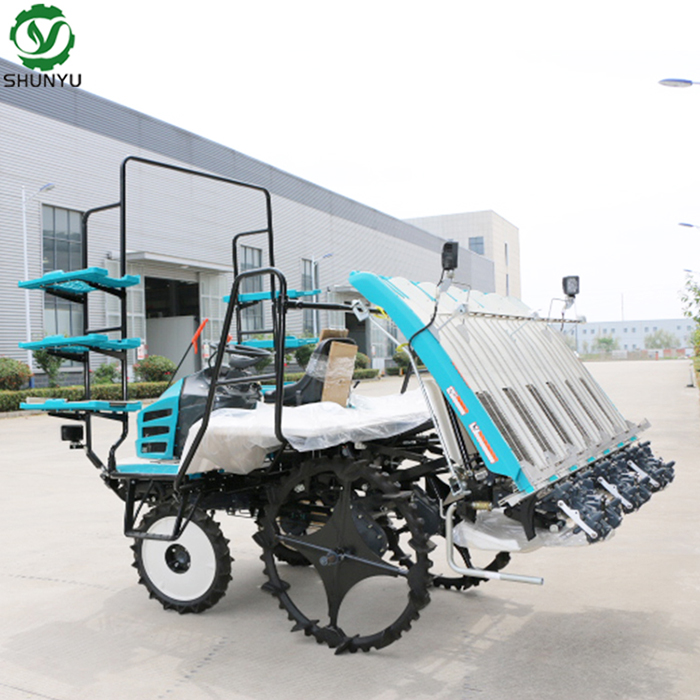

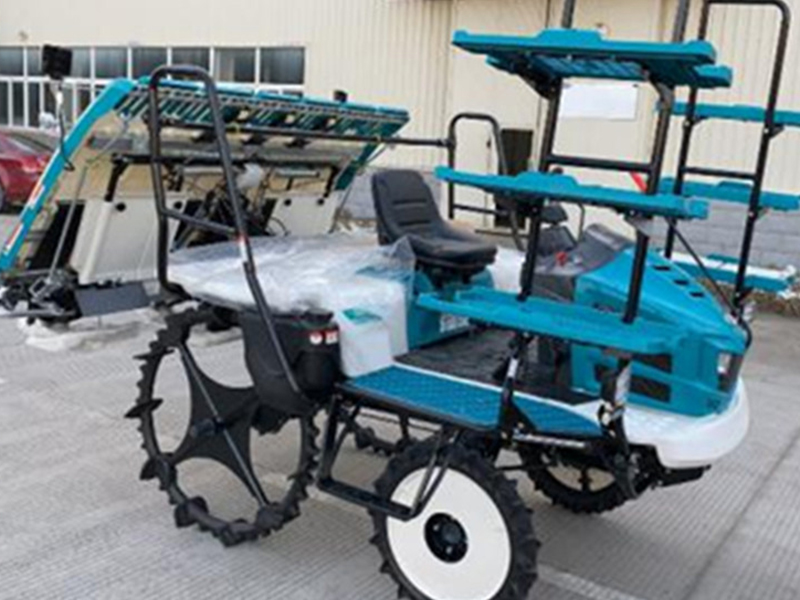

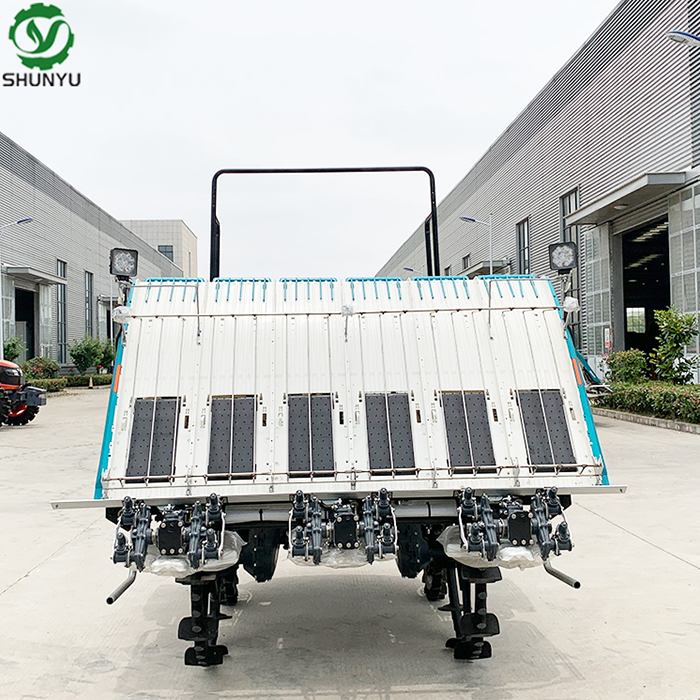

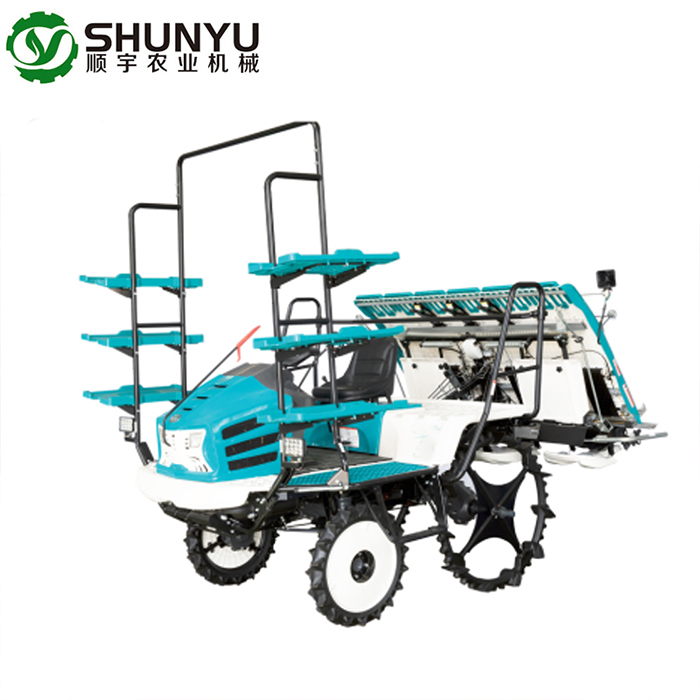

The Riding Rice Transplanter is a high-speed agricultural machine designed with a riding-type structure, powered by a reliable diesel engine and equipped with HST hydraulic continuously variable transmission for smooth and efficient operation. Its six-row transplanting configuration, paired with a precise seedling picking and delivery system, ensures consistent planting quality. The machine features an automatic depth control system and intelligent walking control, complemented by mechanical row spacing adjustment with multiple gear options to accommodate different agronomic needs. It is fitted with explosion-proof tires and rough-wheel rubber tires for enhanced passability, along with a shock-absorbing seat and ergonomic control panel for operator comfort.
| Item | Unit | design value |
| Model | / | 2ZG-6D1 riding type high speed rice transplanter |
| Structure type | / | high speed, riding type |
| Engine producer | / | YANMAR 3TNM72-AFF/3TNM72-A |
| Rated output/speed(ps[kw]/rpm) | KW | 18.5 / 25.16 HP |
| rating speed | r/min | 3600 |
| Demension (L*W*H) | / | 3090×2220×2580 |
| Working rate | m/s | 0-1.65 |
| Productivity (a unit of area/hour) | hm²/h | 0.2-0.42 |
| Fuel consumption | kg/hm² | 3.0-6.5 |
| Line number | line | 6 |
| Line spacing | mm | 300 |
| row space adjusting structure type | / | mechanical |
| no. of row space gear adjustment | no. | 7 |
| Row spacing | cm | 100、120、140、160、180、210、240 |
| Operation speed | mm | 10-55 |
| Shifting distance | mm | 20.3、17.8、15.8、14.2 |
| Take the seedling rate | mm | 8-18 |
| Planting frequency(single line) | row/min | 0-600 |
| gearshift method | / | Hydraulic speed change (HST) |
| type of waling wheel structure(F/R) | / | Explosion-proof tire, rough-wheel rubber tire |
| Diameter of travelling wheel(front、rear) | mm | 600、950 |
| Type of the balancer | / | mechanical |
| planting arm type | / | truning compel planting |
| Burnt oil | / | Fuel |
Product Uses
Tailored for family farms and agricultural machinery cooperatives, the High-Speed Rice Transplanting Machine excels in medium to large-scale rice cultivation. Its six-row simultaneous operation and wide transplanting width significantly reduce labor costs and increase operational efficiency, making it ideal for managing extensive paddy fields.
During the busy spring transplanting season, the machine’s high-speed performance enables farmers to complete planting tasks quickly, seizing optimal growing conditions. Its reliable power system and consistent operation ensure that seedlings are planted on time, promoting uniform germination and growth.
The Rice Planter adapts seamlessly to both soft and hard paddy fields, with excellent anti-sinking capabilities and variable speed functions that enhance wet field passability. It handles slightly undulating terrain with ease, ensuring stable operation regardless of field conditions.
For large-scale planting requiring consistent plant spacing and row spacing, the machine’s adjustable parameters and precise transplanting system deliver neat and uniform seedlings. This uniformity simplifies later field management tasks such as fertilization, pesticide application, and mechanized harvesting.
As a key component of fully mechanized rice cultivation chains, the transplanter works in tandem with rotary tillers, fertilizing machines, and harvesters. It is well-suited for major rice-producing regions seeking to streamline operations and improve overall agricultural productivity.
Product Operate Guide
Check the 6 Rows Rice Planting Machine thoroughly to ensure sufficient fuel and oil levels, and verify that the transplanting arm, chain, seedling claws, and tires are in good condition. Select healthy, uniform seedlings and arrange them neatly on seedling trays. Adjust transplanting depth, plant spacing, and row spacing according to field conditions and agronomic requirements to optimize seedling survival rates.
Position the machine at the edge of the paddy field, lower the transplanting section, and select the appropriate gear before moving forward slowly. Place seedling trays on the supply platform in sequence, ensuring consistent replenishment to avoid seedling breakage. Maintain a constant speed during operation to leverage the machine’s high-speed transplanting function, avoiding sudden stops or turns that could disrupt planting uniformity. Activate the automatic depth control system to ensure even planting depth across the field.
Monitor seedling tray supply continuously to prevent missing or tilted seedlings. When turning in the field, lift the transplanting part first to avoid damaging newly planted seedlings. Regularly check the transplanting effect, adjusting parameters promptly if seedlings appear unstable or missing. Stay alert to obstacles in the field and adjust the machine’s path to ensure safe and efficient operation.
Rinse the transplanting arms and seedling claws after use to remove mud and seedling roots, preventing clogs and corrosion. Inspect chains, gears, and other consumable parts for wear, adding lubricant or replacing components as needed. Park the machine in a dry, ventilated area, protecting it from prolonged exposure to rain and moisture to extend its service life.
