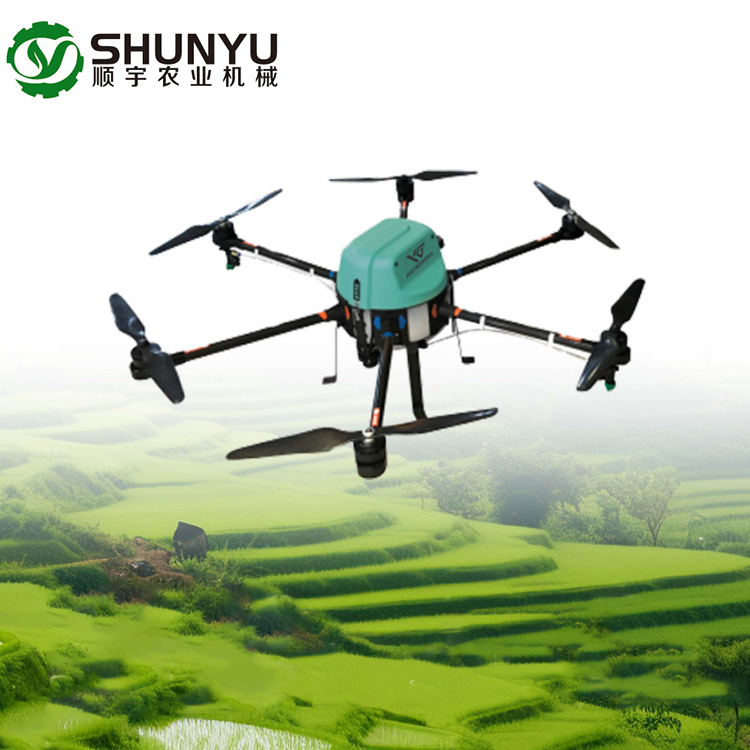

Product Introduction
Technical Parameters
| ·AIRCRAFT PABAMETERS | |
| Structural layout | six-axis layout |
| Maximum wheelbase | 1300mm |
| Overall dimensions | 1350mmx1350mmx530mml |
| Pesticide container capacity | 10L |
| No-load mass(exclude battery) | 10KG |
| No-load mass(including battery)19.95KG | 13.8KG |
| YG10 FLIGHT PARAMETERS | |
| Hovering accuracy | Radar: ±0.1m |
| Spraying full-load endurance time | 6min |
| No-load endurance time | 15min |
| Ranging accuracy of ground simulating radar | 0.1m |
| Fixed height range | 1-30m |
| Obstacle avoidance perception range | 1-15m |
| Maximum pitch angle of obstacle avoidance radar | 15° |
| Motor type | X6 |
| YG10 SPRAYING SYSTEM | |
| Type of spraying nozzle | pressure nozzle |
| Number of spraying nozzle | 4 |
| Flow of liquid pump | 8L/min |
| Operation spraying width | Optimal6m.maximum 8m |
| YG10 CHARGER | |
| Battery charging time | Lithium battery 20%-95%about 13min |
| Output power of charger | 220V Single-phase input:3000w |
| YG10 SMART BATTERY | |
| Battery weight | 3.9kg |
| Power battery | 12000mAh |
| Battery charging time | Lithium battery 20%-95%about 13min |

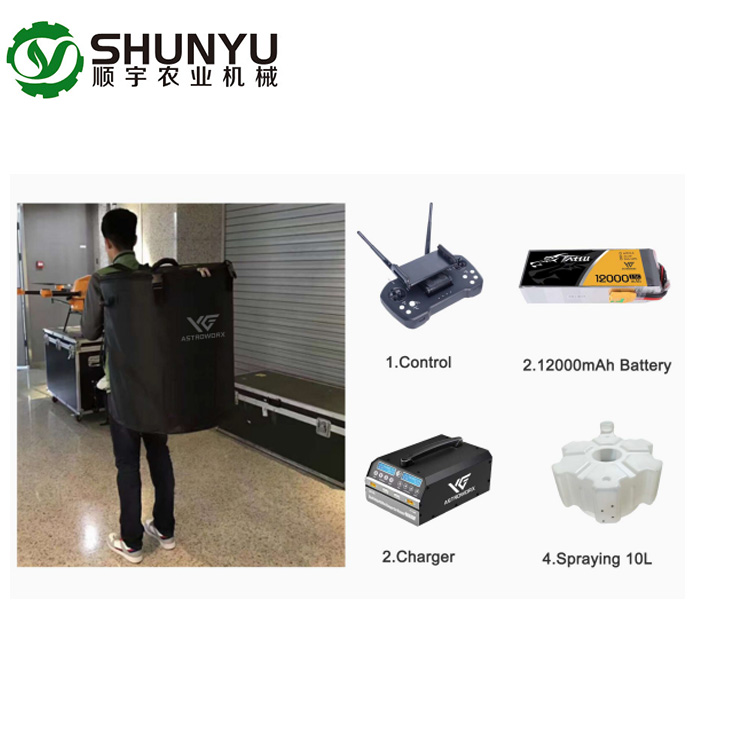

| include： |
| 1.Control |
| 2.12000mAh Battery |
| 3.Charger |
| 4.Spraying 10L |
Product Uses
1.Small and medium-sized farmland/rice, fruit, and vegetable planting areas require frequent spraying of pesticides, but the area is not very large.
2.The terrain has certain undulations or scattered small fields, and route planning and GPS altitude/hovering can improve the uniformity of spraying.
3.Agricultural areas with insufficient manpower or the need to improve operational efficiency.
4.There are requirements for spraying accuracy (less waste of medication and less damage to crops)
Advantages and Challenges
Advantages:
High degree of automation → low operational burden, farmers can learn quickly.
Good precision → high utilization rate of medication, reducing waste and environmental pollution.
Operation efficiency is much higher than manual or traditional mechanical spray.
Strong flexibility, small or scattered plots can also be flexibly accessed for operations.
Limitations/Challenges:
The flight time is limited by battery capacity, and the time under full load is short, requiring frequent recharging/battery replacement.
The weather has a significant impact (wind, rain, fog, etc. can all affect the spraying effect and flight stability).
The equipment cost and maintenance cost are not small, and components (such as nozzles, motors, flight controllers, etc.) need to be maintained or replaced.
The accuracy decreases when the GPS signal is poor or obstructed; When the terrain changes significantly and there are many obstructions (trees, buildings, etc.), obstacle avoidance may be limited.
Regulatory/airspace management requirements: Some regions have strict regulations on drone flight/spraying, requiring permission or compliant operation.
