Product Introduction
Technical Parameters
QUOTATION
Payment： T/T in advance
Load Plan ： 3 pieces in 1x40HQ
| ITEMS | DESCRIPTION | REMARKS |

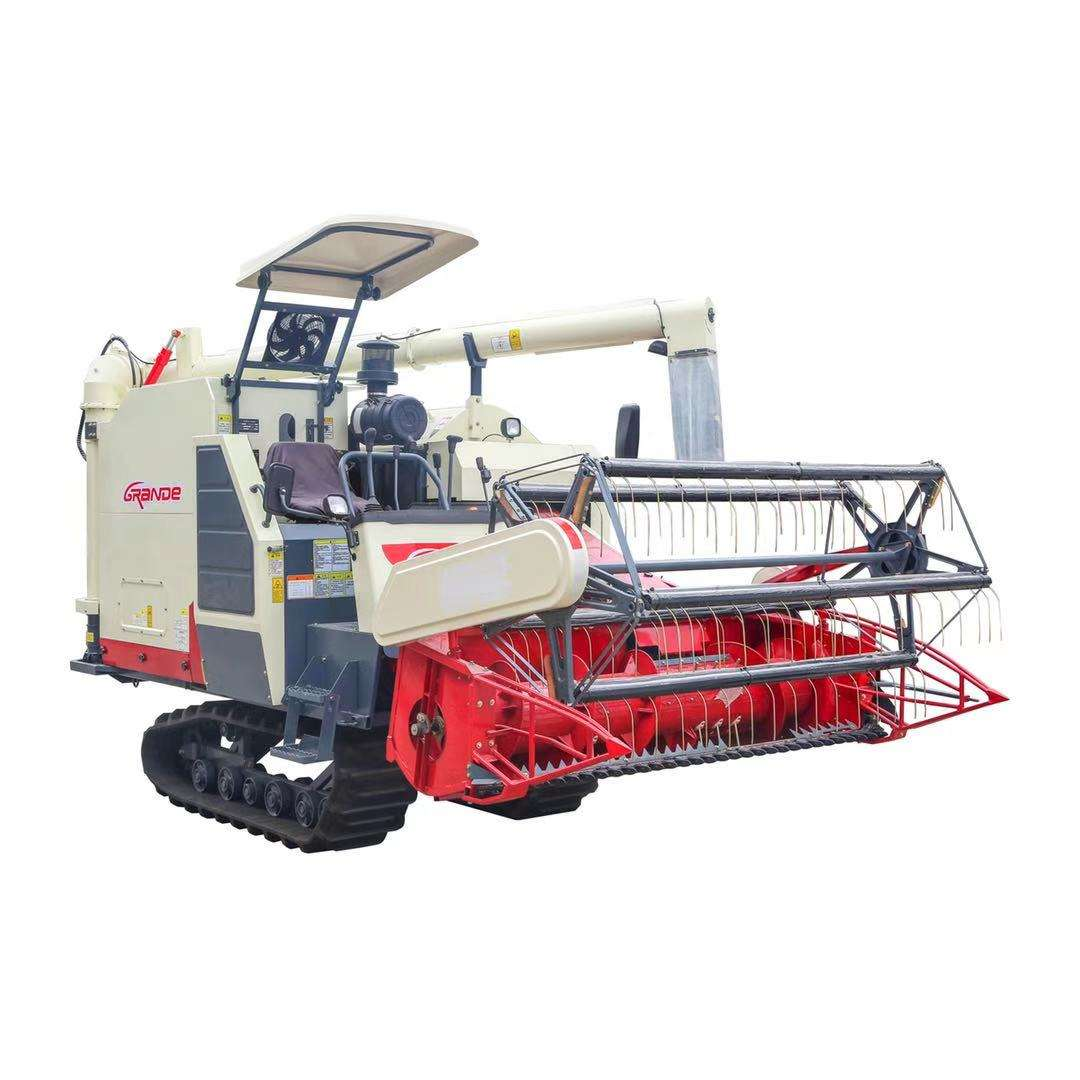

| Model | 4LZ-6.0Ps | Self-propelled Full Feeding Combine Harvester |
| Weight (KGS) | 3100 | |
| Main Standard Configuration | ||
| Working Dimension L*W*H (mm) | 5150*2620*3030 | |
| Ground Clearance(mm) | 360 | |
| Work Efficiency (h㎡/h) | 0.5-0.9 | |
| Diesel Engine | ||
| Model | Changchai 4G33-TC | |
| Type | Vertical, Water-cooling, 4*4 strokes ,Direct Inject ,Turbocharger | |
| Rated Power/Rotating Speed | 102HP/2600rpm | |
| Fuel Capacity (L) | 160 | |
| Gear Box& HST | ||
| Gear Box | 85 type hydraulic Gear Box | |
| HST | 45CC | |
| Rubber Track | ||
| Size (mm) | 550mm*90*56 mm | |
| Track Center(mm) | 1350 | |
| Header Platform &Conveyor Trough | ||
| Feeding Capacity(t/h) | 28.8 | |
| Cutting Bar Lift | Hydraulic Control | Features: |
| Cut Width | 2200mm | 1) 102 hp turbocharged engine. |
| Threshing Drum Type | Alxe Flow Type With Beat Bars | 2) Hydraulic Gear Box ZKB85 &45 CC HST. |
| Threshing Drum Dia.*Length(mm) | φ620*2010 | 3) Rubber Track 550*90*56. |
| Cleaning System | Vibrating Sieves+Centrifugal Fan | 4) Cutting Width 2.2m |
| Grain Tank | ||
| capacity | small grain tank ，pick up grain manually | |
| Grain Unloading | Auto Grain Unloading,360 Degrees | |
| Others | ||
| Cabin/Sun-roof | Canopy | |
| Crops | Rice ,Wheat ,Rapeseed |
Product Uses
1.Harvesting rice and wheat for small and medium-sized farmers;
2.Grain harvest from hills and scattered fields;
3.A work environment that requires high flexibility and transition efficiency.
Product Operate Guide
1. Preparation before homework
Check equipment: Confirm that the engine oil, fuel, and coolant are sufficient; Check if the belt, chain, cutting table, and drum are functioning properly.
Adjust parameters: Reasonably adjust the drum speed, fan air volume, and sieve opening according to the crop type and moisture content.
Safety confirmation: Check whether the brake and steering system are flexible, and confirm that there are no debris blockages.
2. Start and Drive
Start the engine: Start according to the operating procedures, first preheat by idling, and check the pressure and operating sound of each system.
Low speed driving: Maintain low speed when entering the field, smoothly operate the clutch and throttle, and avoid sudden acceleration.
Cutting height: Adjust the cutting height according to the crop height and lodging situation to ensure neat cutting and reduce missed cutting.
3. Harvesting operation
Uniform feeding: Ensure that crops are evenly fed into the drum to avoid blockages caused by excessive feeding at once.
Monitoring the threshing effect: Observe the impurity rate at the grain outlet and grain bin, and adjust the fan air volume and screen gap if necessary.
Small grain warehouse management: After the grain warehouse is full, stop the machine or drive to the ground to unload the grain in a timely manner to prevent overloading.
4. Unloading and Transfer of Grain
Safe shutdown: After stabilizing the machine, operate the unloading screw to ensure that the grain is completely unloaded.
Flexible transition: The small grain silo model has a compact size, so be careful to slow down and avoid sharp turns when transitioning.
5. Maintenance after homework
Cleaning residues: Clean the drum, screen, and grain bin after the operation to prevent blockage and mold growth.
Inspect vulnerable parts: Check the wear of blades, belts, and chains, and replace them promptly if necessary.
Daily maintenance: Add lubricating grease to keep the machine in good condition and extend its service life
