Product Introduction

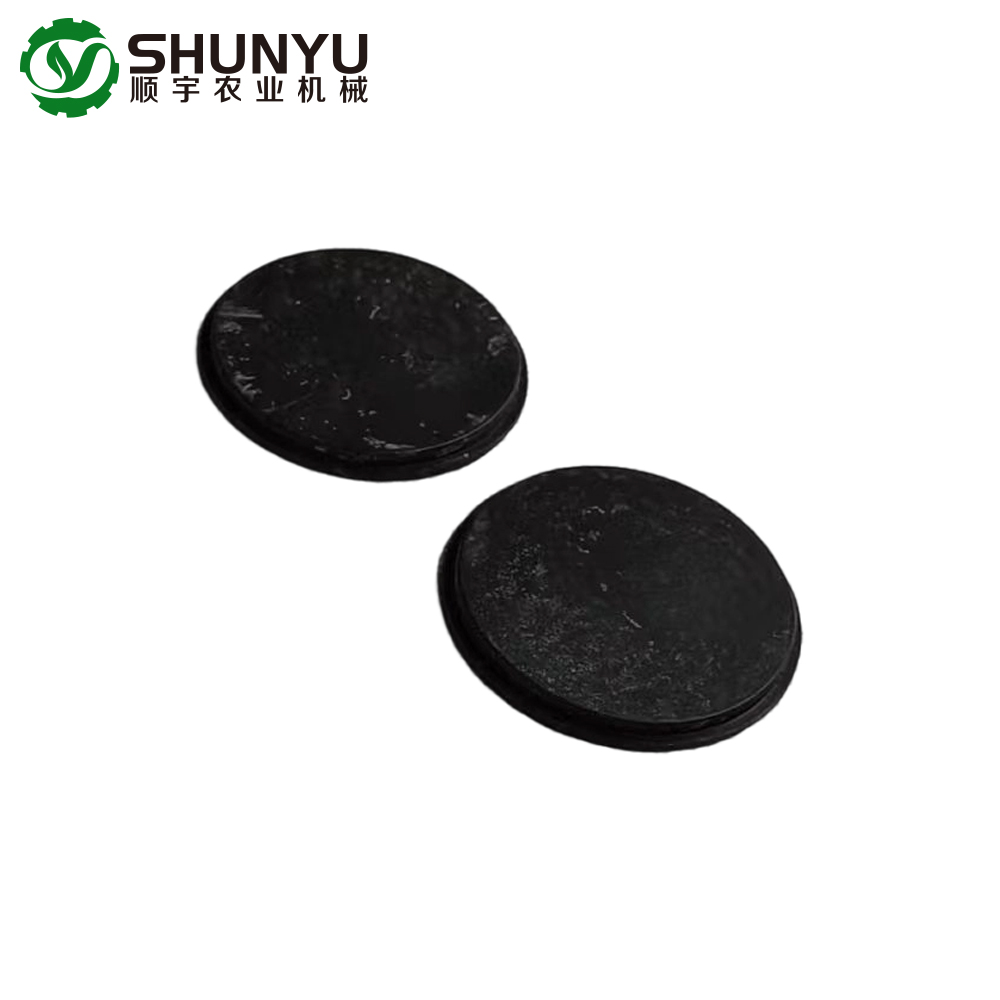

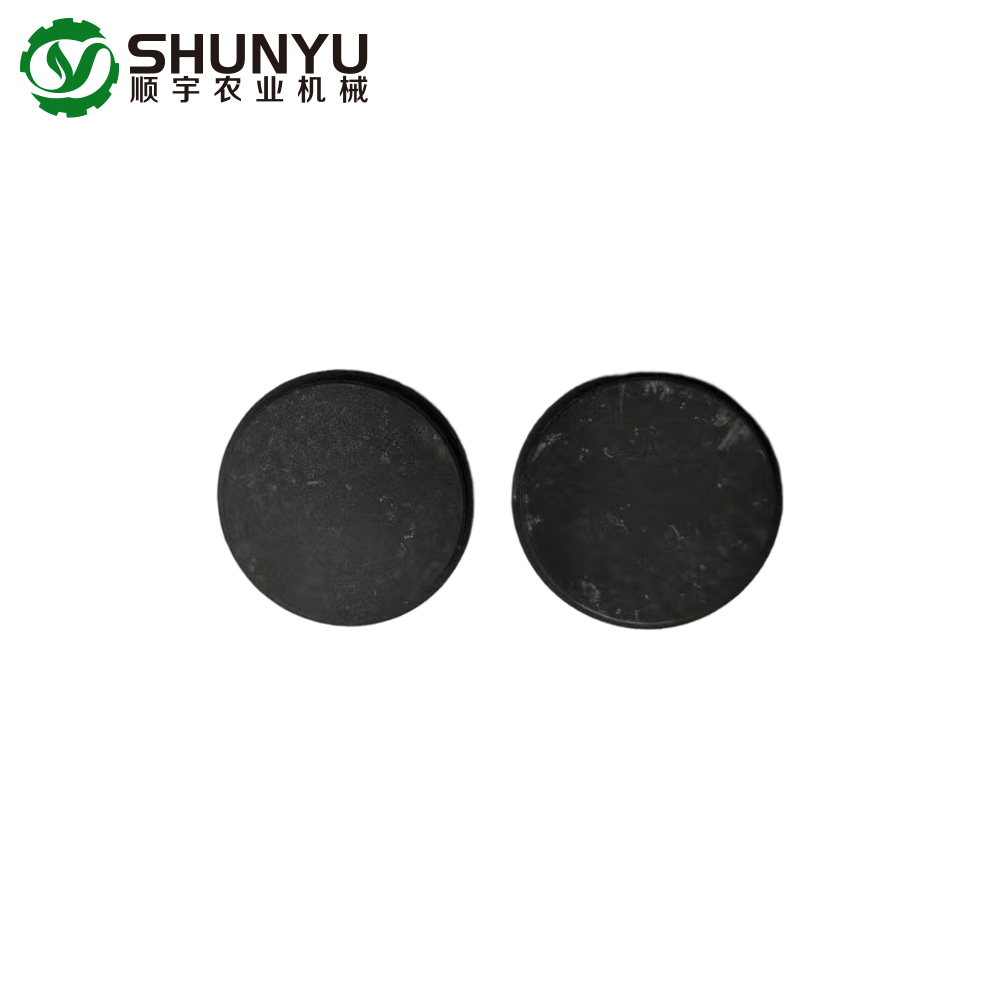

02‑001‑09622 is OEM‑spec relief diaphragm specially for XAG P100 Pro pulsation damper. It balances pipeline pressure, releases excess pressure and protects spray system. Direct‑fit replacement for aged, cracked or leaking diaphragms, restore stable spraying performance of agricultural drone.
Absorb hydraulic pulsation from the pump, smooth spray pipeline pressure
Release excessive pressure to protect the liquid‑spray system
Prevent pressure fluctuation, avoid uneven spraying and dripping
Resist pesticide corrosion, maintain stable working performance of pulsation damper
Technical Parameters
Part Number：02‑001‑09622
Product Name：Pulsation Damper Relief Diaphragm
Compatible Model：XAG P100 Pro
Function：Pressure relief, buffer pipeline pulsation, stabilize spray pressure
Feature：Chemical‑resistant rubber material, resistant to pesticide corrosion
Application：Drone liquid spray system maintenance
Product Uses
Replace aged, cracked, leaking relief diaphragm on XAG P100 Pro pulsation damper
Repair unstable spray pressure, liquid dripping and pipeline pressure abnormal faults
Routine maintenance for agricultural drone service workshops and repair teams
Spare‑part stocking for peak spraying seasons
On‑site troubleshooting for farm‑operated P100 Pro spray system
Q1: Which drone is this diaphragm compatible with?
A: Part number 02‑001‑09622, exclusive for XAG P100 Pro. Please confirm part number before ordering.
Q2: What problems will a damaged diaphragm cause?
A: It may lead to unstable spraying pressure, uneven spray, liquid leakage and abnormal pipeline pulsation.
Q3: Any modification needed for installation?
A: No modification required. Original size, direct replacement. Ensure diaphragm is flat without creases during assembly.
Q4: Why test with liquid after installation?
A: To verify no leakage at the damper. Prevent liquid spillage damaging drone electronic components during operation.
Product Operate Guide
Empty the spray tank, release all residual pressure of the liquid pipeline.

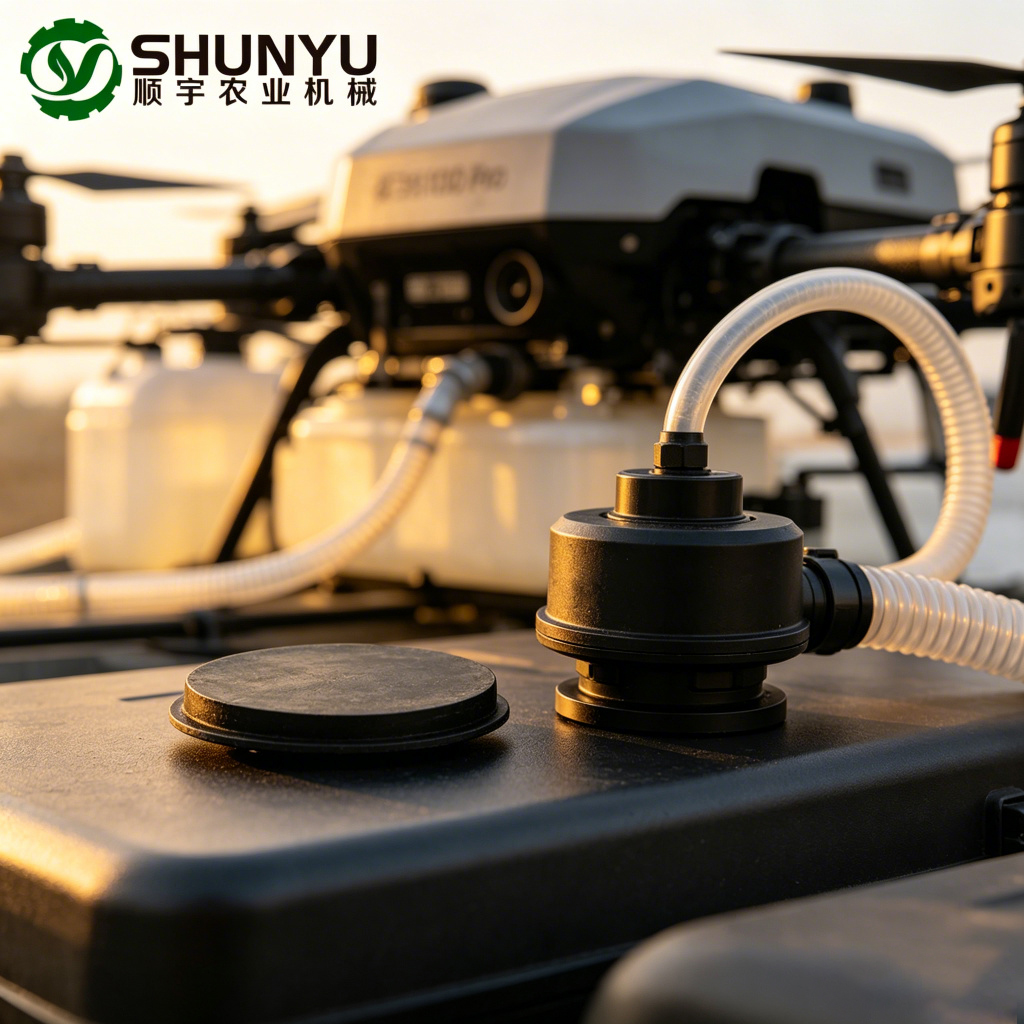

Dismantle the pulsation damper assembly from drone frame.
Disassemble damper housing, take out the old damaged diaphragm.
Place new 02‑001‑09622 diaphragm in correct position, avoid distortion or offset.
Re‑assemble damper housing, tighten screws evenly, do not over‑torque.
Mount the pulsation damper back to drone.
Perform liquid pressure test, check for liquid leakage before field spraying.
Tips: Check diaphragm regularly; replace in time if cracking, aging or leakage appears.
