Product Introduction
Technical Parameters

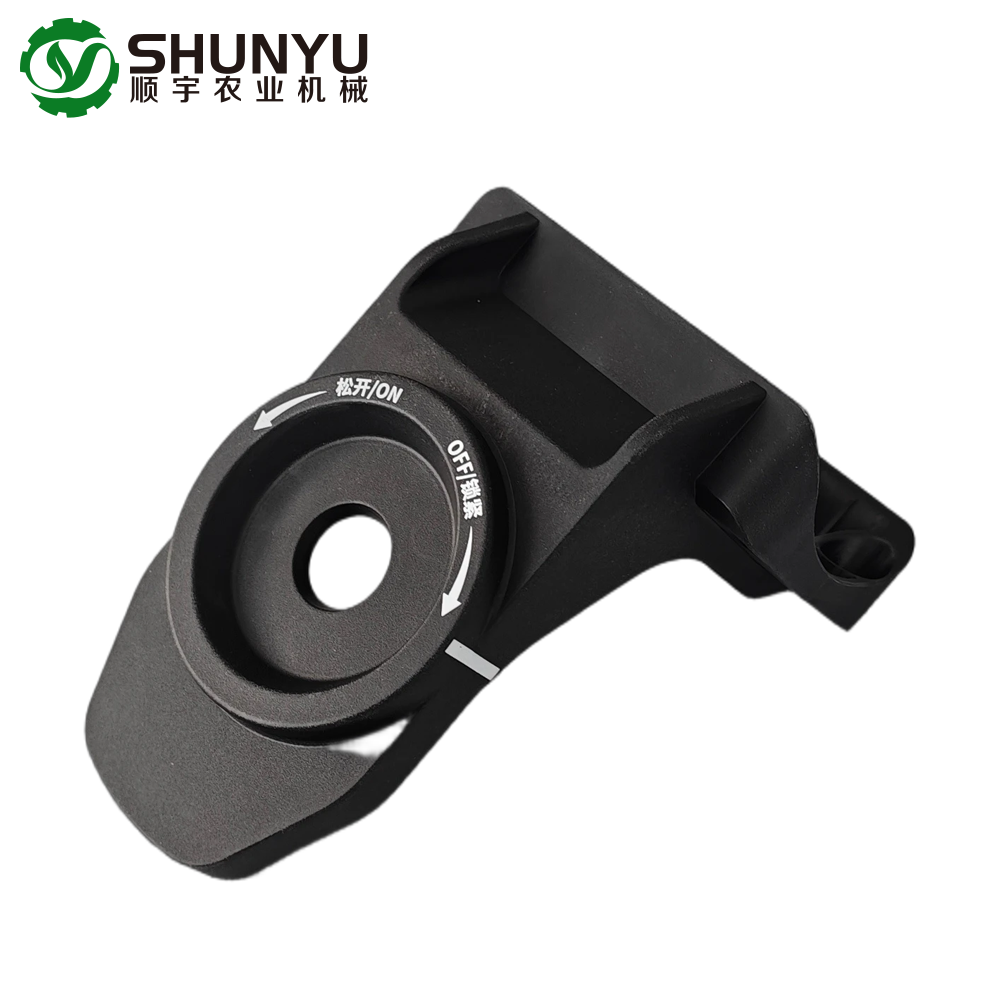

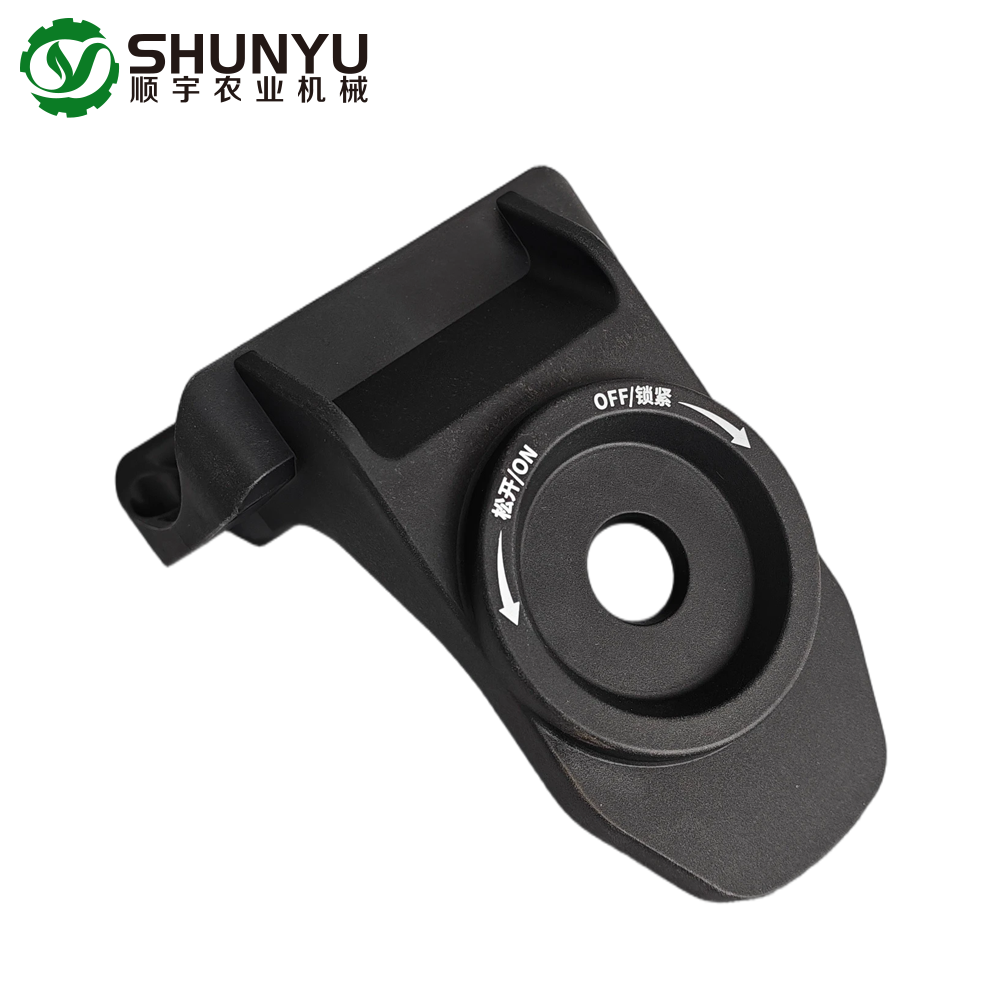

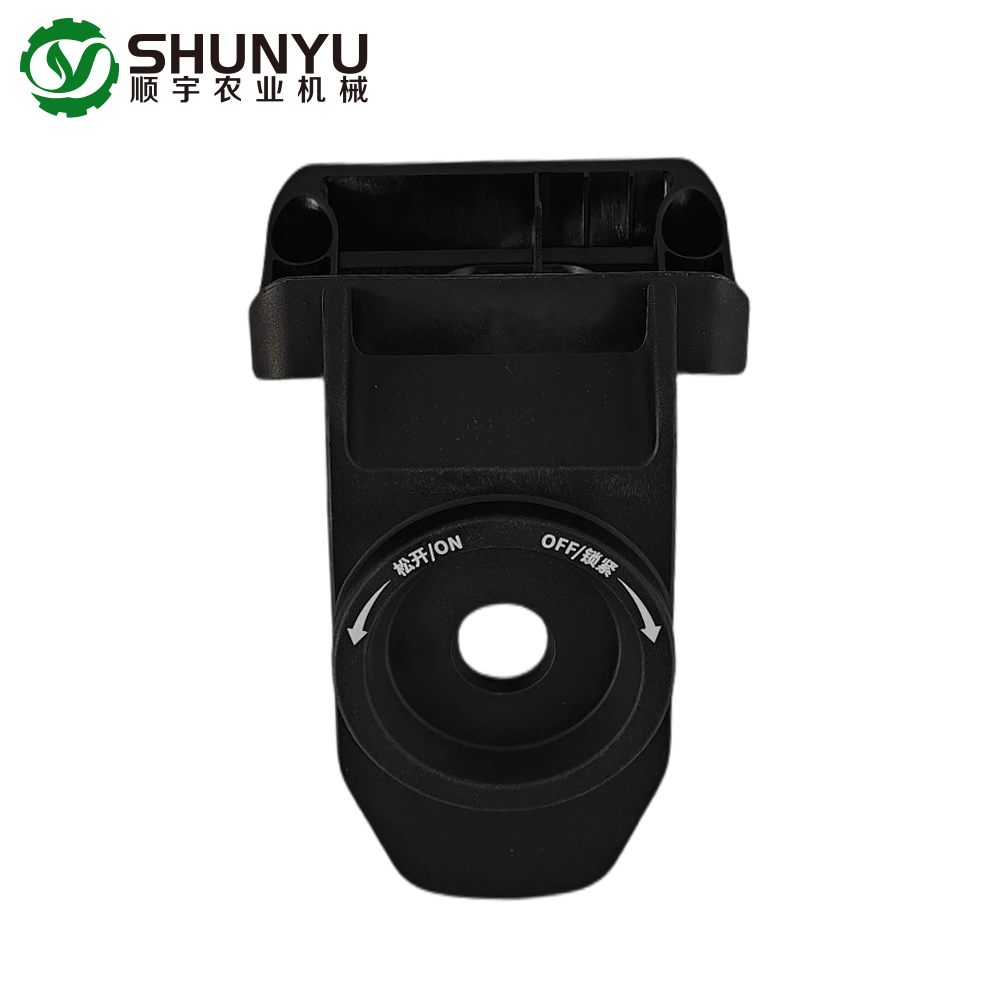

The Nozzle Extension Rod Bracket (3 Arm) 02-001-09442 is an essential component of the XAG P100 Pro agricultural drone spray system. Designed for the third arm, this bracket securely holds the nozzle extension rod in place, ensuring stable and precise spraying during flight operations.
Made from high-strength, lightweight materials, it provides durability without adding unnecessary weight to the drone. By maintaining correct nozzle alignment, it improves spray accuracy, ensures uniform coverage, and prevents vibration or displacement that could affect performance.
This bracket is ideal for professionals in precision agriculture, including rice, wheat, corn, and orchard spraying applications. It is easy to install, compatible with the XAG P100 Pro, and an essential part of maintaining optimal UAV spraying efficiency.
| ·Parameters |
| Parameter | Specification |
|---|---|
| Product Name | Nozzle Extension Rod Bracket (3 Arm) |
| Part Number | 02-001-09442 |
| Compatible Model | XAG P100 Pro |
| Applicable Arm | 3rd Arm |
| Function | Holds nozzle extension rod securely; ensures precise spraying |
| Weight | Lightweight for UAV performance (approx. 50–100 g, depending on configuration) |
Holds the nozzle extension rod securely on the drone arm
Maintains spray angle and coverage consistency
Reduces vibration impact on spray performance
Essential for stable operation of the RevoSpray system
According to the maintenance manual, the bracket should be regularly checked to ensure structural integrity and secure fastening to avoid spraying issues
include： |
| 1.Control |
| 2.Charger |
| 3.12000mAh Battery |
| 4.Spraying 16L |
| 5.Carton Packing |
Product Uses
Crop spraying (rice, wheat, corn, orchards)
Precision agriculture operations
Replacement of worn or damaged spray system components
Maintenance of UAV spraying system
Product Operate Guide
Installation Tips:
Fix the bracket firmly onto the designated arm (3rd arm position)
Ensure all screws are tightened properly
Check alignment with the nozzle extension rod
Maintenance:
Inspect monthly for looseness or corrosion
Ensure no deformation or cracks
Replace immediately if instability is detected
Q1: Which drone model is this compatible with?
A: It is specifically designed for the XAG P100 Pro.
Q2: Which arm position is it used for?
A: This version is for the 3rd arm (3 arm configuration).
Q3: Is it easy to replace?
A: Yes, it is designed for quick installation and maintenance.
Q4: What happens if the bracket is loose?
A: It may cause unstable spraying, uneven coverage, or nozzle misalignment.
Q5: How often should it be checked?
A: It is recommended to inspect it monthly during routine maintenance.
