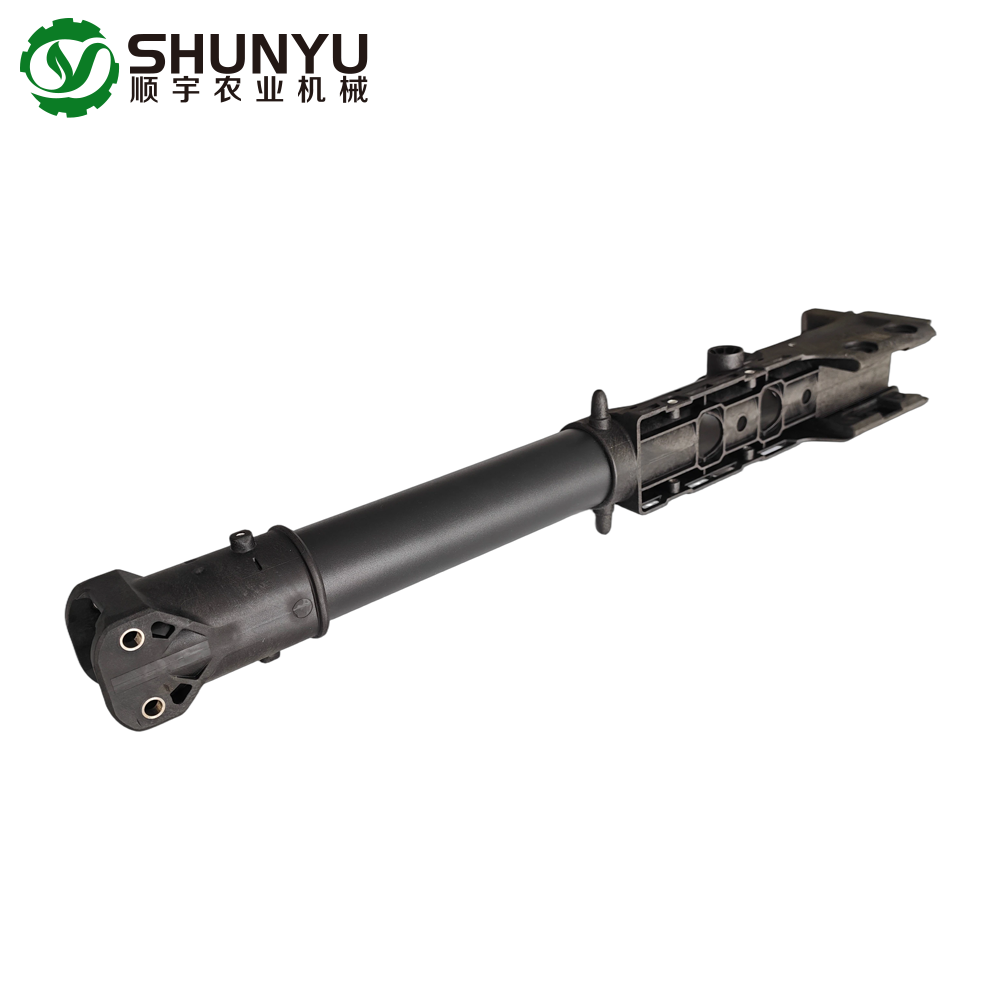

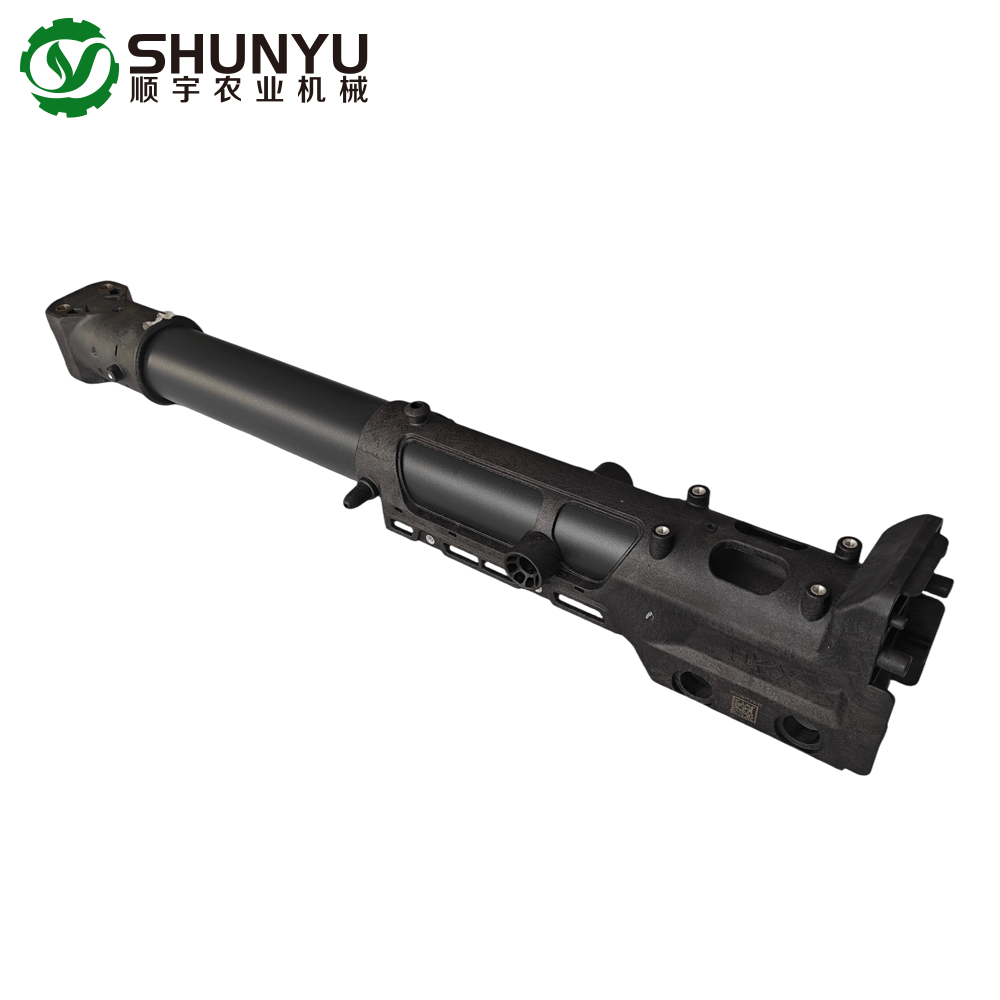

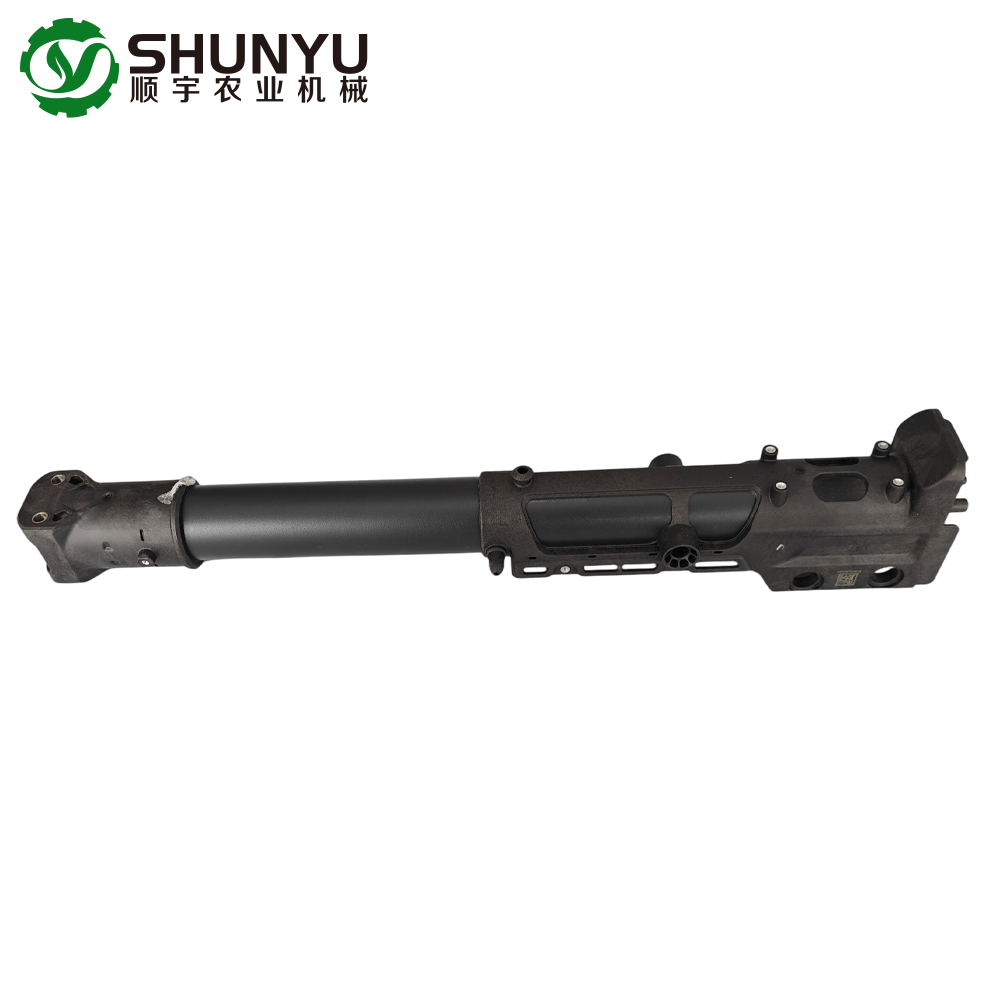

XAG P100 Pro Arm (Motor Side) 02-001-09632 | Drone Arm Assembly

The Arm (Motor Side) 02-001-09632 is a critical structural component for the XAG P100 Pro agricultural drone. It connects and supports the motor on the foldable arm, ensuring stable flight, efficient power transmission, and overall structural integrity.

Made from high-strength composite materials, this motor-side arm offers durability, impact resistance, and reliable performance in demanding agricultural environments.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Product Introduction

Key Features
  • <strong><span style="font-size:24px;">Motor Integration Design</span></strong>
    <strong><span style="font-size:24px;">Motor Integration Design</span></strong>
  • <strong><span style="font-size:24px;">High Structural Strength</span></strong>
    <strong><span style="font-size:24px;">High Structural Strength</span></strong>
  • <strong><span style="font-size:24px;">Durable &amp; Impact-Resistant</span></strong>
    <strong><span style="font-size:24px;">Durable &amp; Impact-Resistant</span></strong>

Technical Parameters


·Parameters


  • Product Name: Arm (Motor Side)

  • Part Number: 02-001-09632

  • Compatible Model: XAG P100 Pro

  • Category: Drone Arm / Structural Component

  • Function: Motor mounting and structural support

  • Material: Composite (carbon fiber & reinforced materials)

  • Installation: Direct replacement

  • Weight: Approx. 1 lb (≈0.45 kg)

  • Application: Agricultural spraying & spreading drone

集合图3


  • 无人机配件01


include：集合图3无人机配件02
1.Control
2.Charger
3.12000mAh Battery
4.Spraying 16L
5.Carton Packing

Product Uses

Application / Usage Scenarios

The Arm (Motor Side) 02-001-09632 is designed for use in the XAG P100 Pro agricultural drone and is ideal for:

  • Crop Spraying: Provides stable support for the motors during precise pesticide and nutrient application.

  • Fertilizer & Seed Spreading: Ensures arm stability while carrying payloads for field operations.

  • Drone Maintenance & Replacement: Used to replace worn, damaged, or broken motor-side arms.

  • Foldable Arm Operation: Supports safe folding/unfolding of the drone for transport and storage.

  • High-Intensity Agricultural Fields: Durable enough for frequent flights in rough or uneven terrain.

This component is essential for maintaining flight performance, operational safety, and overall drone longevity in agricultural applications.


Product Operate Guide

Usage Guide

  1. Check for cracks or deformation before installation

  2. Align with motor and arm base, then fix with original fasteners

  3. Ensure wiring and motor connections are properly secured

  4. Test stability before flight

  5. Perform regular inspections after heavy use

FAQ

Q1: What is the function of the motor side arm?
A: It supports the motor and forms part of the drone’s main structural frame.

Q2: Is this part original compatible?
A: Yes, it is designed specifically for XAG P100 Pro models.

Q3: Does it affect flight performance?
A: Yes, a damaged arm can lead to instability and unsafe flight conditions.

Q4: Is it easy to replace?
A: Yes, it is designed for direct replacement with standard tools.

Q5: When should it be replaced?
A: When cracks, deformation, or motor instability occurs.


Product Video
