Product Advantage

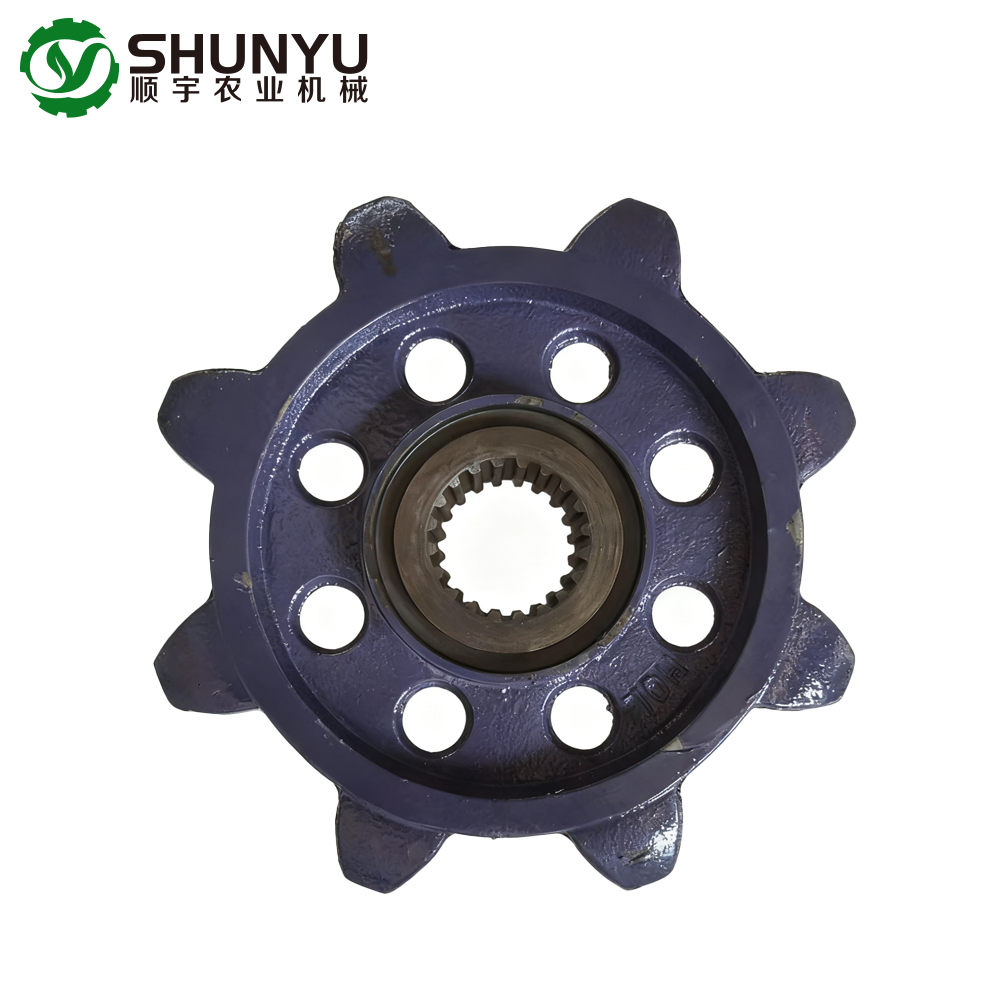

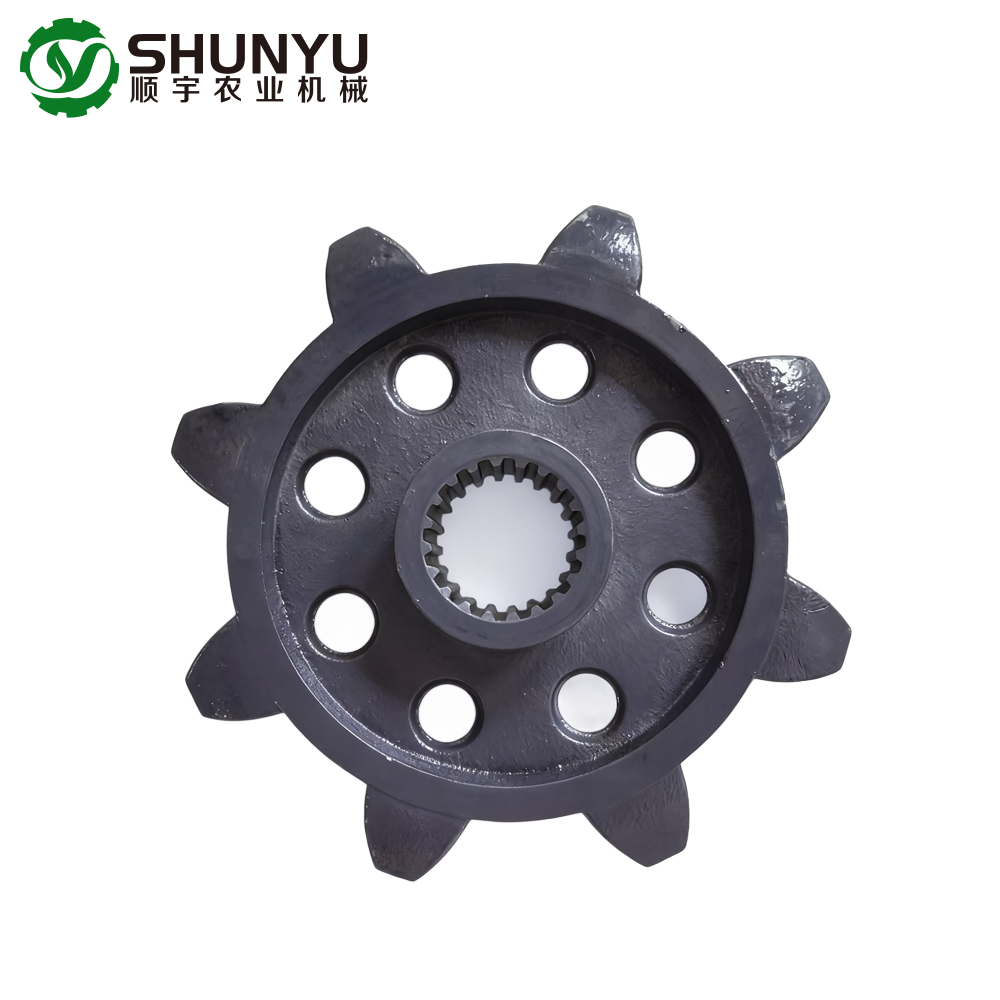

This drive sprocket is an important component that ensures the transmission of power from the gearbox to the chain system. If the sprocket is worn or the tooth surface is damaged, it will cause the chain to jump, break, and the transmission efficiency to decrease, affecting the efficiency of the machine operation
Technical Parameters
Drive Chain Wheel
| ITEMS | DESCRIPTION |
| Code | RV0240200075/RGV440220007 |
| Application | LOVOL AF108/RG108 series harvester |
Product Uses
In harvester operations, sprocket/chain systems are often used for:
|
|
|
Cutting table conveyor chain drive (such as conveying cut crops to the threshing unit) | Discharge/Unloading Chain Drive (Conveys threshed grain through the chain to the unloading port) | Some tracks or walking components assist in chain drive (depending on the model structure) |
Product Operate Guide
Usage and maintenance
1.Regularly lubricate the chain:
Maintaining good lubrication can reduce wear and noise. It is recommended to use lubricating grease containing molybdenum or anti-wear type.
2.Pre - and post homework checks:
Clean up mud, straw, and oil stains after each assignment to prevent foreign objects from accumulating between teeth and causing poor meshing.
3.Observe the wear condition:
When the tooth deformation tip or tooth root wear exceeds 25%, it should be replaced in a timely manner.
When the chain pitch elongation exceeds 3% of the original length, it should be replaced together with the sprocket.
⚠️ The chain and sprocket should be replaced as a set to prevent wear and tear caused by poor fit between old and new.
4.Avoid dry friction and overload:
If there is any jamming or abnormal noise during homework, the machine should be stopped immediately for inspection, and forced operation is not allowed
