Product Introduction
Technical Parameters

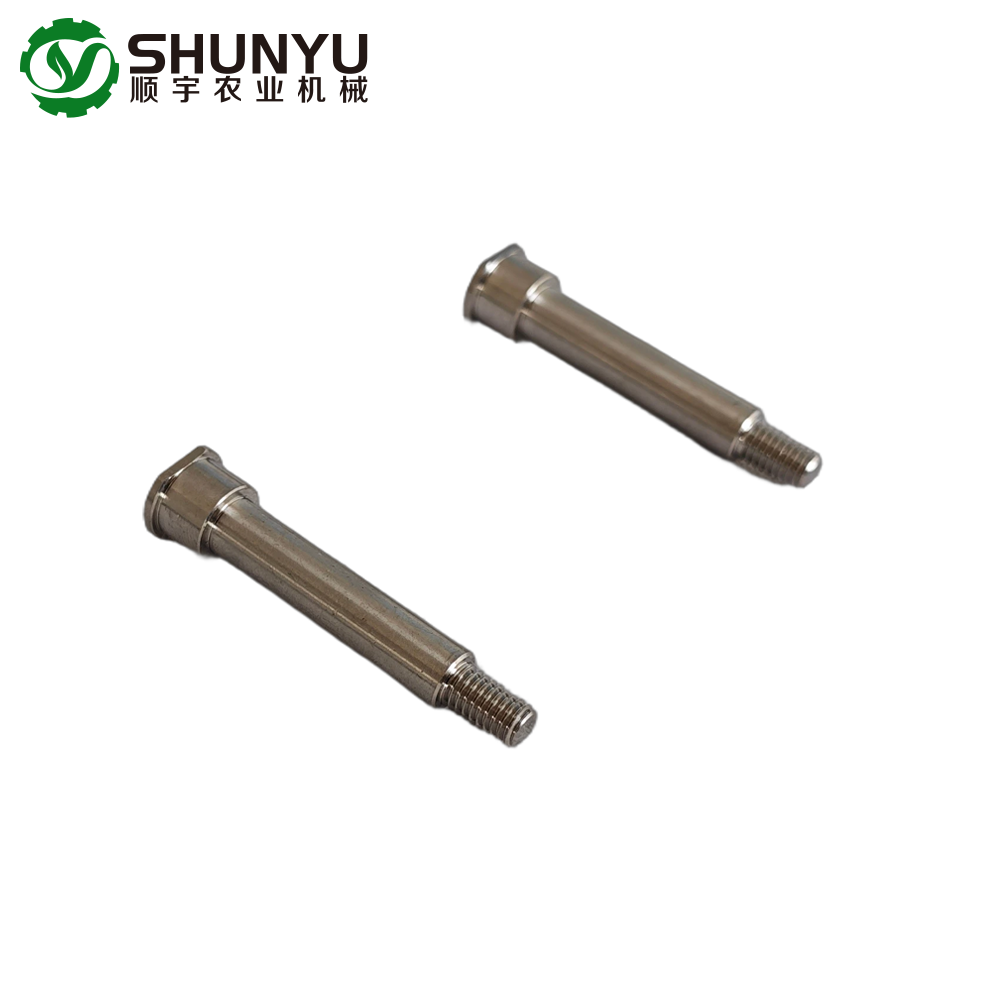

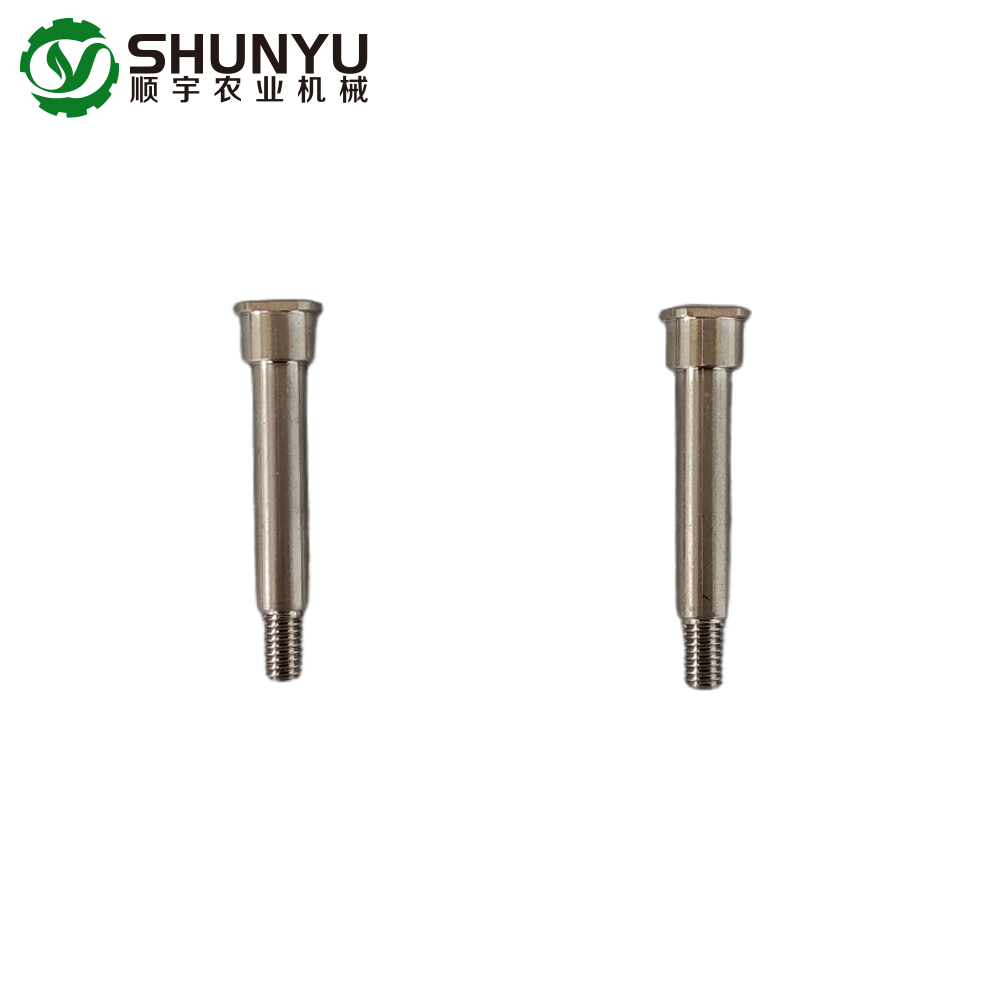

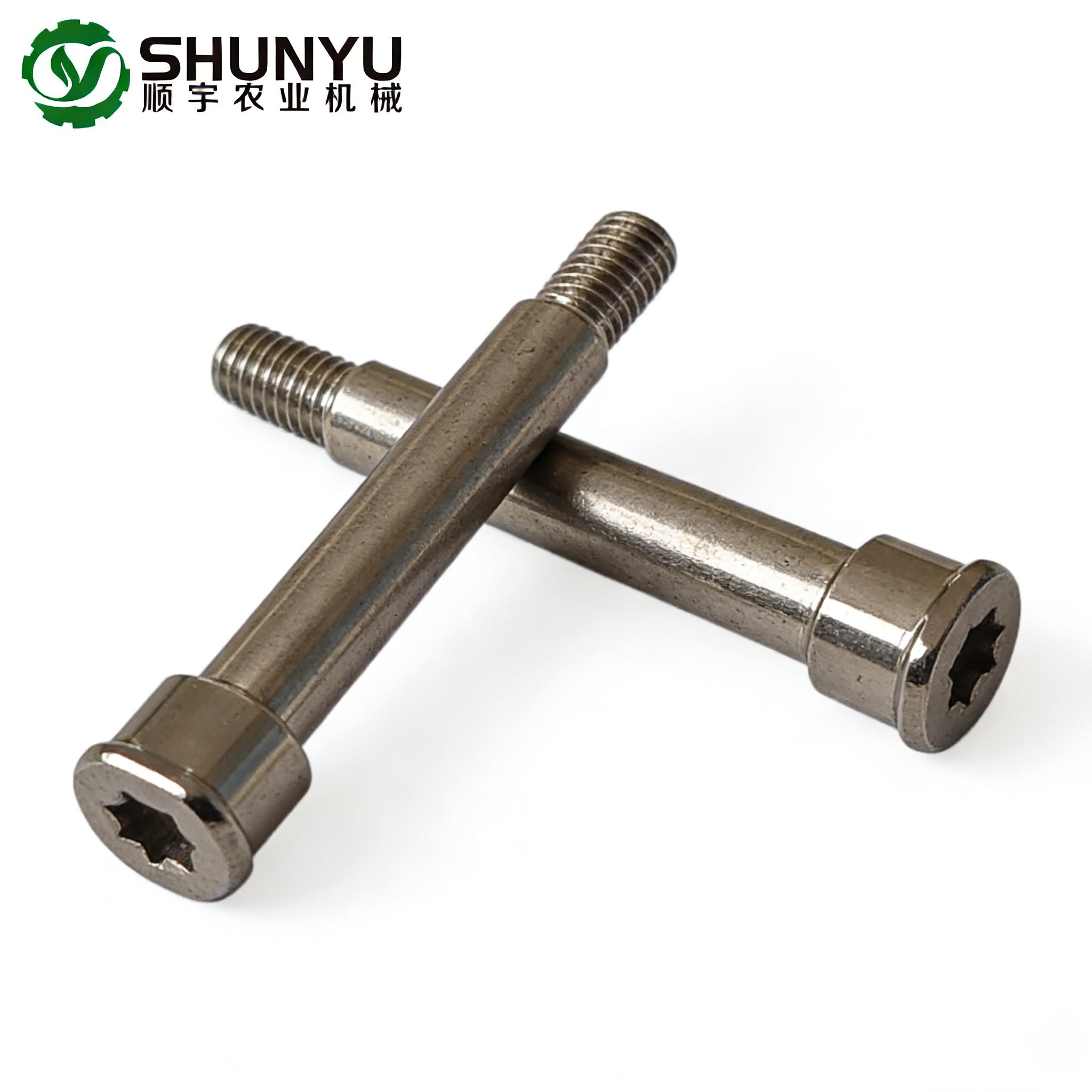

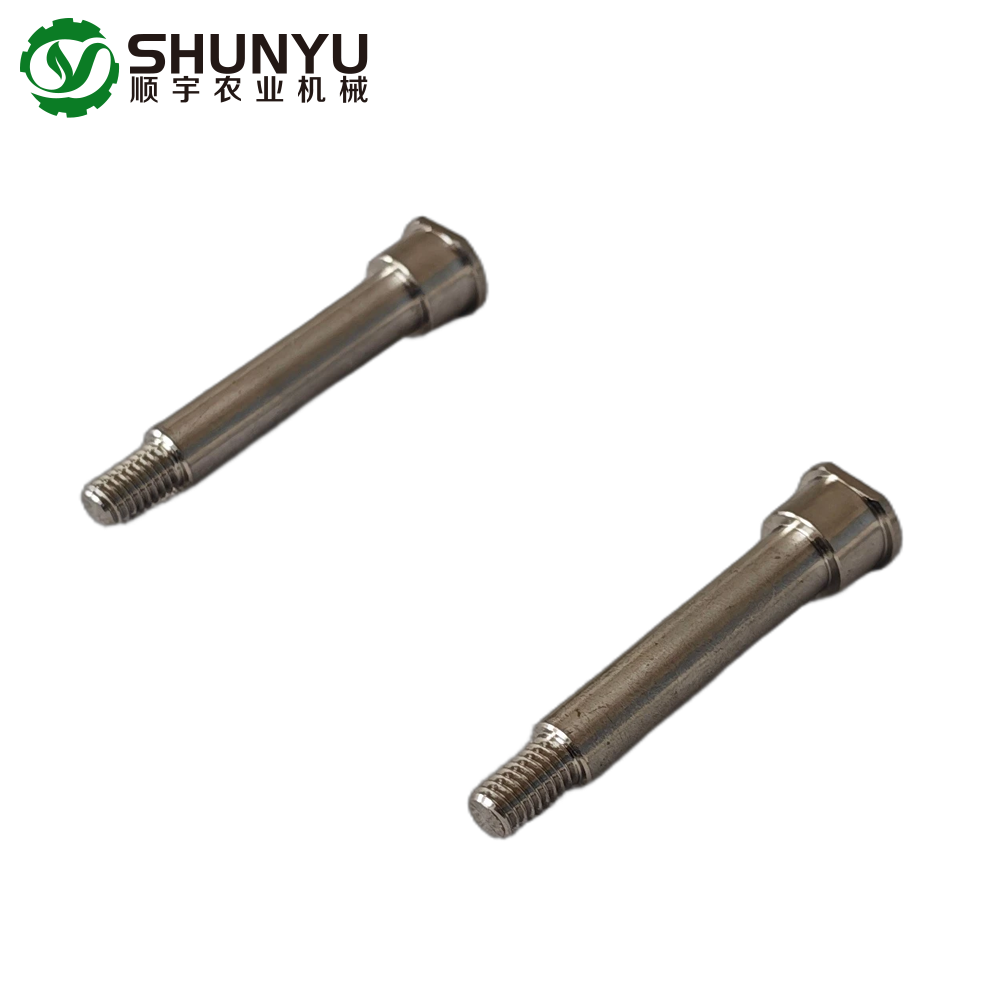

The Seesaw Bolt connects key pivot parts in the drone arm mechanism, allowing stable movement and reliable positioning of propulsion components. Designed for precision fit and durability, it helps maintain smooth operation of the aircraft during spraying or spreading missions.
Product Role:
The Seesaw Bolt is used to secure the pivot connection in the drone arm power system, working together with parts such as the seesaw holder and collar to maintain structural stability during flight operations.
| ·Specifications | |
| Parameter | Specification |
| Product Name | Seesaw Bolt |
| Compatible Drone | XAG P100 Pro Agricultural Drone |
| Part Number | 02-002-12103 |
| Component System | Arm Power System / Propulsion Structure |
| Material | High-strength metal alloy |
| Function | Pivot fixing bolt for seesaw mechanism |
| Installation Position | Propeller arm seesaw structure |
| Condition | New replacement spare part |
| include： |
| 1.Control |
| 2.Charger |
| 3.12000mAh Battery |
| 4.Spraying 16L |
| 5.Carton Packing |
Product Uses
Agricultural drone maintenance and repair
Replacement part for worn or damaged arm system bolts
Compatible with multiple arm power system modules of the P100 Pro drone.
Product Operate Guide
Power off the drone before replacing the bolt.
Use proper tools to secure the bolt with correct torque.
Inspect the seesaw holder and collar components during installation to ensure proper alignment.
Q1: What is the function of the seesaw bolt?
A: It secures the pivot structure in the drone arm assembly, ensuring stable movement and structural integrity.
Q2: Is it compatible with other XAG drones?
A: This part is primarily designed for the P100 Pro propulsion arm system.
Q3: When should it be replaced?
A: Replace the bolt if it becomes loose, worn, or damaged after long-term operation.
