Harvester rubber tracks and rubber drive belts are core wearable parts of your combine harvester. After harvest season ends, improper off-season storage is the top cause of premature rubber aging, surface cracking, permanent deformation and ozone damage. Many farmers find their tracks or belts cracked, hardened or out of shape when they restart next year — most of these failures come from poor winter storage, not field wear.
Follow this guide to protect your harvester rubber tracks and belts during idle months, preserve rubber elasticity, and maximize service life.
UV sunlight: Breaks down rubber molecular structure, causes surface crazing and dry rot
Ozone: Generated by electric motors, welders and transformers, creates invisible rubber cracks
Oil, fuel, solvent & fertilizer chemicals: Swell and degrade rubber compounds permanently
Continuous tension / heavy static pressure: Creates permanent set and shape distortion
Extreme temperature & freeze-thaw cycles: Hardens rubber and weakens tensile strength
Dampness & moisture: Triggers mold and rust on embedded metal cores
Do this before putting your harvester away.
Remove mud, crop residue, straw, dirt and gravel from rubber tracks and all drive belts. Use low-pressure water washing; avoid high-pressure jet cutting into rubber surface.
Wipe off engine oil, grease, herbicide or fertilizer liquid completely. Oil contamination will slowly destroy rubber even in storage.
Dry fully in shaded airflow. Never store wet rubber parts.
Visual inspection: Check for cracks, cuts, exposed steel cords, missing lugs or belt fraying. Mark damaged items and arrange replacement before next harvest, instead of storing failed parts.

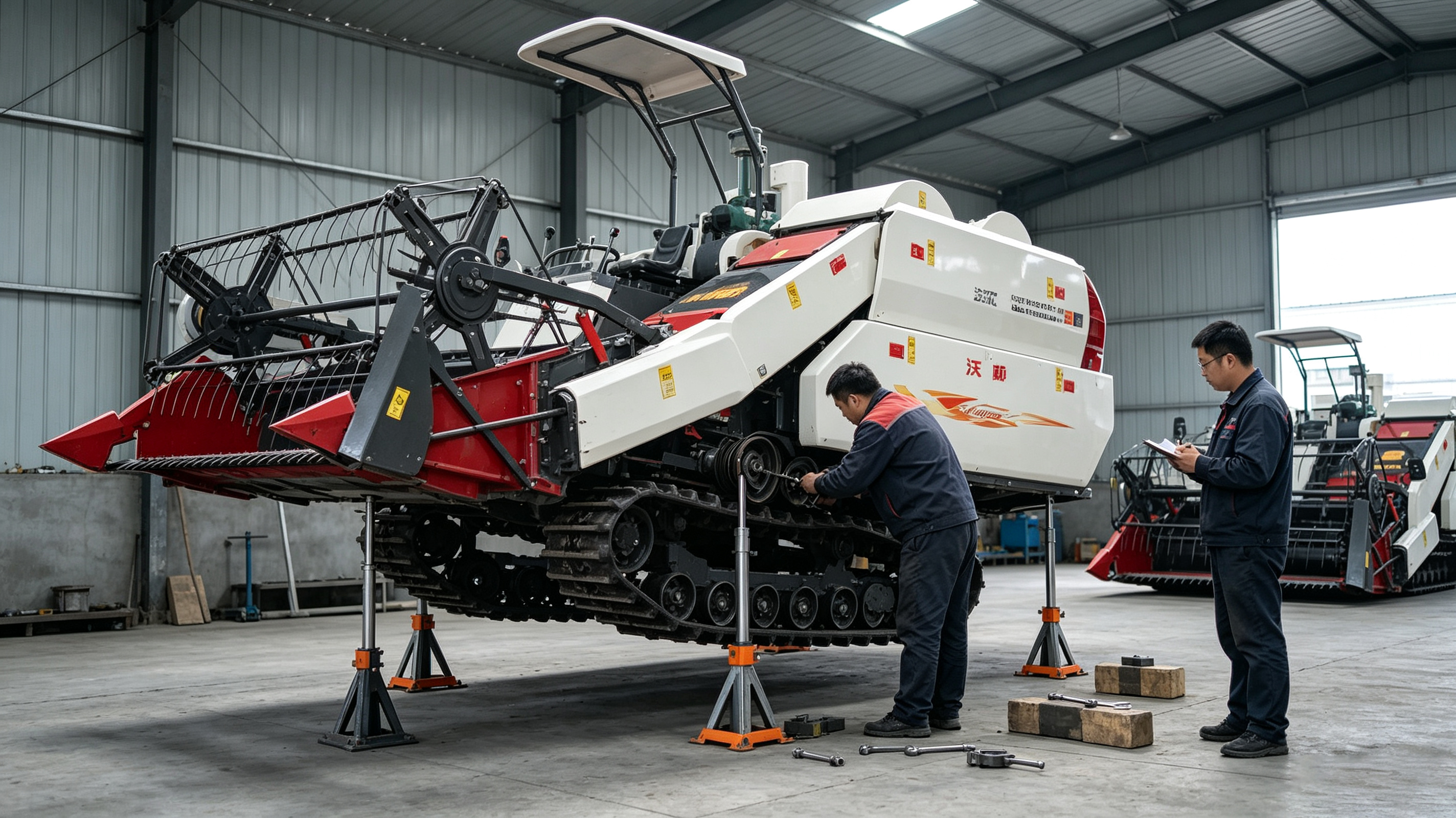

Lift the whole harvester with jack stands, raise the undercarriage so rubber tracks are completely off the ground. Remove all static load from track treads.
Loosen track tension to release stretching stress. Do NOT keep tracks tight for months.
Keep indoors, shaded, well ventilated. If outdoor storage is unavoidable, use opaque UV-resistant breathable tarpaulin. Do not use sealed plastic film which traps moisture.
Keep away from motors, welding equipment, fuel tanks and chemical storage zones.
Store vertically on sturdy racks or pallets. Avoid flat stacking for long periods, which causes flat spots.
Elevate off concrete floors with wooden pallets to stop ground moisture wicking up.
Maintain airflow between tracks; do not squeeze tightly.
Rotate track position every 2–3 months to prevent permanent deformation at contact points.
Wrap with UV-block breathable cover if exposed to ambient light.
Release all tension: Loosen tension pulleys. For long off-season storage, better to remove belts from pulleys entirely. Stretched belts left under tension will lose elasticity permanently.
Hang V-belts on large-diameter smooth mandrels / wall racks. Never hang on thin nails or sharp hooks which create stress cracks.
Coiled conveyor belts: Store horizontally on pallets, DO NOT fold. Rotate the roll every 3 months to avoid permanent flat areas.
Do not stack heavy items on top of belt rolls.
Keep belts clean, dry and separated from oil, chemicals and heat sources.
Temperature: 10°C ~ 25°C (50°F ~77°F). Avoid above 40°C or repeated freeze-thaw cycles
Relative Humidity: ≤70%, well ventilated
Light: Dark or low light; strictly avoid direct sunlight and strong UV lamps
Distance requirement: At least 1 meter away from heat sources, motors, ozone-generating equipment and farm chemicals
Every 2–3 months: Inspect surface for cracks, mold, sticky or hardening rubber
Rotate stored tracks and belt rolls to redistribute pressure points
Check covers and shed seals for water leakage
Keep storage area clean, no sharp stones or metal edges that can puncture rubber
Bring cold-stored rubber parts up to ambient temperature gradually before installation. Cold rubber is stiff and easy to crack under bending.
Recheck all surfaces for cracking, cord exposure or deformation.
Reset track tension and belt tension following harvester OEM specifications.
Test run with no load before field operation.
A: Not recommended. UV, rain, snow and freeze-thaw cycles greatly accelerate aging. If no indoor warehouse available, lift machine off ground and fully cover with UV-resistant breathable tarp.
A: No. Petroleum-based oils break rubber down. Use rubber-friendly protective conditioner only if recommended by manufacturer.
A: Under ideal indoor storage, unused rubber tracks and belts can retain good performance for multiple years. Poor storage can ruin a new set within one off-season.
Off-season storage is a low-cost, high-return maintenance task for your harvester rubber tracks and belts. A few hours of proper care at harvest end can save you from costly downtime and expensive replacement during busy planting and harvesting season.
