Product Advantage
Investing in reliable harvester components is crucial for maintaining continuous operation during the busy harvesting season. The FM WORLD 102 4LZ-6.0P Harvester Parts Conveyor Chain Assembly is engineered to deliver dependable performance under challenging agricultural conditions. By focusing on durability, stable operation, and user-friendly maintenance, this chain assembly provides significant value for agricultural professionals seeking efficient equipment solutions.
|
|
|
|
High strength and wear resistance suitable for complex agricultural environments such as mud, water, sand, and gravel. | Stable transportation Ensure smooth, non slip, and non accumulation of crops from the cutting table to the threshing drum. | Easy maintenance The chain is easy to disassemble and assemble, and can be replaced in a single section, reducing maintenance costs. | Strong adaptability The chain structure and length can be adjusted according to different models and crops |
Agricultural environments are notoriously harsh, often exposing machinery to mud, water, sand, and gravel. The conveyor chain assembly is manufactured to offer high strength and exceptional wear resistance. This durable capability ensures that the chain can withstand the constant friction and heavy loads associated with continuous harvesting. By resisting premature wear and tear, the chain maintains its structural integrity over extended periods, significantly reducing the risk of sudden breakdowns in the field. For purchasing managers and end-users, this means a longer service life and a more dependable return on investment, even in the most demanding farming conditions.
The primary function of the conveyor chain is to move crops efficiently from the cutting table to the threshing drum. This product guarantees stable transportation by ensuring a smooth, non-slip process that prevents the accumulation or jamming of harvested materials. A consistent flow of crops is essential for maximizing the throughput of the harvester and preventing blockages that can halt operations. The carefully designed conveying mechanism minimizes crop damage while maintaining a steady feed rate, which directly enhances the overall efficiency of the harvesting process. This stability is a critical factor for operators who need to maximize their daily yield without interruptions.
Downtime during the harvest season can lead to significant financial losses. To address this, the conveyor chain assembly is designed for easy maintenance. The chain structure allows for straightforward disassembly and assembly, making it highly convenient for field repairs. One of its standout features is the ability to replace individual chain sections rather than the entire assembly. If a specific part becomes damaged, operators can quickly swap out the affected section, drastically reducing both maintenance time and replacement costs. This user-friendly approach ensures that the harvester can get back to work swiftly, minimizing disruptions to the agricultural schedule.
Different harvesting operations require flexible solutions. This conveyor chain assembly boasts strong adaptability, allowing its structure and length to be adjusted according to various harvester models and different types of crops. Whether you are harvesting rice, wheat, or other grains, the chain can be tailored to meet the specific requirements of the task at hand. This versatility makes it an ideal choice for agricultural equipment suppliers and farmers who operate mixed fleets or work with multiple crop varieties. By offering a customizable fit, the chain ensures optimal performance across a wide range of agricultural applications, simplifying inventory management for distributors.
Technical Parameters

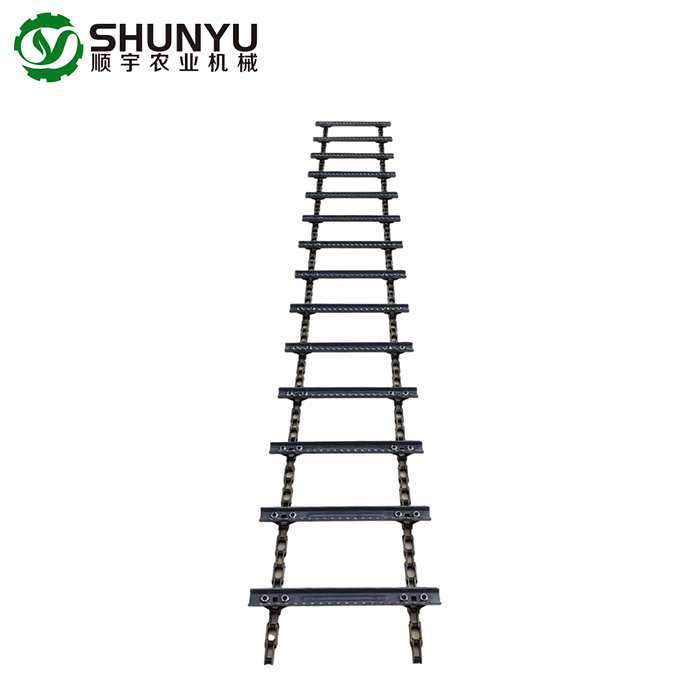

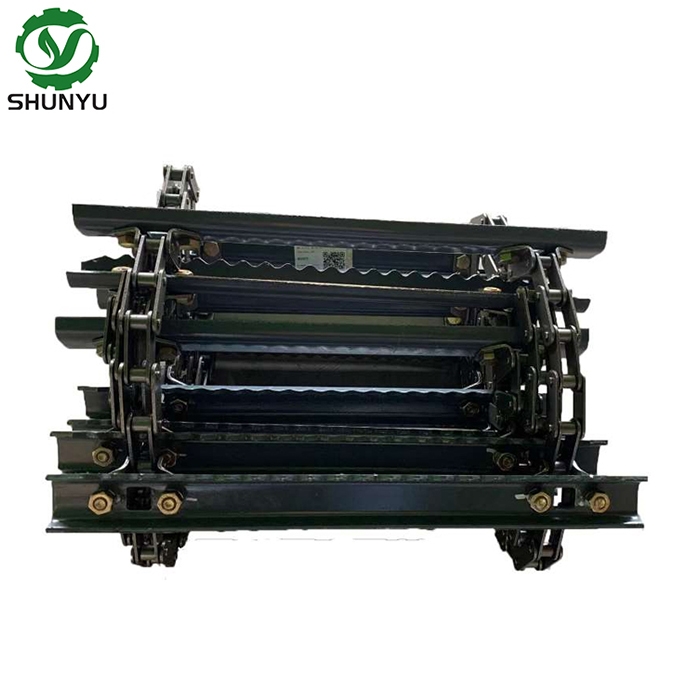

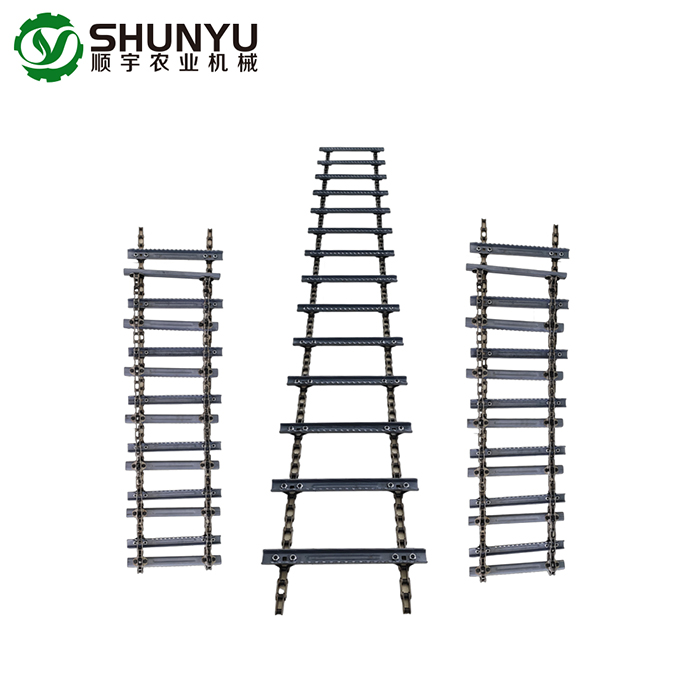

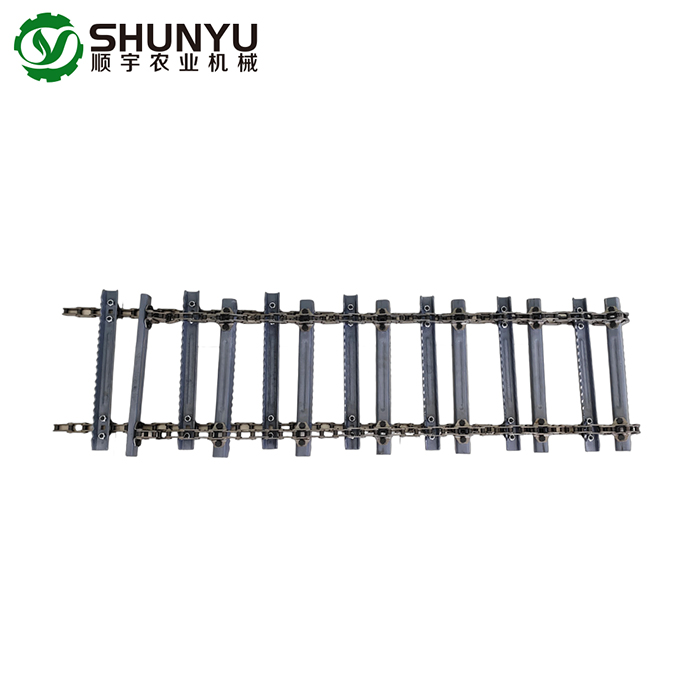

Conveyor Chain Assy
The following technical parameters provide precise specification data to assist in verifying the correct replacement part model for your harvester equipment.
| ITEMS | DESCRIPTION |
| Code | W3.5H-01-02-09-00 |
| Size(mm) | 3180*455 |
| Plates | 14 |
| Weight(kg) | 27.1 |
Product Uses
The FM WORLD 102 4LZ-6.0P Harvester Parts Conveyor Chain Assembly (W3.5-01A-02-09-00) is specifically designed for integration into grain combine harvesters. As a critical material transfer component, it plays a vital role in the continuous operation of agricultural machinery during peak harvesting seasons, directly influencing both the speed and the outcome of the harvesting process.
This conveyor chain assembly is widely utilized in the harvesting of essential agricultural crops, including rice, wheat, corn, soybeans, and other similar grains. Different crops present varying moisture levels, stalk densities, and field conditions. For instance, rice harvesting often occurs in muddy paddy fields with high humidity, while wheat and corn are typically harvested in dry, dusty environments. The design of this chain assembly accommodates these diverse agricultural settings, ensuring reliable crop transfer regardless of the specific crop characteristics or the environmental challenges present in the field.
Within the combine harvester, the primary function of this chain assembly is to transport the cut crops from the header directly to the threshing mechanism. A consistent and stable feeding process is essential for maintaining high harvesting efficiency. By preventing material accumulation and reducing the risk of internal blockages, this component supports continuous field operations. For agricultural machinery maintenance teams and equipment operators, selecting a dependable conveyor chain helps minimize unexpected downtime, which is an absolute priority when working under tight, weather-dependent seasonal harvesting windows.
Beyond operational speed, the overall quality of the harvest relies heavily on the steady movement of crops through the machine. Uneven or interrupted feeding can lead to incomplete threshing, increased grain damage, or higher grain loss rates. This conveyor chain assembly ensures that crops are delivered at a controlled and uniform rate. This steady flow supports the optimal performance of the harvester's internal mechanisms, contributing to a more effective yield recovery and cleaner grain output.
For agricultural spare parts distributors, equipment fleets, and repair centers, sourcing the correct conveyor chain assembly provides a reliable solution for FM WORLD 102 harvester maintenance. Ensuring direct compatibility with the 4LZ-6.0P model reduces procurement risks and guarantees that end-users can quickly restore their equipment to full working condition without extensive modifications. Furthermore, its ability to handle multiple crop types means this component addresses a wide range of harvesting demands, making it a versatile and necessary addition to any agricultural machinery parts inventory.
Product Operate Guide
Understanding the physical structure and component functions of the FM WORLD 102 4LZ-6.0P Harvester Parts Conveyor W3.5-01A-02-09-00 Chain Assy is essential for ensuring proper equipment operation, minimizing downtime, and planning routine maintenance. This conveyor chain assembly is engineered with precision components designed to work together, providing reliable crop feeding under demanding agricultural conditions. Below is a detailed breakdown of its core structural elements.
The chain body serves as the foundational component of the conveyor assembly, bearing the primary mechanical load during crop harvesting. It is manufactured from high-strength alloy steel, a material chosen specifically for its reliable durability in harsh field environments. To further enhance its mechanical properties, the chain undergoes heat treatment technology. This process significantly improves its wear-resistant and tensile-resistant characteristics. For agricultural machinery operators and procurement teams, this means the chain can maintain stable operation under high-load conditions and endure long-term, continuous harvesting tasks without premature stretching, deformation, or breakage.
Securely fixed onto the chain body, the conveyor board is the direct contact point for pushing and transporting harvested crops into the threshing system. Depending on the specific harvesting requirements, these boards are available in various structural designs, including the flat plate type and the rake tooth type. This structural versatility is crucial for meeting the distinct transportation needs of different crops, such as rice, wheat, and corn. The carefully designed shape and spacing of the conveyor boards ensure a continuous, even flow of crop material, preventing accumulation and reducing the risk of feeding blockages inside the harvester.
The interaction between the chain wheel and the tensioning device is vital for the dynamic stability of the conveyor system. The chain wheel is responsible for driving the chain to circulate smoothly, transferring power effectively from the harvester's engine to the feeding mechanism. Meanwhile, the tensioning device is utilized to accurately adjust the tightness of the chain. Maintaining the correct tension is critical; it ensures smooth crop transportation while actively preventing chain detachment or skipping during sudden load changes. This adjustable mechanism allows maintenance personnel to easily correct chain slack caused by normal wear, thereby extending the service life of the entire assembly.
To guarantee that the conveyor chain operates exactly as intended, the system is equipped with a durable protective plate and guide groove. These components are specifically designed to limit the running trajectory of the conveyor chain, keeping it aligned and preventing lateral movement. By maintaining a strict operational path, the guide groove significantly reduces unnecessary friction and wear between the moving chain and the harvester chassis. Additionally, the protective plate shields the internal mechanisms from debris buildup, effectively reducing the likelihood of operational blockage and protecting the chain from external physical damage.
