Genuine World Harvester Knife Guard – Superior Cutting Performance

World harvester genuine parts are built for heavy-duty farming. Among them, the World harvester knife guard is a critical component installed at the front of the header. It works together with the moving blades to cut crops while protecting the knife system from rocks and hard objects.

The World harvester knife guard for the Ruilong series is available in 2-prong and 3-prong versions, made from high-strength forged steel with a heat-treated surface for maximum wear and impact resistance

A well-designed World harvester knife guard ensures smooth blade movement, clean cutting, and reduced crop clogging.

Why Replace Your World Harvester Knife Guard Regularly?

The World harvester knife guard is a wear-prone part. When the guard tips break or become severely worn, it must be replaced immediately – otherwise,cutting jams and feeding problems will occur. After installing a new World harvester knife guard, all stationary blades must lie in the same plane, and proper clearance must be checked for smooth operation-27-

Introduction to all types of blade protectors for World harvester accessories

The blade protector is a key component of the harvester cutting system, responsible for important functions such as fixing the blade, protecting the blade, and splitting the straw. There are many types of blade protectors for World harvester accessories on the market. In order to facilitate users' correct selection, the following is a classification introduction from several dimensions.

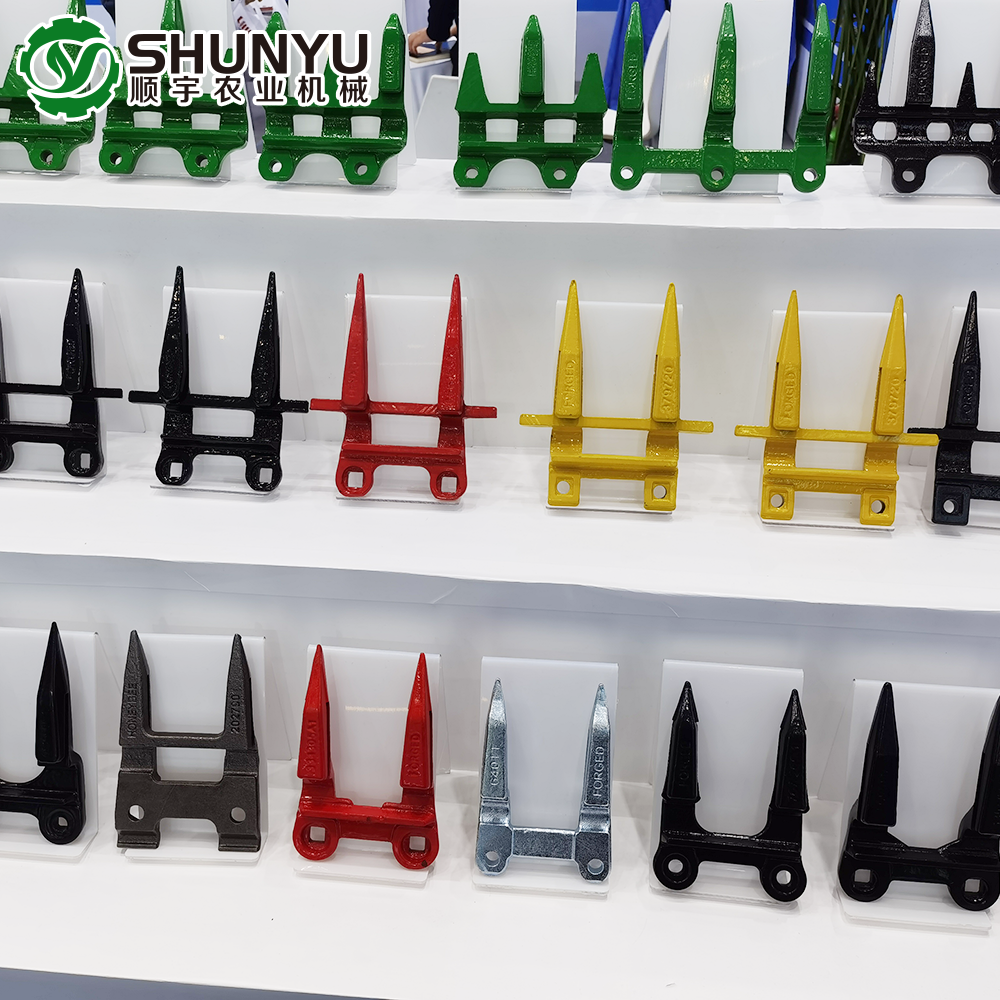

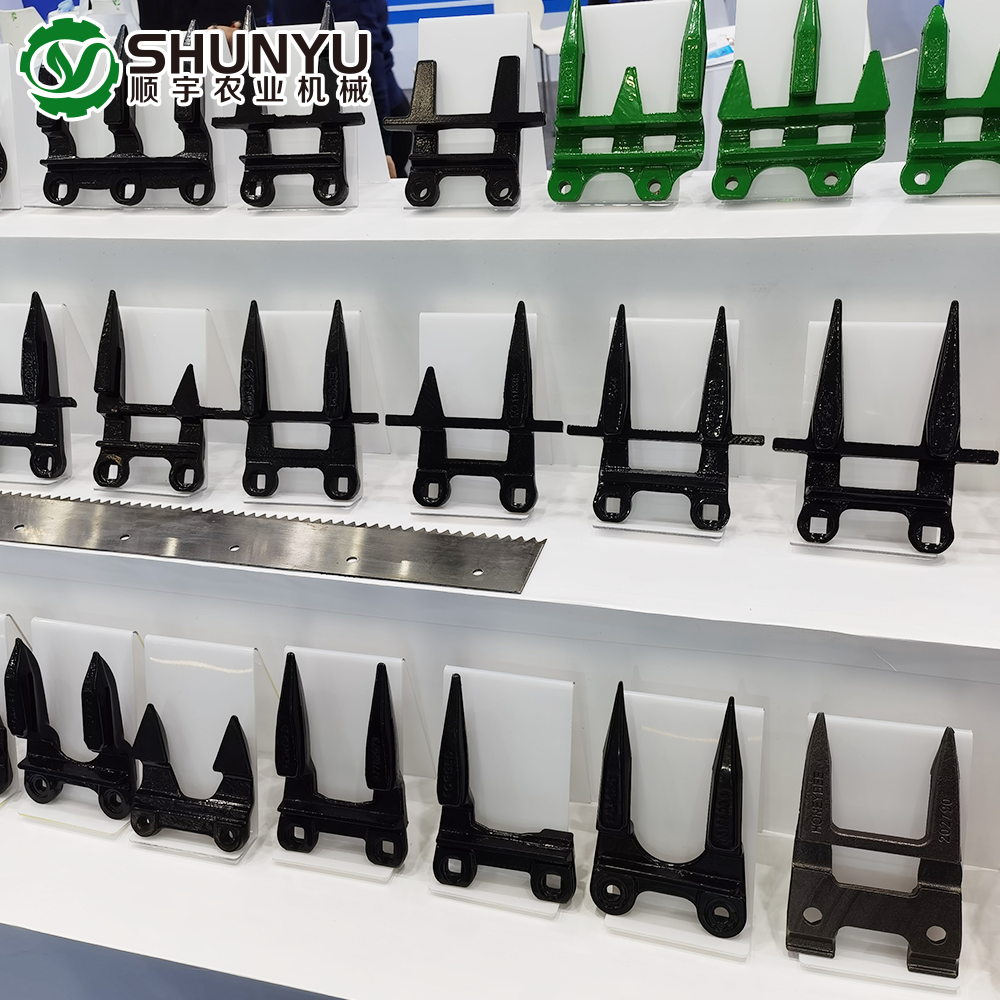

1. By Tooth Count – Two‑Prong vs. Three‑Prong

The most common way to classify a World harvester knife guard is by the number of prongs (teeth).

• Two‑prong knife guard – Used on most World Ruilong harvesters for rice and wheat. It provides a clean cutting gap, reduces clogging, and is available in standard and reinforced versions. The reinforced type is thicker and more wear‑resistant for rocky fields.

• Three‑prong knife guard – Designed for dense crops like brush grass or semi‑woody plants. It delivers finer cutting but should not be used on oversized stalks. Many World Ruilong models can accept a three‑prong World harvester knife guard as an option.

Choose based on your crop type and field conditions.

. By Manufacturing Process – Casting vs. Stamping vs. Forging

The production method directly affects the strength and lifespan of a World harvester knife guard.

• Cast knife guard – Made of malleable cast iron or cast steel. Low cost but relatively brittle; prone to breakage and crop leakage.

• Stamped knife guard – Formed from steel plate. Lighter than cast types, with sharp stationary blades and reliable fastening. Suitable for most wheat/rice harvesters.

• Forged knife guard – The premium choice. Made from 45# steel or similar. Offers superior mechanical strength, longer service life, and better cutting accuracy. World heavy‑duty knife guards are mostly forged.

For high‑intensity farming, a forged World harvester knife guard is the best investment.

3. By Material – Steel, Ductile Iron, and Alloys

Material selection determines how long a World harvester knife guard can resist wear and impact.

• Malleable cast iron – Low cost, for light‑duty use.

• 45# steel (precision cast steel) – Heat‑treated edges and painted surface; sharp and durable.

• 45# forged steel – High strength and toughness for rocky or hard fields.

• 65Mn steel – Excellent wear resistance and toughness; widely used in agricultural blades.

• Ductile (nodular) cast iron – A balanced option between cost and strength.

Always match the material to your typical working environment. For stony or abrasive conditions, choose a World harvester knife guard made of 45# forged steel or 65Mn.
